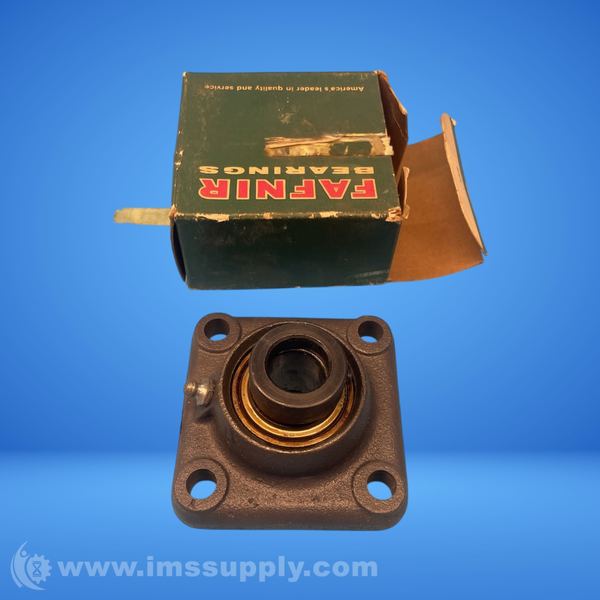

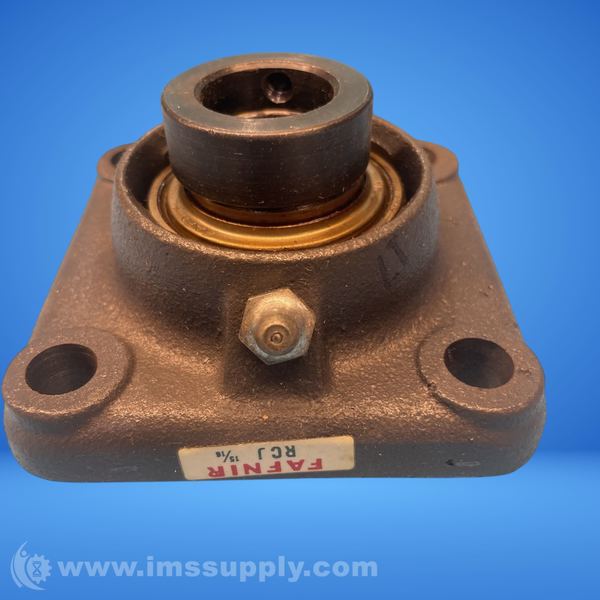

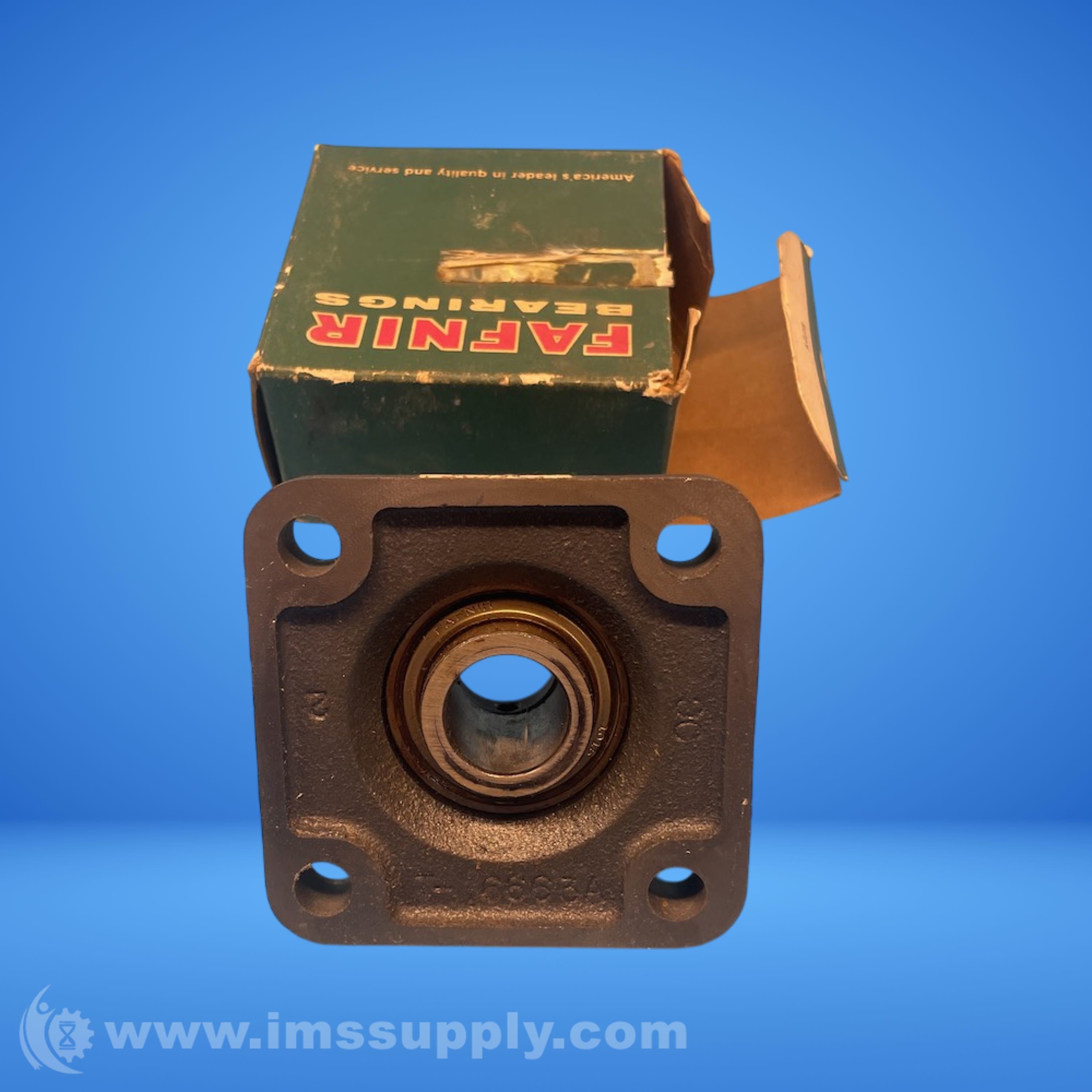

FAFNIR RCJ 15/16" FLANGE MOUNT BALL BEARING UNIT
Quick Overview
Manufactured By: FAFNIR BEARING
Manufacturer Part Number: RCJ 15/16
IMS Product Code: 2149120
Packaging: Sold Individually
Description:
Fafnir RCJ 15/16" Flange Mount Ball Bearing Unit
Four-Bolt Flange Ball Bearing Unit - 15/16 in Bore, 4-Bolt Flange, Eccentric Collar Locking, Cast Iron Housing Material, Non-Expansion Bearing (Fixed), Standard Duty, Contact Seal Seal
Specifications
- Shaft Size d: 15/16 in
- Seal Type: Contact Seal
- Housing Construction: Four-Bolt Square Flange
- Total Length L: 95.2 mm 3.748 in
- Housing Width A: 27.9 mm 1.098 in
- Flange Thickness A1: 12.7 mm 0.5 in
- Bolt Hole Spacing: 69.8 mm 2.748 in
- Bolt Hole Size N: 10 mm 0.394 in
- Center of Bearing from Housing End A2: 19.6 mm 0.772 in
- Dimension B1: 44.4 mm 1.748 in
- Dimension S1: 26.9 mm 1.059 in
- Dimension D: 65.1 mm 2.563 in
- Dimension E: 46.6 mm 1.835 in
- Dimension d1: 38.1 mm 1.5 in
- Bolt Size: M10
- Static Load Rating: 7800 N 1750 lbf
- Dynamic Load Rating: 15500 N 3490 lbf
- Product Type: Flange-Mount Ball Bearing Units
- Bore Diameter: 15/16 in
- Housing Material: Cast Iron
- Duty Type: Standard Duty
- Bolt Center To Center Length: 2.7500 in
- Bolt Circle Diameter: 3.9060 in
- Locking Device: Eccentric Collar
- Expansion Type: Non-Expansion Bearing (Fixed)
- Lubrication Type: Relubricatable
- Bore Type: Straight
- Radial Dynamic Load Capacity: 3550 lbf
- Radial Static Load Capacity: 1730 lbf
- Length Through Bore: 46.6 mm
- Finish Coating: Uncoated
- Max Rpm: 5440 rpm
- Standards Met: FDA Compliant, USDA Compliant
- Weight: 2.07 lbs
- Type Of Bearing: Ball
- Mounting Type: 4-Bolt Flange
- Overall Length Diameter: 3.7500 in
- Overall Depth: 1.834 in
- Overall Height: 1.834 in
- Bearing Material: Steel
- Dynamic Load: 3490 lb
- Static Load: 1760 lb
- Maximum RPM: 5440 rpm
- Operating Temperature: -30 to 275 deg F
- Coating: Uncoated

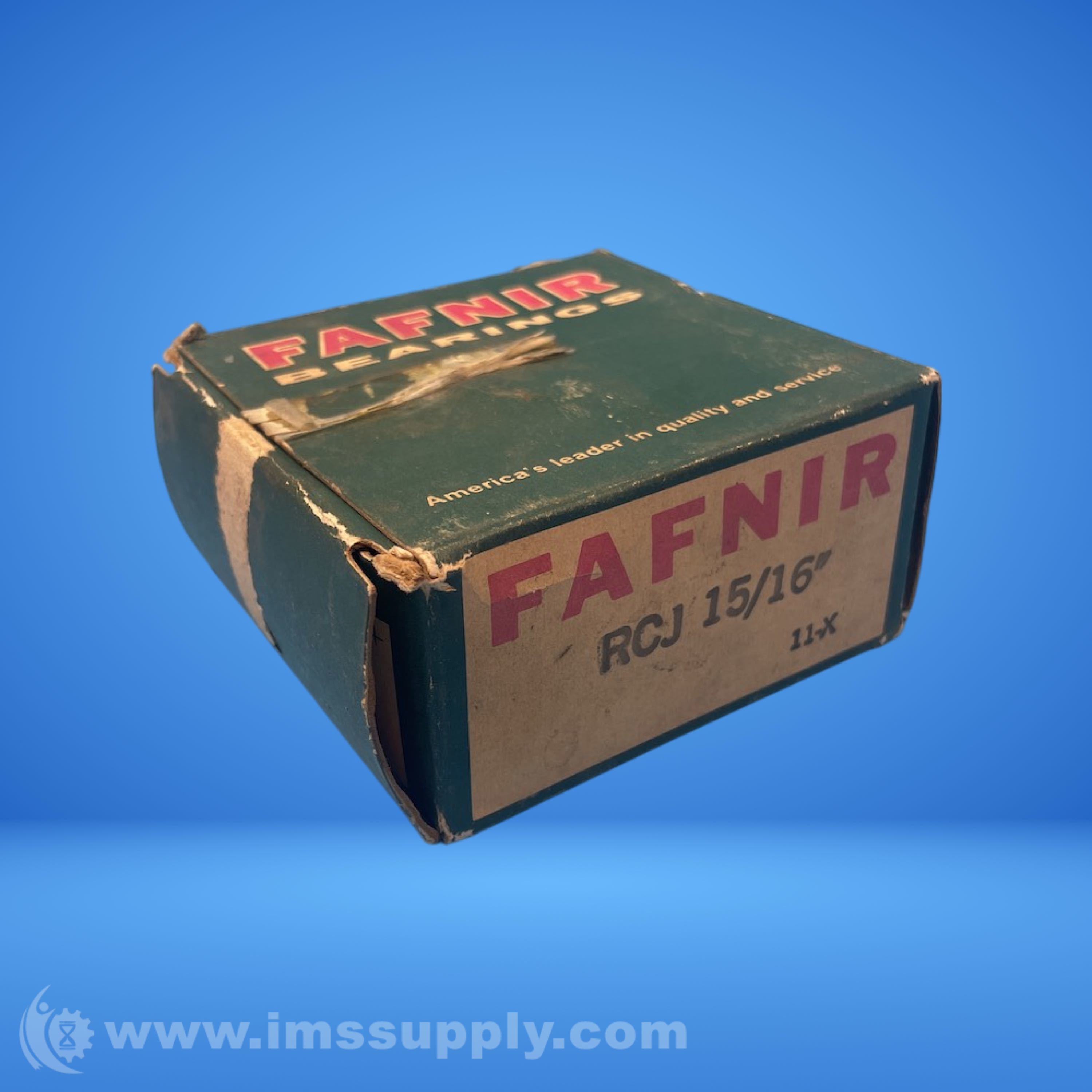

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
