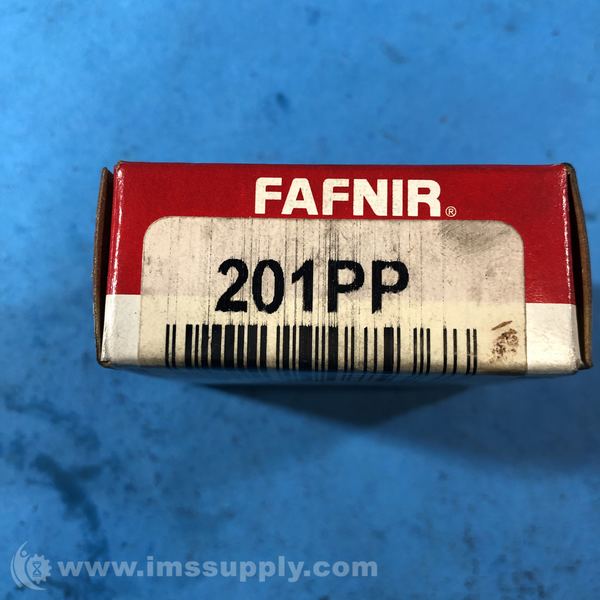

FAFNIR 201PP DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: FAFNIR
Manufacturer Part Number: 201PP
IMS Product Code: 1924454
Packaging: Sold Individually
Description:
Fafnir 201PP Deep Groove Ball Bearing
Deep Groove Ball Bearing - Straight Bore, 12 mm ID, 32 mm OD, 10 mm Width, Double Sealed, Without Snap Ring
Specifications
- Bore Type: Straight
- Bore Diameter: 12 mm
- Outside Diameter: 32 mm
- Overall Width: 10 mm
- Closure Type: Double Sealed
- Row Type: Single Row Non-Fill Slot
- Snap Ring Included: Without Snap Ring
- Internal Clearance: P
- Max Operating Temperature: 120 degrees C
- Precision Rating: Not Rated
- Finish Coating: Uncoated
- Bearing Material: Steel
- Cage Material: Steel
- Inner Ring Width: 0.394 in
- Fillet Radius: 0.024 in
- Max Rpm: 14320 rpm
- Series: 200
- Radial Dynamic Load Capacity: 1700 lbf
- Radial Static Load Capacity: 690 lbf
- Weight: 0.08 lbs
- Type Of Bearing: Ball Bearing
- Max Operating RPM (grease): 25000 RPM
- Max Operating RPM (oil): 25000 RPM
- Outer Diameter Type: Cylindrical
- Precision Class: ABEC1
- Relubricatable: No
- Rolling Element: Ball
- Min Operating Temperature: -50 degrees C
- Retainer Material: Cold Rolled Steel
- d - Bore: 12 mm
- D - Outer Diameter: 32 mm
- Bearing Width: 10 mm
- Ce - Dynamic Radial Rating: 7550 N
- C0 - Static Radial Rating: 3050 N
- Limiting Speed (Grease): 13636 rpm
- Limiting Speed (Oil): 15909 rpm
- R - Inner Ring "To Clear" Radius: 0.60 mm
- r - Outer Ring "To Clear" Radius: 0.6 mm
- da - Inner Ring Backing Diameter: 14.73 mm
- Da - Outer Ring Backing Diameter: 26.92 mm
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 2 hours and 6 minutes.
