FAFNIR 206KD BALL BEARING
Quick Overview
Manufactured By: FAFNIR
Manufacturer Part Number: 206KD
IMS Product Code: 1838629
Packaging: Sold Individually
Description:

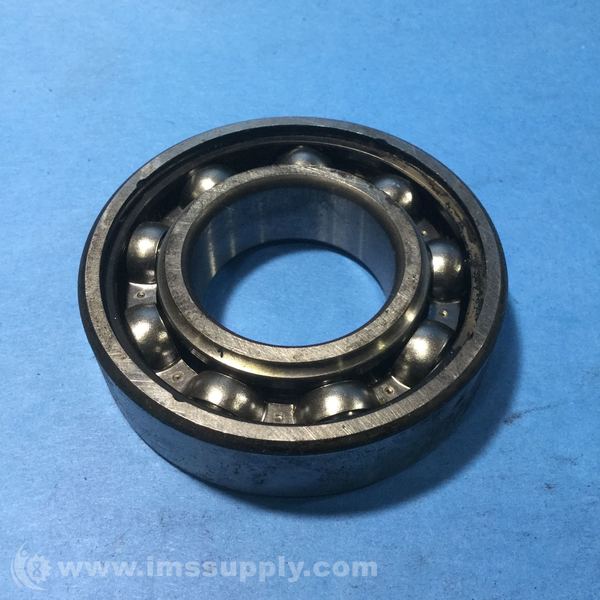

Fafnir 206KD Ball Bearing
Single row radial ball bearing with straight bore, 30 mm ID, 62 mm OD, 16 mm width, single shielded, without snap ring, made of steel.
Specifications
- Bore Type: Straight
- Bore Diameter: 30 mm
- Outside Diameter: 62 mm
- Overall Width: 16 mm
- Closure Type: Single Shielded
- Row Type: Single Row Non-Fill Slot
- Snap Ring Included: Without Snap Ring
- Internal Clearance: P
- Max Operating Temperature: 120 degrees C
- Precision Rating: Not Rated
- Finish Coating: Uncoated
- Bearing Material: Steel
- Cage Material: Steel
- Radial Series: 200K
- Radial Dynamic Load Capacity: 5000 lbf
- Radial Static Load Capacity: 2550 lbf
- Weight: 0.43 lbs
- Type Of Bearing: Ball Bearing
- Maximum Operating RPM: 10000 RPM (grease), 11666.667 RPM (oil)
- Outer Diameter Type: Cylindrical
- Precision Class: ABEC1
- Relubricatable: No
- Rolling Element: Ball
- Min Operating Temperature: -50 degrees C
- Self Aligning: No
- Retainer Material: Cold Rolled Steel
