FAFNIR 208K DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: FAFNIR
Manufacturer Part Number: 208K
IMS Product Code: 1924600
Packaging: Sold Individually
Description:

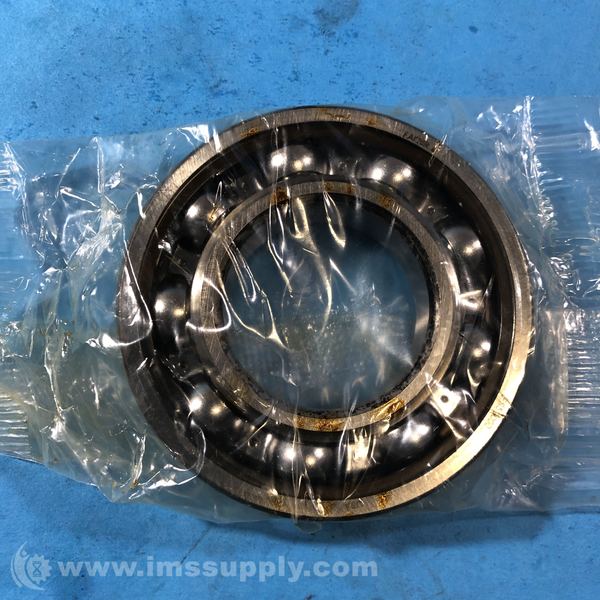

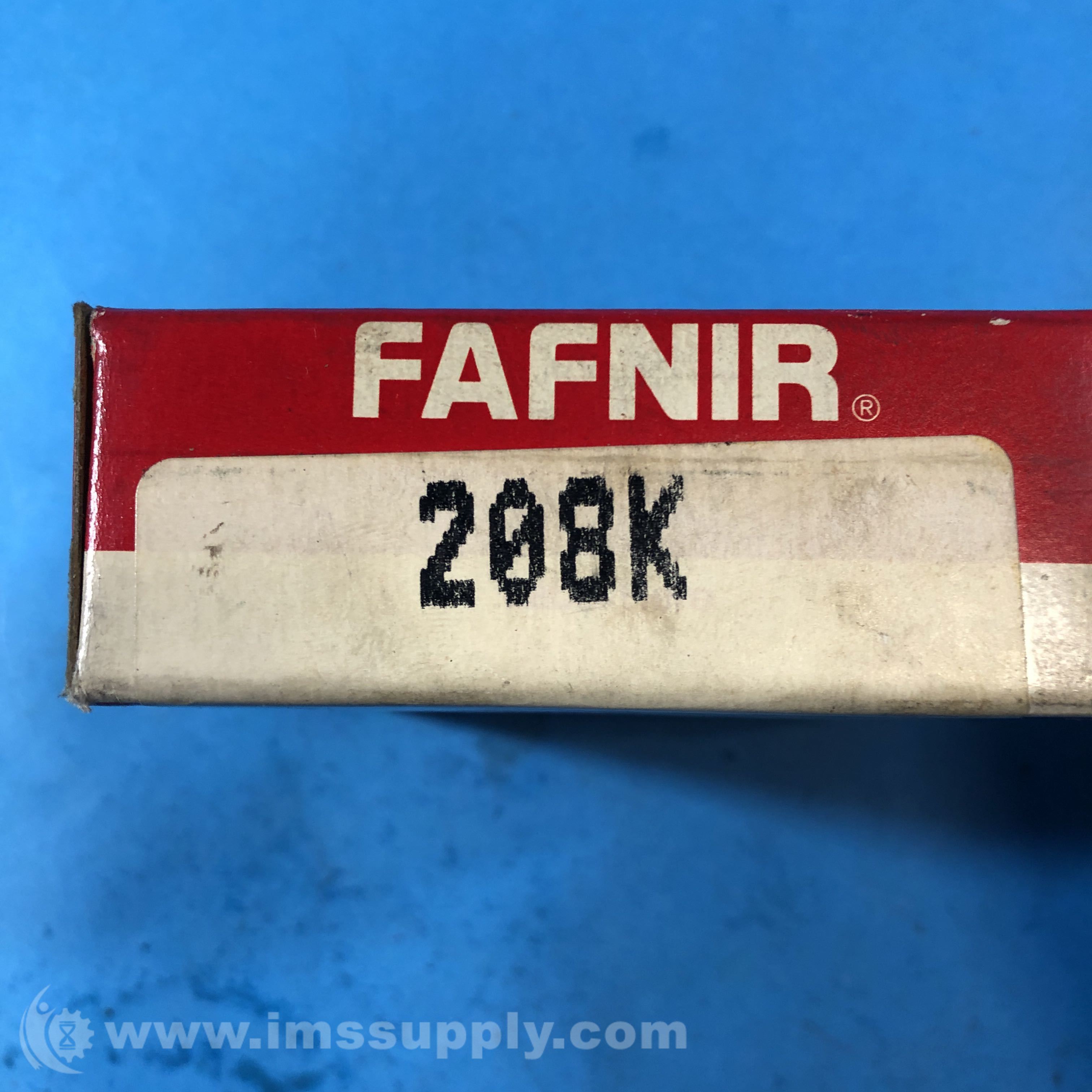

Fafnir 208K Deep Groove Ball Bearing
Single row deep groove ball bearing, straight bore, 40 mm ID, 80 mm OD, 18 mm width, open, without snap ring, steel bearing and cage material
Specifications
- Bore Type: Straight
- Bore Diameter: 40 mm
- Outside Diameter: 80 mm
- Overall Width: 18 mm
- Closure Type: Open
- Row Type: Single Row Non-Fill Slot
- Snap Ring Included: Without Snap Ring
- Internal Clearance: P
- Max Operating Temperature: 120 degrees C
- Precision Rating: Not Rated
- Seal Type: Open
- Finish Coating: Uncoated
- Bearing Material: Steel
- Cage Material: Steel
- Inner Ring Width: 0.709 in
- Fillet Radius: 0.043 in
- Max Rpm: 5830 rpm
- Series: 200
- Radial Dynamic Load Capacity: 8130 lbf
- Radial Static Load Capacity: 4460 lbf
- Weight: 0.83 lbs
- Type Of Bearing: Ball Bearing
- Maximum Operating RPM: 7500 RPM (grease), 8750 RPM (oil)
- Outer Diameter Type: Cylindrical
- Precision Class: ABEC1
- Relubricatable: No
- Rolling Element: Ball
- Min Operating Temperature: -50 degrees C
- Self Aligning: No
- Retainer Material: Cold Rolled Steel
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 2 hours and 10 minutes.
