FAFNIR 209KD DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: FAFNIR
Manufacturer Part Number: 209KD
IMS Product Code: 1838514
Packaging: Sold Individually
Description:

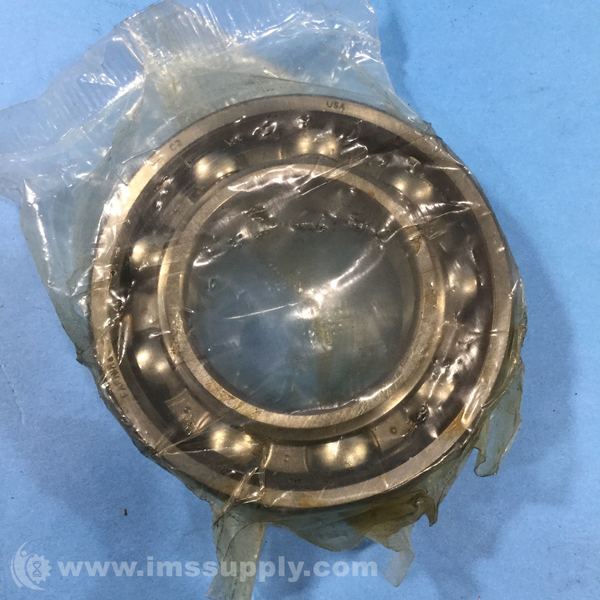

Fafnir 209KD Deep Groove Ball Bearing
Deep groove ball bearing with straight bore, single shielded, and without snap ring. Made of steel with a cylindrical outer diameter.
Specifications
- Bore Type: Straight
- Bore Diameter: 45 mm
- Outside Diameter: 85 mm
- Overall Width: 19 mm
- Closure Type: Single Shielded
- Row Type: Single Row Non-Fill Slot
- Snap Ring Included: Without Snap Ring
- Internal Clearance: P
- Max Operating Temperature: 120 degrees C
- Min Operating Temperature: -50 degrees C
- Precision Rating: Not Rated
- Finish Coating: Uncoated
- Bearing Material: Steel
- Cage Material: Steel
- Radial Dynamic Load Capacity: 8160 lbf
- Radial Static Load Capacity: 4600 lbf
- Weight: 0.94 lbs
- Max Rpm: 5380 rpm
- Series: 200
