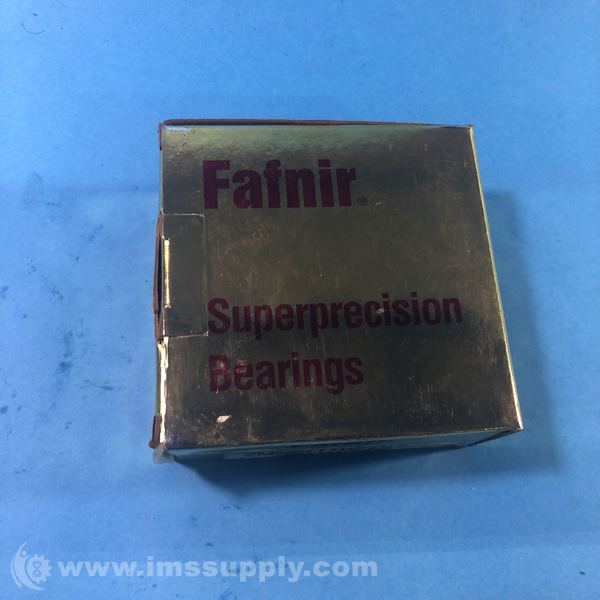

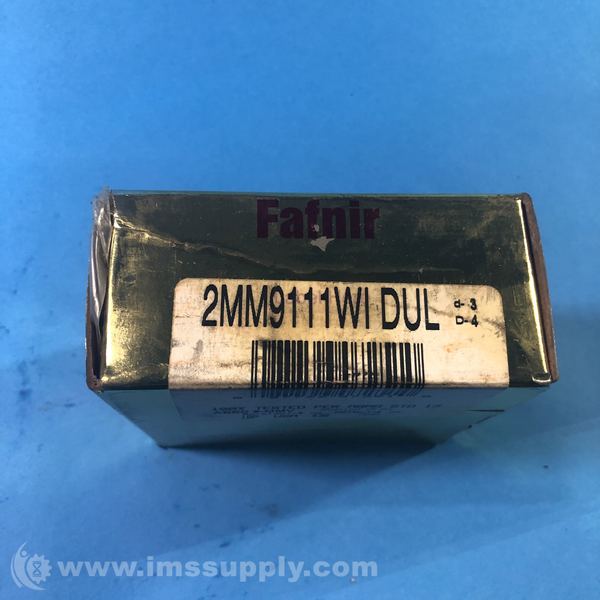

FAFNIR 2MM9111WI DUL STEEL ANGULAR CONTACT BALL BEARING
Quick Overview
Manufactured By: FAFNIR
Manufacturer Part Number: 2MM9111WI DUL
IMS Product Code: 1907979
Packaging: Sold Individually
Description:
Fafnir 2MM9111WI DUL Steel Angular Contact Ball Bearing
Steel super precision angular contact ball bearing, duplex set, metric dimensions.
Specifications
- Bearing Material: Steel
- Precision Level: Extra Precision (ABEC 7)
- Enclosure: Open
- Preload Level: Light
- I.D.: 55 mm
- O.D.: 90 mm
- Overall Width: 36 mm
- Contact Angle: 15 degrees
- No. of Rows: 2
- Bore Type: Round Bore, Metric Type
- Cage Material: Phenolic
- Dynamic Load Rating: 8,500.00 lbf
- Static Load Rating [Max]: 6,420.00 lbf
- Limiting Speed - Oil: 20,100 rpm
- Limiting Speed - Grease: 11,800 rpm
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 3 hours and 9 minutes.
