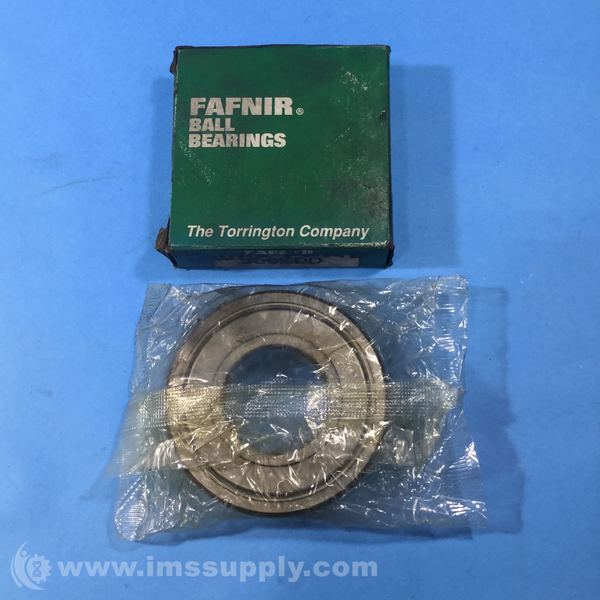

FAFNIR 309KDD DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: FAFNIR
Manufacturer Part Number: 309KDD
IMS Product Code: 1838516
Packaging: Sold Individually
Description:
Fafnir 309KDD Deep Groove Ball Bearing
Steel deep groove ball bearing with double shielding and straight bore
Specifications
- Bore Diameter: 45 mm
- Outside Diameter: 100 mm
- Overall Width: 25 mm
- Closure Type: Double Shielded
- Bearing Material: Steel
- Cage Material: Steel
- Max Operating Temperature: 120 degrees C
- Min Operating Temperature: -50 degrees C
- Radial Dynamic Load Capacity: 13200 lbf
- Radial Static Load Capacity: 7100 lbf
- Weight: 1.9 lbs
- Series: 300
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Tuesday, May 26, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
