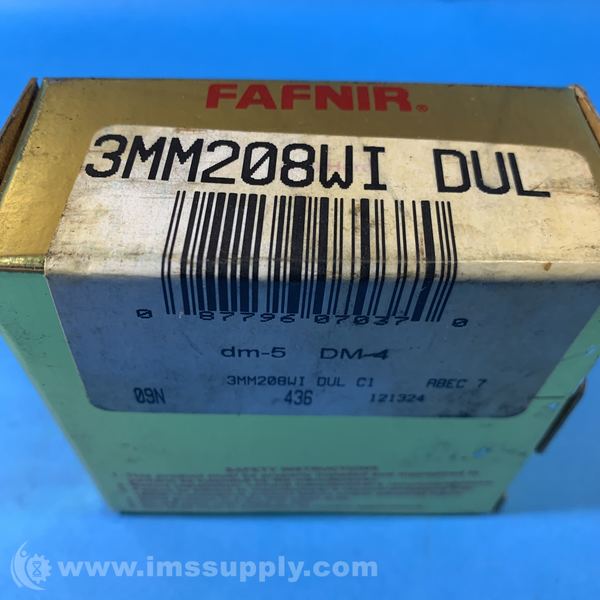

FAFNIR 3MM208WI DUL ANGULAR CONTACT BEARING
Quick Overview
Manufactured By: FAFNIR
Manufacturer Part Number: 3MM208WI DUL
IMS Product Code: 1924865
Packaging: Sold Individually
Description:
Fafnir 3MM208WI DUL Angular Contact Bearing
Angular contact ball bearing, single row, 40 mm bore, 80 mm outer diameter, 18 mm width, 25 degree contact angle, open type, phenolic resin cage.
Specifications
- Bore Type: Straight
- Bore Diameter: 40 mm
- Outside Diameter: 80 mm
- Overall Width: 18 mm
- Closure Type: Open
- Contact Angle: 25 degrees
- Internal Clearance: C0
- Precision Rating: ABEC 7 (ISO Class 4)
- Radial Dynamic Load Capacity: 9000 lbf
- Radial Static Load Capacity: 5100 lbf
- Max Rpm: 17400 rpm
- Cage Material: Phenolic Resin
- Finish Coating: Uncoated
- Fillet Radius: 1 mm
- Series: 3MM200WI
