FAFNIR 5203KDD3 DOUBLE ROW ANGULAR CONTACT BALL BEARING
Quick Overview
Manufactured By: FAFNIR
Manufacturer Part Number: 5203KDD3
IMS Product Code: 1838695
Packaging: Sold Individually
Description:

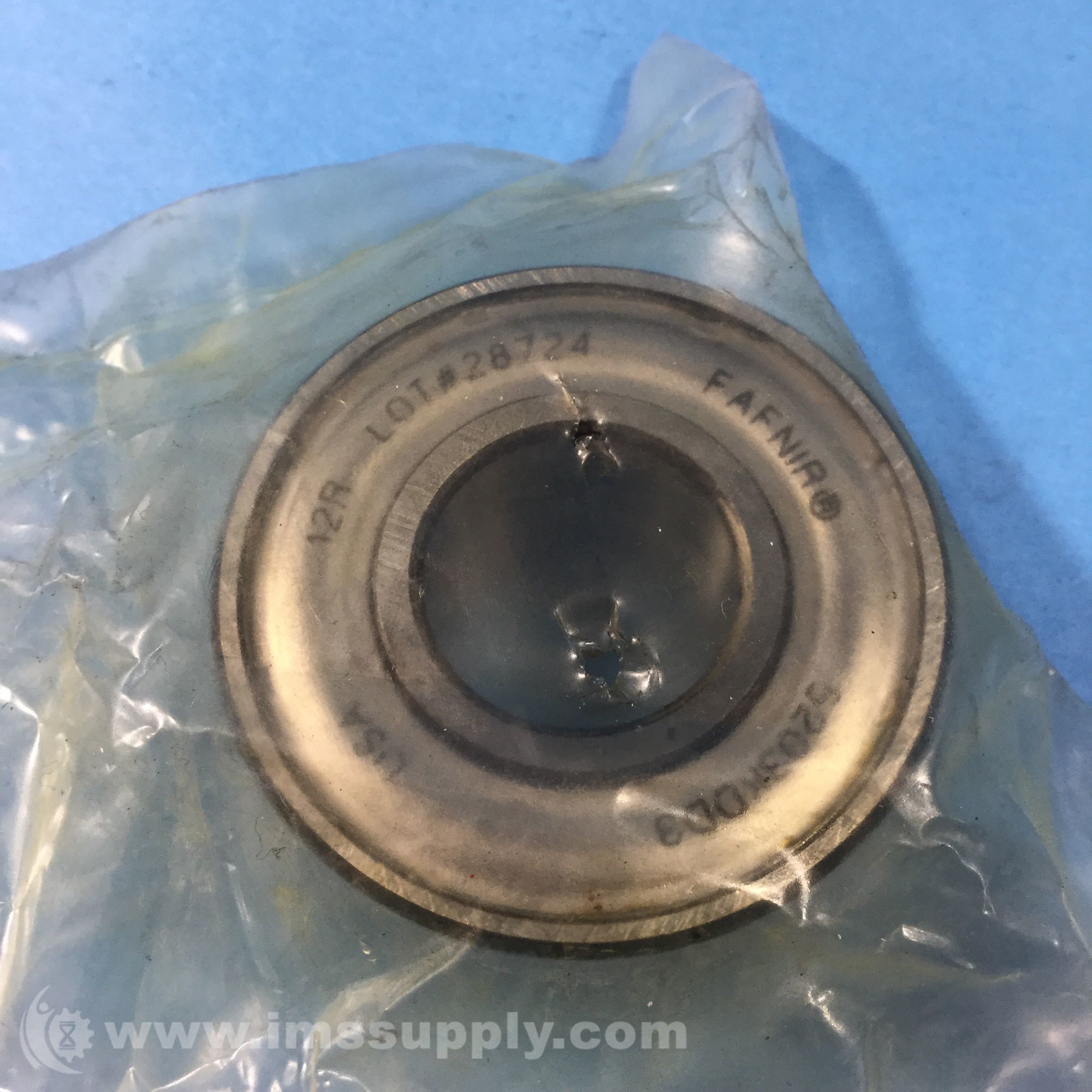

Fafnir 5203KDD3 Double Row Angular Contact Ball Bearing
Double-row angular contact ball bearing with 17 mm bore diameter, 40 mm outside diameter, and 12 mm width. Shielded on both sides, without snap ring, 20° contact angle, C0 internal clearance.
Specifications
- Bore Type: Straight
- Bore Diameter: 17 mm
- Outside Diameter: 40 mm
- Overall Width: 0.6875 in
- Row Type: Double-Row Non-Fill Slot
- Closure Type: Double Shielded
- Snap Ring Included: Without Snap Ring
- Bearing Type: Angular Contact Bearings
- Contact Angle: 20 degrees
- Bearing Material: Steel
- Internal Clearance: C0
- Radial Dynamic Load Capacity: 3800 lbf
- Radial Static Load Capacity: 2080 lbf
- Cage Material: Nylon
- Max Rpm: 10530 rpm
- Finish Coating: Uncoated
- Precision Rating: Not Rated
- Fillet Radius: 0.6 mm
- Series: 5200
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 48 minutes.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 48 minutes.
