FAFNIR 9102K RADIAL BALL BEARING
Quick Overview
Manufactured By: FAFNIR
Manufacturer Part Number: 9102K
IMS Product Code: 1925959
Packaging: Sold Individually
Description:

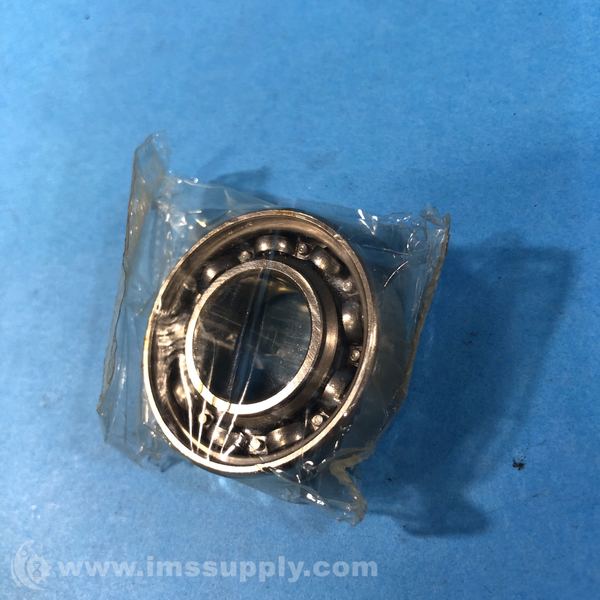

Fafnir 9102K Radial Ball Bearing
Steel radial ball bearing with 15mm bore, 32mm outer diameter, and 9mm width.
Specifications
- Bore Diameter: 15 mm
- Outer Diameter: 32 mm
- Bearing Width: 9 mm
- Ball Type: Steel
- Dynamic Radial Rating: 6200 N
- Static Radial Rating: 2840 N
- Limiting Speed (Grease): 12766 rpm
- Limiting Speed (Oil): 14894 rpm
- Inner Ring Backing Diameter: 17.02 mm
- Outer Ring Backing Diameter: 29.97 mm
- Series: 9100K
- Closure Type: Open
- Bearing Material: Steel
- Cage Material: Steel
- Temperature Rating: -30 to 275 degrees F
- Finish: Uncoated
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 10 In Stock
Ships today if ordered in the next 2 hours and 12 minutes.
