FAFNIR 9103K RADIAL DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: FAFNIR
Manufacturer Part Number: 9103K
IMS Product Code: 1924697
Packaging: Sold Individually
Description:

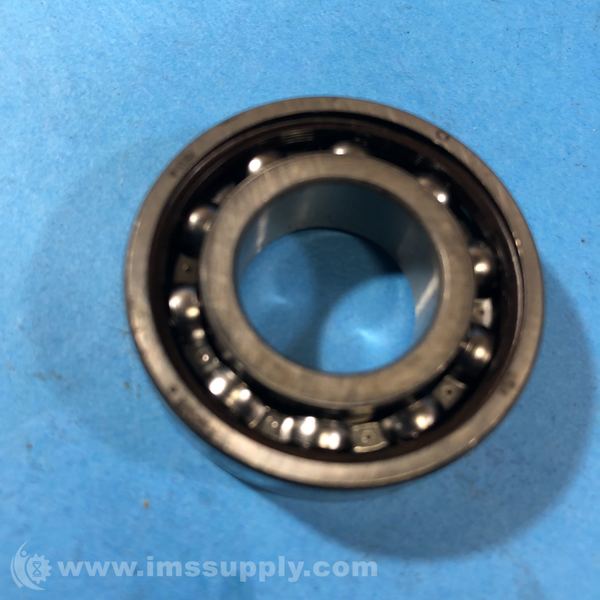

Fafnir 9103K Radial Deep Groove Ball Bearing
Single row, non-fill slot, open, steel construction ball bearing with straight bore and cylindrical outer diameter. Dimensions: 17 mm ID, 35 mm OD, 10 mm width.
Specifications
- Bore Type: Straight
- Bore Diameter: 17 mm
- Outside Diameter: 35 mm
- Overall Width: 10 mm
- Closure Type: Open
- Row Type: Single Row Non-Fill Slot
- Snap Ring Included: Without Snap Ring
- Internal Clearance: R
- Max Operating Temperature: 120 C
- Min Operating Temperature: -50 C
- Precision Rating: Not Rated
- Seal Type: Open
- Finish Coating: Uncoated
- Bearing Material: Steel
- Cage Material: Steel
- Radial Dynamic Load Capacity: 1500 lbf
- Radial Static Load Capacity: 735 lbf
- Series: 9100
- Max Rpm: 13210 rpm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 12 minutes.
