FAFNIR 9114PP RADIAL DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: FAFNIR
Manufacturer Part Number: 9114PP
IMS Product Code: 1924853
Packaging: Sold Individually
Description:

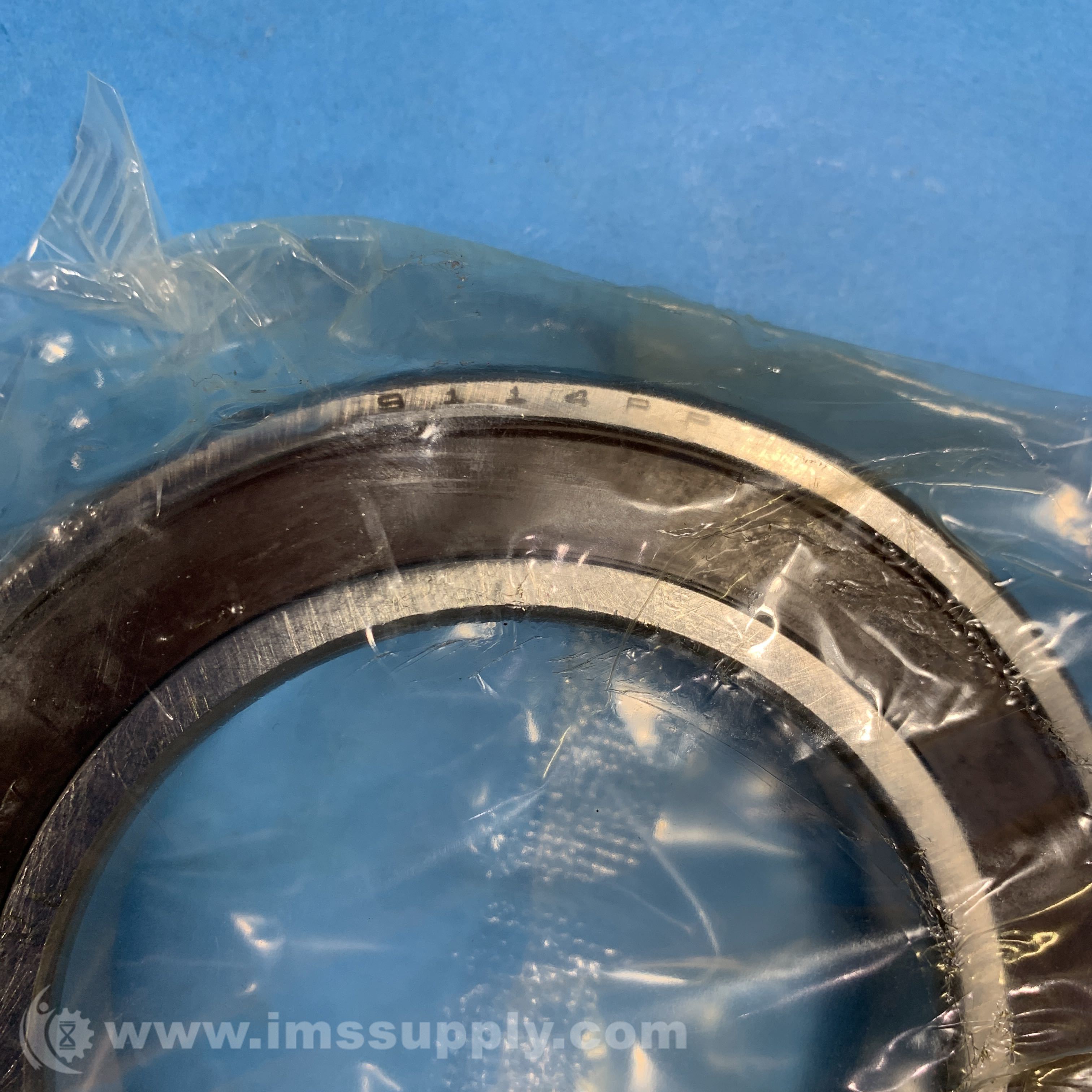

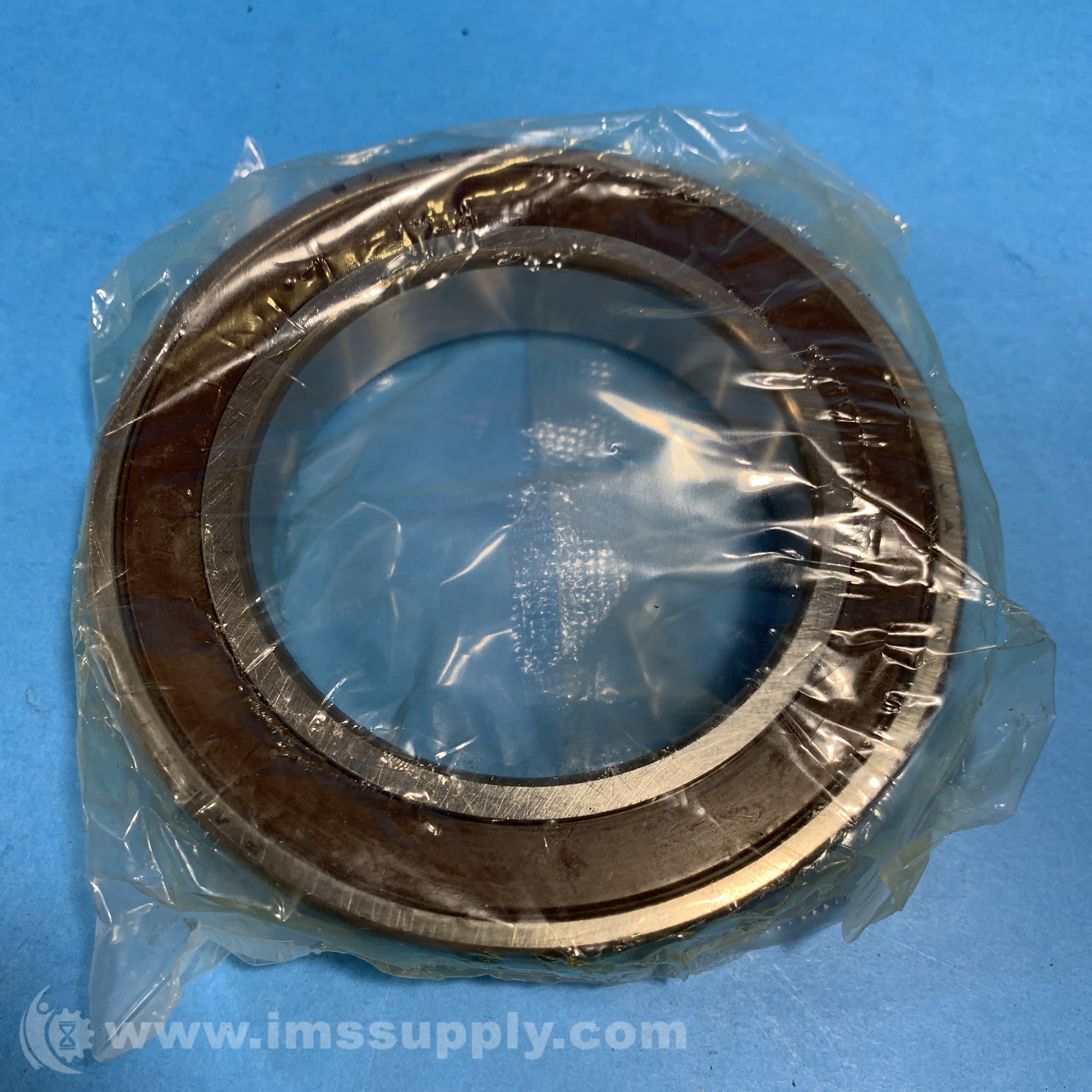

Fafnir 9114PP Radial Deep Groove Ball Bearing
Single Row Deep Groove Radial Ball Bearing, straight bore, double sealed, without snap ring.
Specifications
- Bore Diameter: 70 mm
- Outside Diameter: 110 mm
- Overall Width: 20 mm
- Bearing Material: Steel
- Cage Material: Steel
- Closure Type: Double Sealed
- Fillet Radius: 0.043 in
- Inner Ring Width: 0.787 in
- Outer Diameter Type: Cylindrical
- Bore Type: Straight
- Precision Rating: Not Rated
- Weight: 1.39 lbs
- Max Operating Temperature: 120 degrees C
- Min Operating Temperature: -50 degrees C
- Radial Dynamic Load Capacity: 9490 lbf
- Radial Static Load Capacity: 6940 lbf
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
