FAG 6013.C3 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: FAG BEARING
Manufacturer Part Number: 6013.C3
IMS Product Code: 2131524
Packaging: Sold Individually
Description:

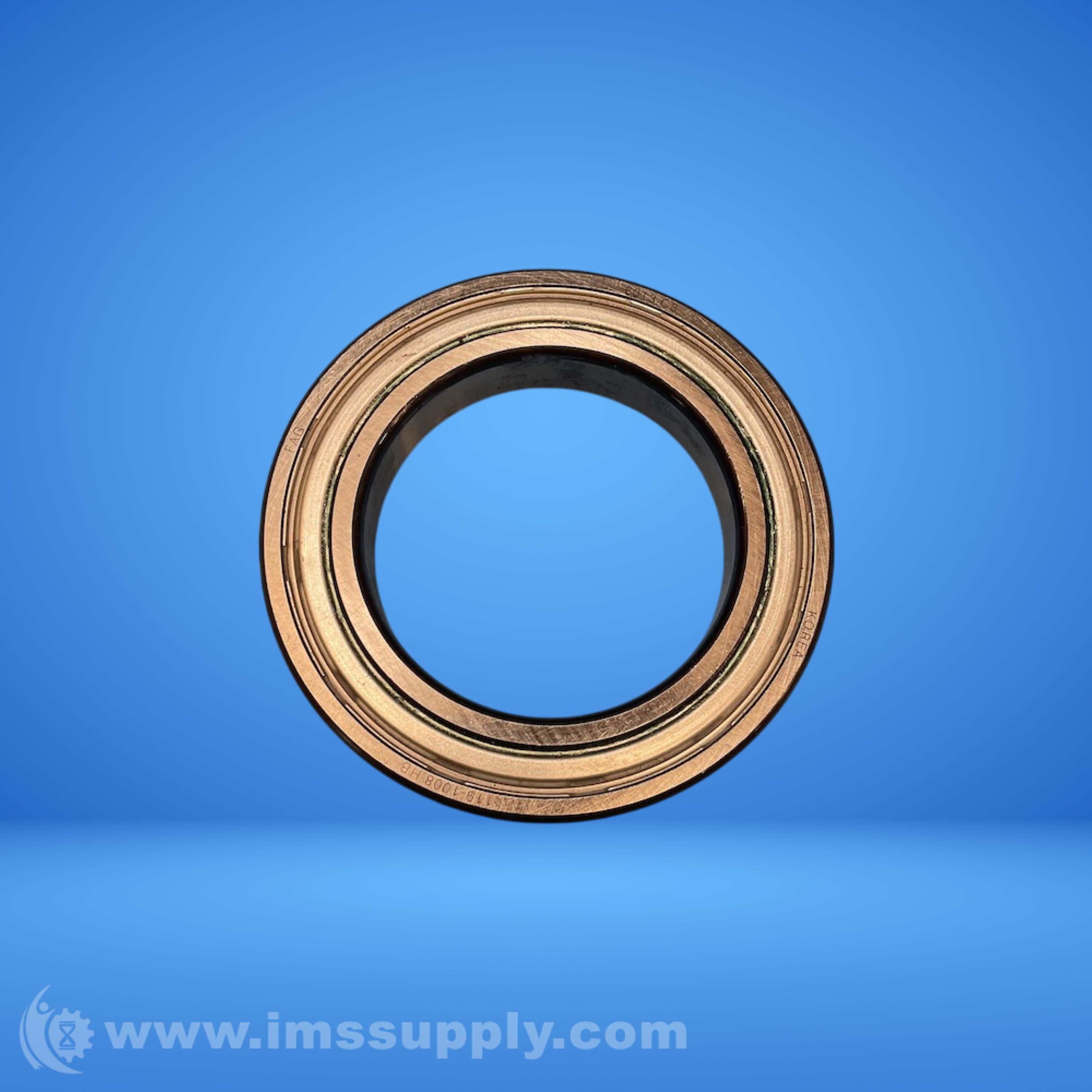

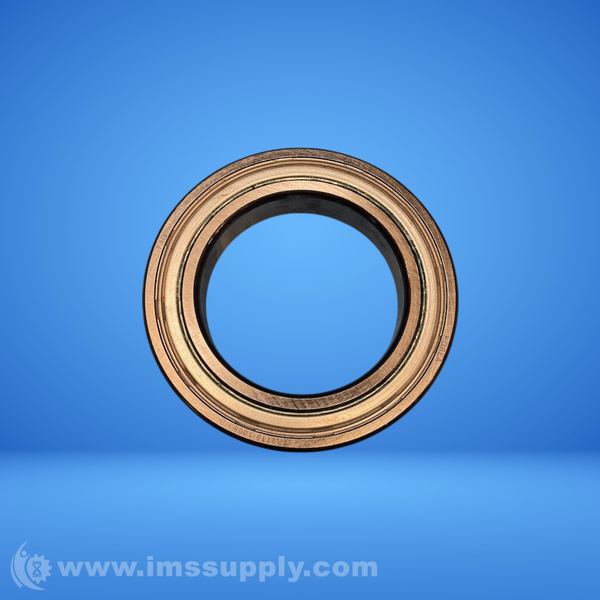

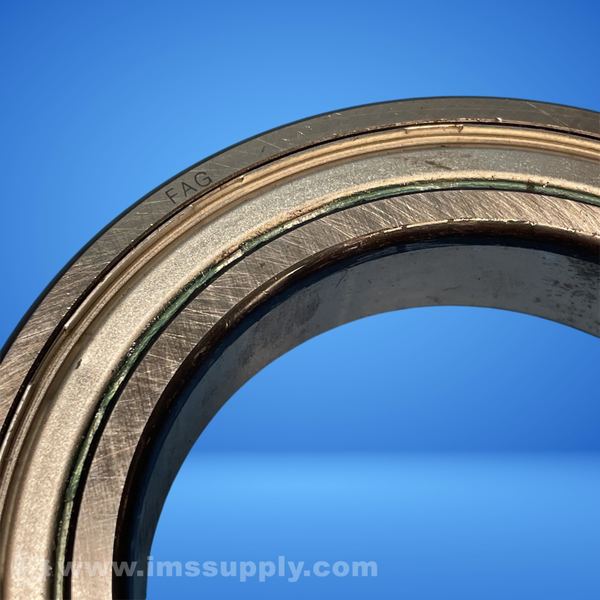

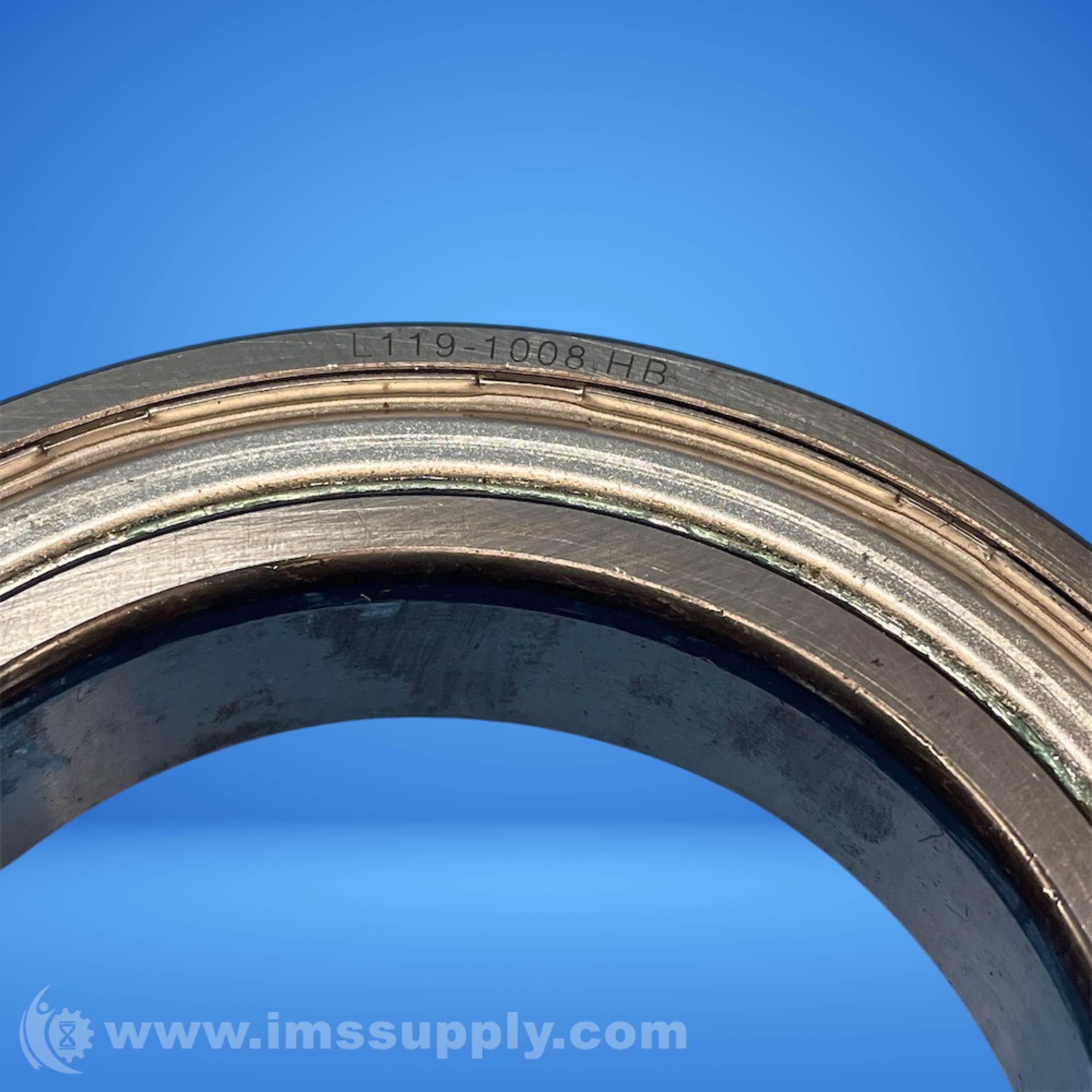

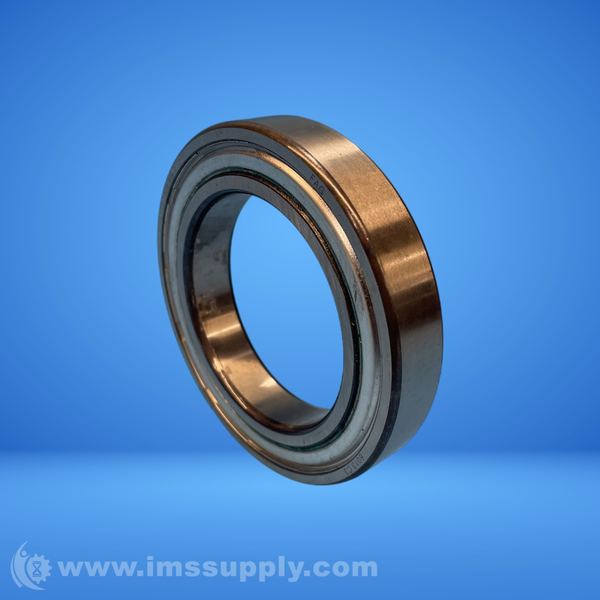

Fag 6013.C3 Deep Groove Ball Bearing
Radial/Deep Groove Ball Bearing - Straight Bore, 65 mm ID, 100 mm OD, 18 mm Width, Open, Without Snap Ring
Specifications
- Bore Type: Straight
- Bore Diameter: 65 mm
- Outside Diameter: 100 mm
- Overall Width: 18 mm
- Closure Type: Open
- Row Type: Single Row Non-Fill Slot
- Snap Ring Included: Without Snap Ring
- Internal Clearance: C3
- Operating Temperature Range: Maximum of +120 degrees C
- Precision Rating: ABEC 1 (ISO Class Normal)
- Seal Type: Open
- Finish Coating: Uncoated
- Cage Material: Steel
- Fillet Radius: 1 mm
- Max Rpm: 9500 rpm
- Standards Met: DIN 625-1
- Series: 60
- Radial Dynamic Load Capacity: 32500 N
- Radial Static Load Capacity: 25000 N
- Weight: 0.96 lbs
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 3 In Stock
Ships today if ordered in the next 11 hours and 17 minutes.
