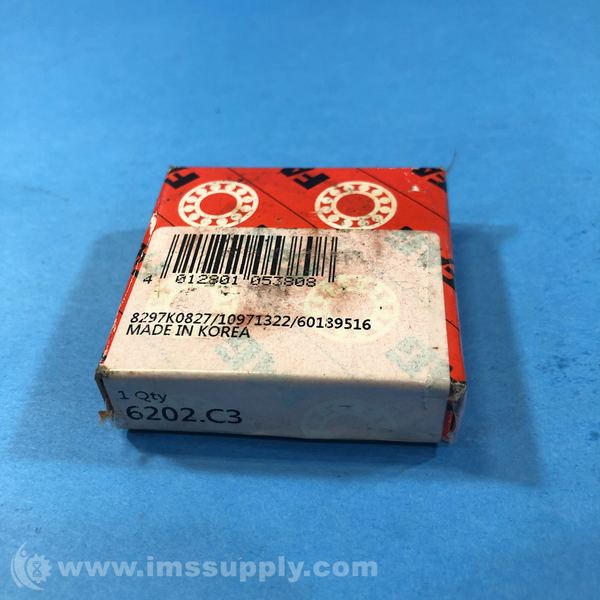

FAG 6202 C3 DEEP GROOVE BALL BEARING
Quick Overview
Manufactured By: FAG BEARING
Manufacturer Part Number: 6202 C3
IMS Product Code: 1941081
Packaging: Sold Individually
Description:
Fag 6202 C3 Deep Groove Ball Bearing
Deep groove ball bearing with straight bore, 15 mm ID, 35 mm OD, 11 mm width, open type, without snap ring
Specifications
- Bore Type: Straight
- Bore Diameter: 15 mm
- Outside Diameter: 35 mm
- Overall Width: 11 mm
- Closure Type: Open
- Row Type: Single Row Non-Fill Slot
- Snap Ring Included: Without Snap Ring
- Internal Clearance: C3
- Operating Temperature Range: Maximum of +120 degrees C
- Precision Rating: ABEC 1 (ISO Class Normal)
- Seal Type: Open
- Finish Coating: Uncoated
- Cage Material: Steel
- Fillet Radius: 0.6 mm
- Max Rpm: 30000 rpm
- Standards Met: DIN 625-1
- Series: 62
- Radial Dynamic Load Capacity: 8200 N
- Radial Static Load Capacity: 3750 N
- Weight: 0.10 lbs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 7 hours and 35 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 7 hours and 35 minutes.
