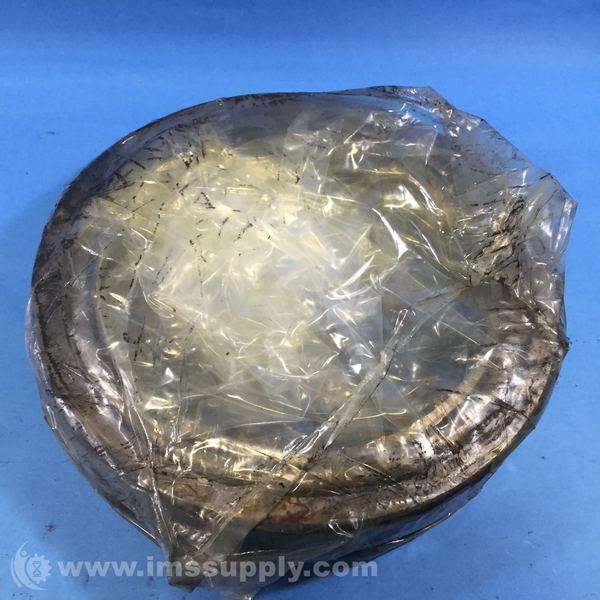

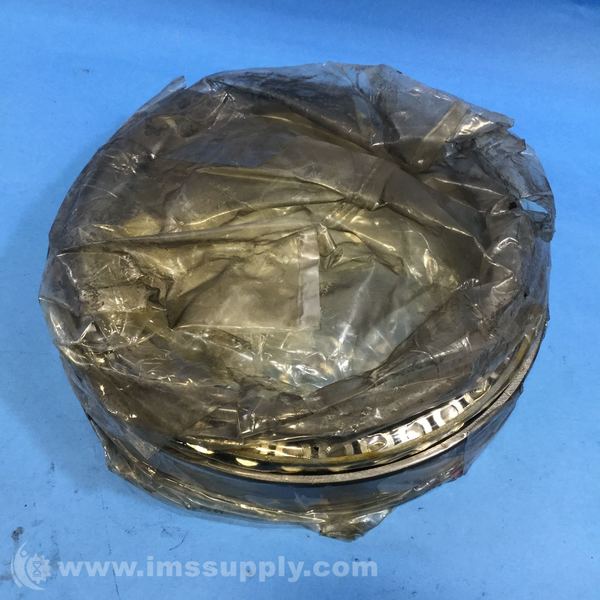

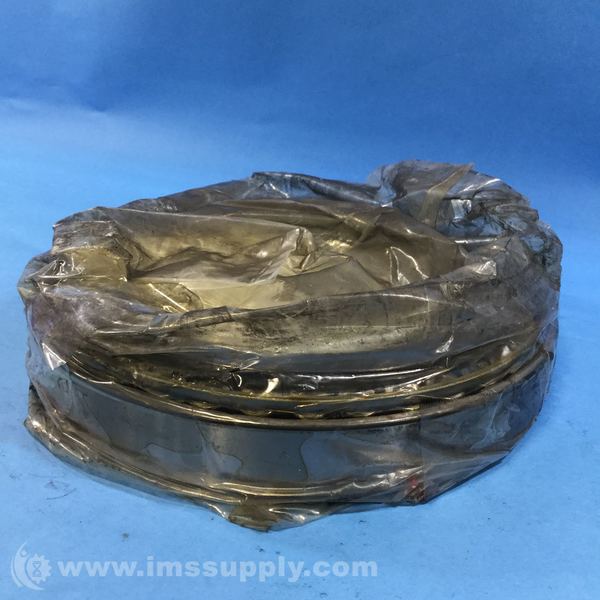

FAG 32938 TAPERED ROLLER BEARING
Quick Overview
Manufactured By: FAG
Manufacturer Part Number: 32938
IMS Product Code: 1782795
Packaging: Sold Individually
Description:
Fag 32938 Tapered Roller Bearing
Tapered roller bearing with 190 mm bore, 260 mm OD, and 45 mm width
Specifications
- Assembly Type: Cone & Cup
- Bore Diameter: 190 mm
- Outside Diameter: 260 mm
- Overall Width: 45 mm
- Closure Type: Open
- Cage Material: Steel
- Operating Temperature Range: -30 to +120 degrees C
- Finish Coating: Uncoated
- Max Rpm: 2490 rpm
- Series: 329
- Flange Type: Non-Flanged Cup
- Standards Met: DIN ISO 355/DIN 720
- Dynamic Load Rating: 370 kN
- Static Load Rating: 750 kN
- Fatigue Load Rating: 89 kN
- Reference Speed Rating: 2490 r/min
- Limiting Speed Rating: 1560 r/min
- Tolerance Class: P0/PN2 / ABEC 1
- Roller Rows: Single row bearing
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
