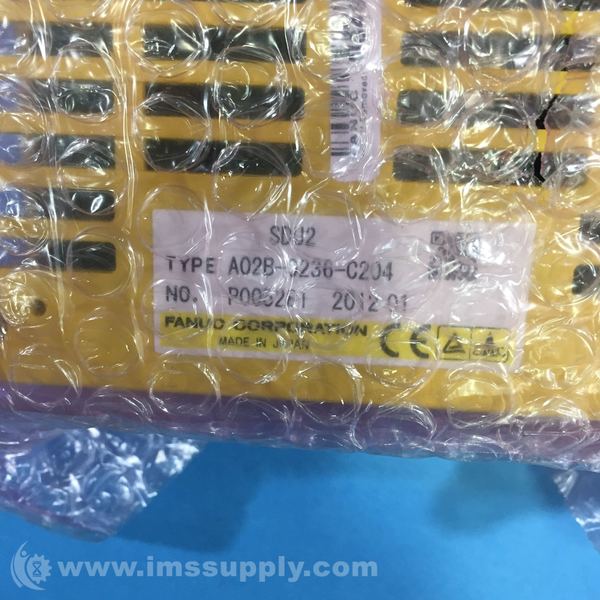

FANUC A02B-0236-C204 ADDITIONAL 4 AXIS POSITION DETECTOR INTERFACE
Quick Overview
Manufactured By: FANUC
Manufacturer Part Number: A02B-0236-C204
IMS Product Code: 730477
Packaging: Sold Individually
Description:
Fanuc A02B-0236-C204 Additional 4 Axis Position Detector Interface
This is an additional 4 axis position detector interface module designed for machining operations. It supports incremental and absolute encoders and features serial communication interface.
Specifications
- Type: SDU2
- Encoder Type: Incremental Encoder
- Signal Type: Digital signals
- Input Voltage: 24V DC
- Power Consumption: 15 W
- Input Current: 0.5-1A at 24V DC
- Position Feedback: Incremental and absolute encoders
- Operating Temperature Range: 0 degrees C to 50 degrees C
- Storage Temperature Range: -20 degrees C to +70 degrees C
- Connector Type: Pin connectors
- Diagnostic Features: Built-in LEDs
- Safety Features: CE, UL, and RoHS
- Interface Type: Serial communication interface
- Signal Conditioning: Built-in signal conditioning
- Weight: 0.5 kg
- Dimensions: 200 mm (L) x 150 mm (W) x 30 mm (H)
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 26 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 26 minutes.
