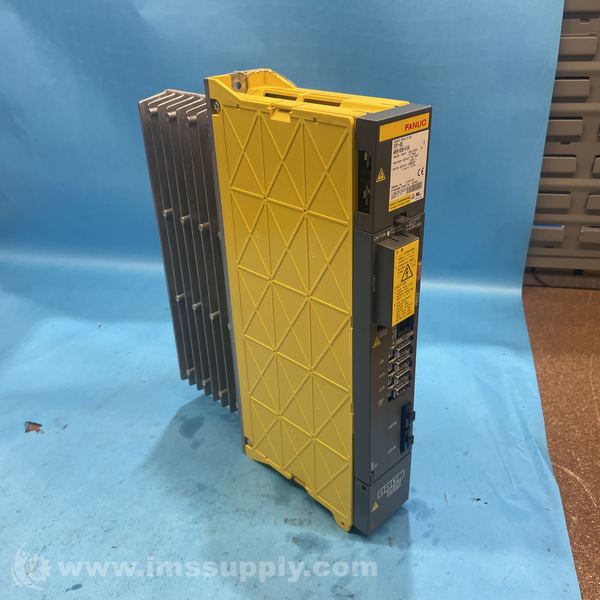

FANUC A06B-6096-H104 SERVO AMPLIFIER MODULE
Quick Overview
Manufactured By: FANUC
Manufacturer Part Number: A06B-6096-H104
IMS Product Code: 1732670
Packaging: Sold Individually
Description:
Fanuc A06B-6096-H104 Servo Amplifier Module
Single-axis alpha servo amplifier for 12/2000(40L) servo motors, part of A06B-6093 series, compatible with FANUC controls 15i, 16i, 18i, 20i, 21i and above.
Specifications
- Rated Input Voltage: 283-325V (DC 3.75kW)
- Maximum Output Voltage: 230V AC
- Rated Output Current: 12.5Amp
- Model: SVM1-40L
- Series: A06B-6093
- External Dimensions: 380mm x 60mm x 307mm
- Weight: 4.8 kg
- Ambient Temperature (Operation): 0 to +55 degrees Celsius
- Ambient Temperature (Storage/Transport): -20 to +60 degrees Celsius
- Relative Humidity: less than 90%
- Altitude: up to 1000 meters above sea level
- Axis: Single
- Heatsink: External
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 4 hours and 52 minutes.
New - Missing Box (Special):
Battery cover has broken clip.
Availability: 1 In Stock
Ships today if ordered in the next 4 hours and 52 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 4 hours and 52 minutes.
