FESTO 153028 PUSH-IN STRAIGHT FITTING
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: 153028
IMS Product Code: 2141461
Packaging: Pack of 2
Description:

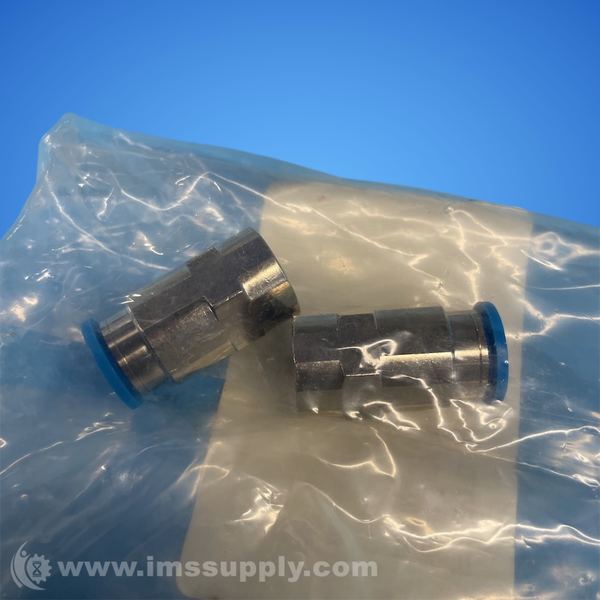

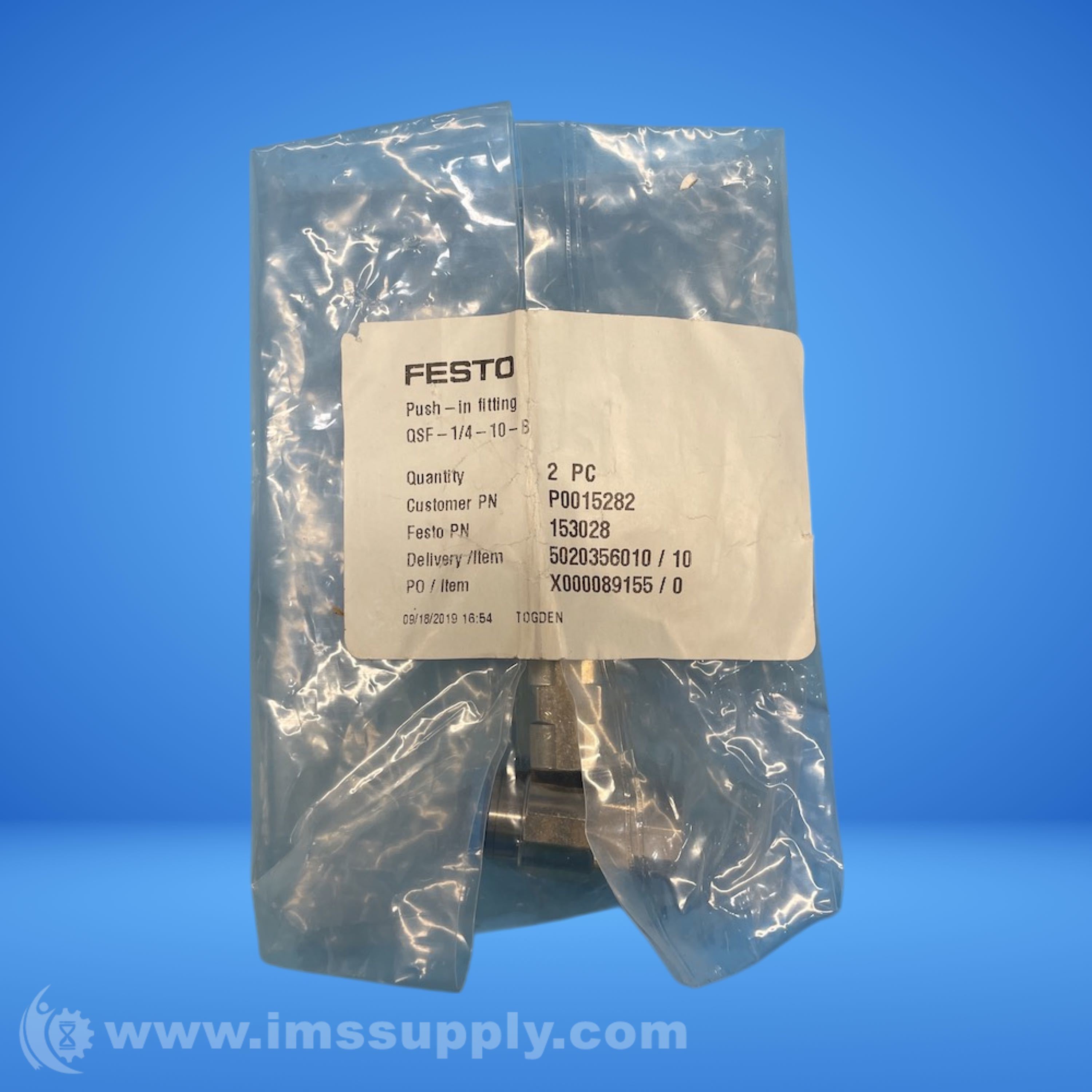

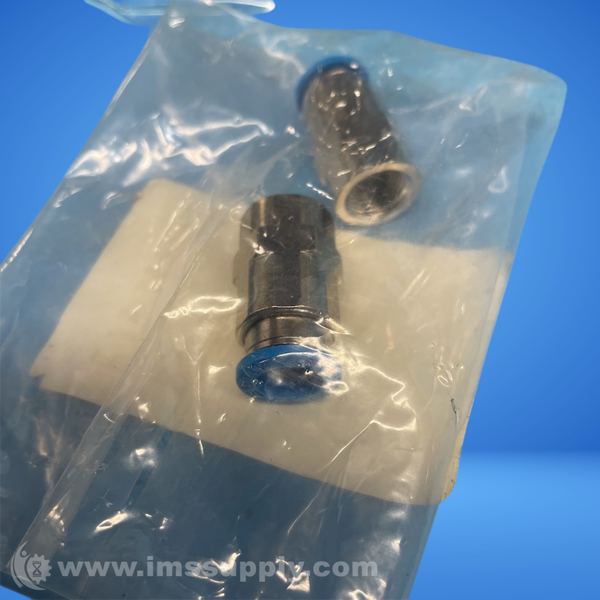

Festo 153028 Push-In Straight Fitting
Push-in straight fitting with G1/4 female thread and 10mm tube connection. Made of nickel-plated brass with NBR seal. Operates between -0.95 to 14 bar and -10 to 80 degrees C.
Specifications
- Series: QSF
- Nominal Size: 9 mm
- End Style: G1/4 FNPT x 10 mm Tube
- Angle: Straight
- Hex Size: 17 mm
- Length: 32.7 mm
- Pressure Rating: -0.95 to 14 bar
- Temperature Rating: -10 to 80 degrees C
- Material: Brass
- Finish: Nickel Plated
- Dimensions: 17.5 mm Dia
- Pneumatic Connection: Female thread G1/4
- Weight: 30g
- Type of Seal: Coating
- Operating Medium: Compressed air to ISO 8573-1:2010
- Corrosion Resistance Class: 1 - Low corrosion stress
