FESTO 186269 PUSH-IN L-FITTING
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: 186269
IMS Product Code: 2149864
Packaging: Pack of 10
Description:

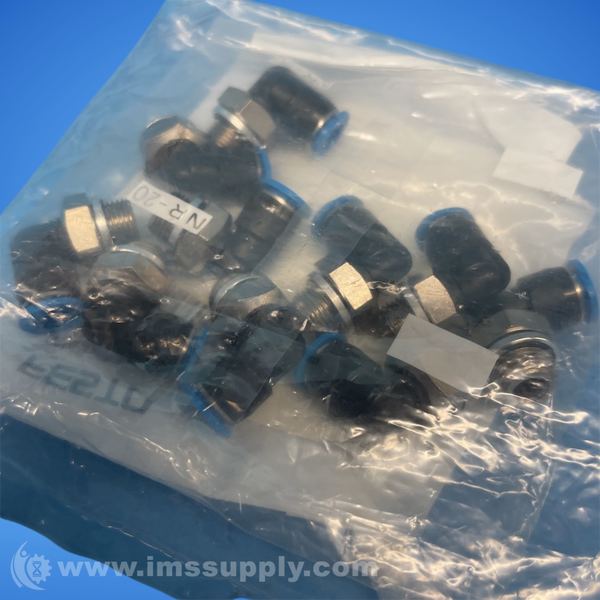

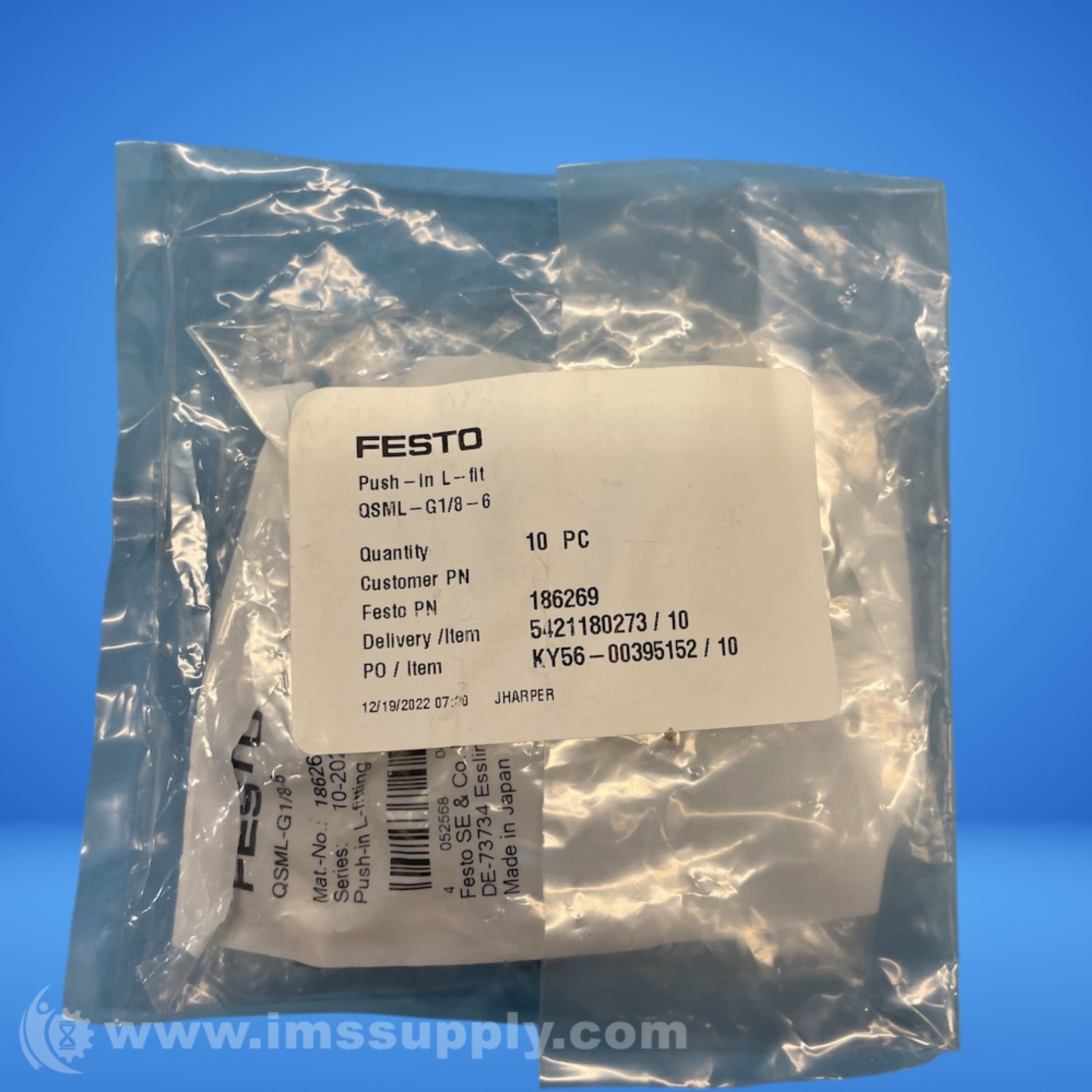

Festo 186269 Push-In L-Fitting
Push-in L-fitting for pneumatic systems, QSML series, G1/8 male thread with 6mm tube connection
Specifications
- Series: QSML
- Nominal Size: 3.3 mm
- End Style: G1/8 MNPT x 6 mm Tube
- Angle: L-Shape
- Hex Size: 13 mm
- Pressure Rating: -0.95 to 14 bar
- Temperature Rating: -10 to 80 deg C
- Material: PBT
- Finish: Nickel Plated
- Dimensions: 10.5 mm Dia
- Type of seal on screw-in stud: Sealing ring
- Assembly position: Any
- Container size: 10
- Design structure: Push/pull principle
- Operating pressure complete temperature range: -0.95 … 6 bar
- Temperature dependent operating pressure: -0.95 … 14 bar
- Operating medium: Compressed air in accordance with ISO8573-1:2010 [7:-:-]
- Note on operating and pilot medium: Lubricated operation possible
- Corrosion resistance classification CRC: 1 – Low corrosion stress
- Ambient temperature: -10 … 80 °C
- Nominal tightening torque: 7 Nm
- Tolerance for nominal tightening torque: ± 20 %
- Product weight: 9.7 g
- connection 1: Male thread G1/8
- connection 2: For tubing outside diameter 6 mm
- Colour of release ring: blue
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
