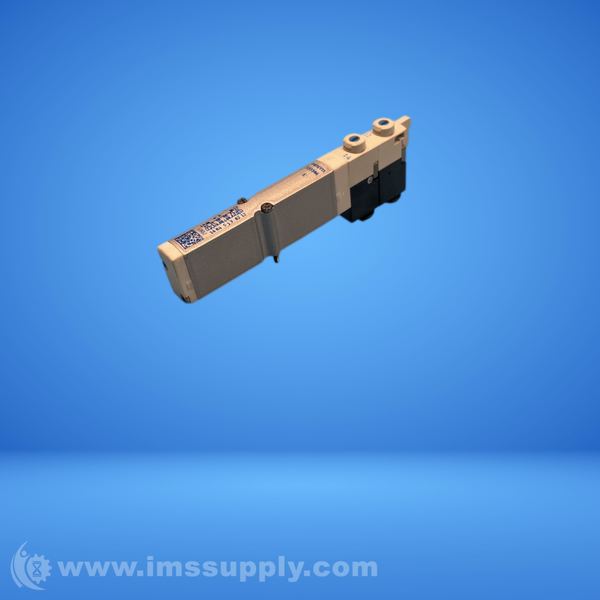

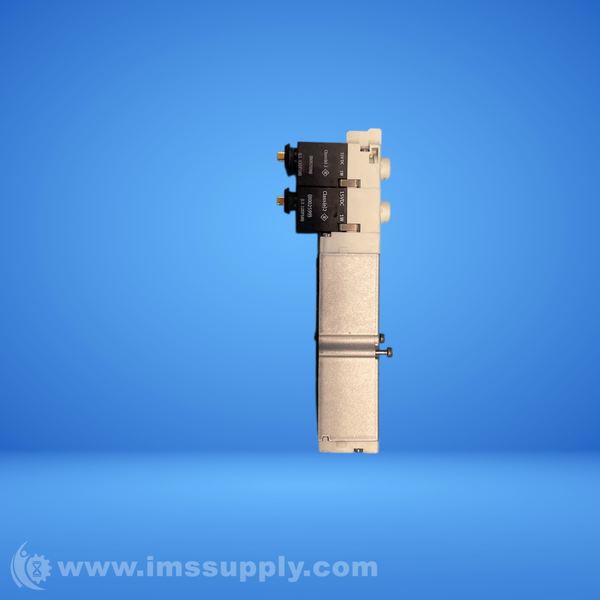

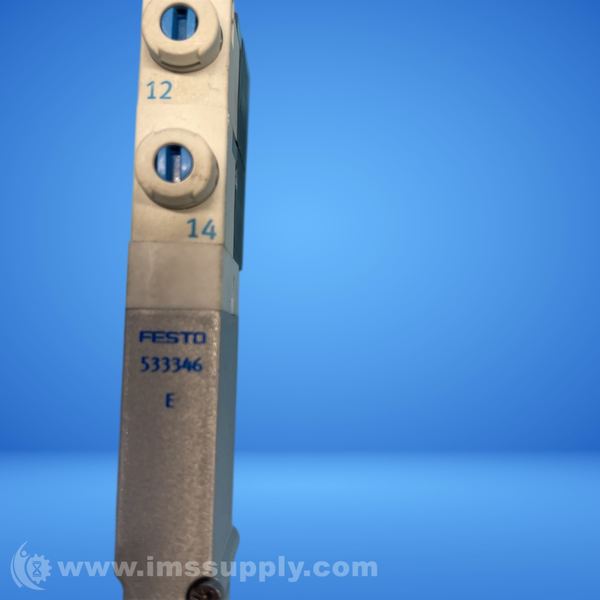

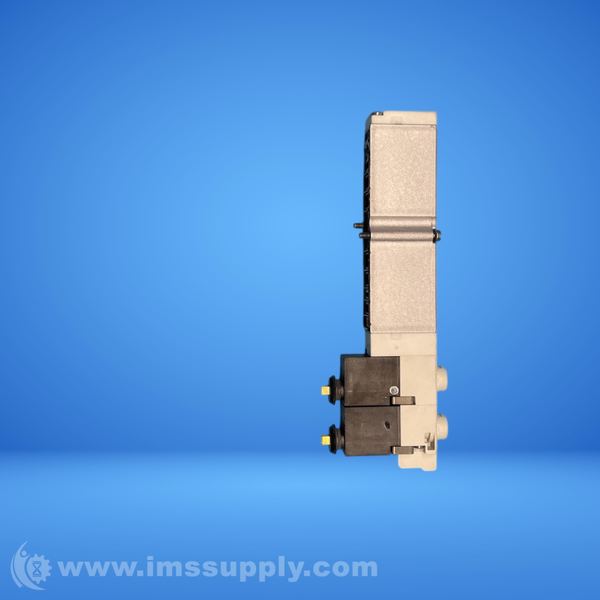

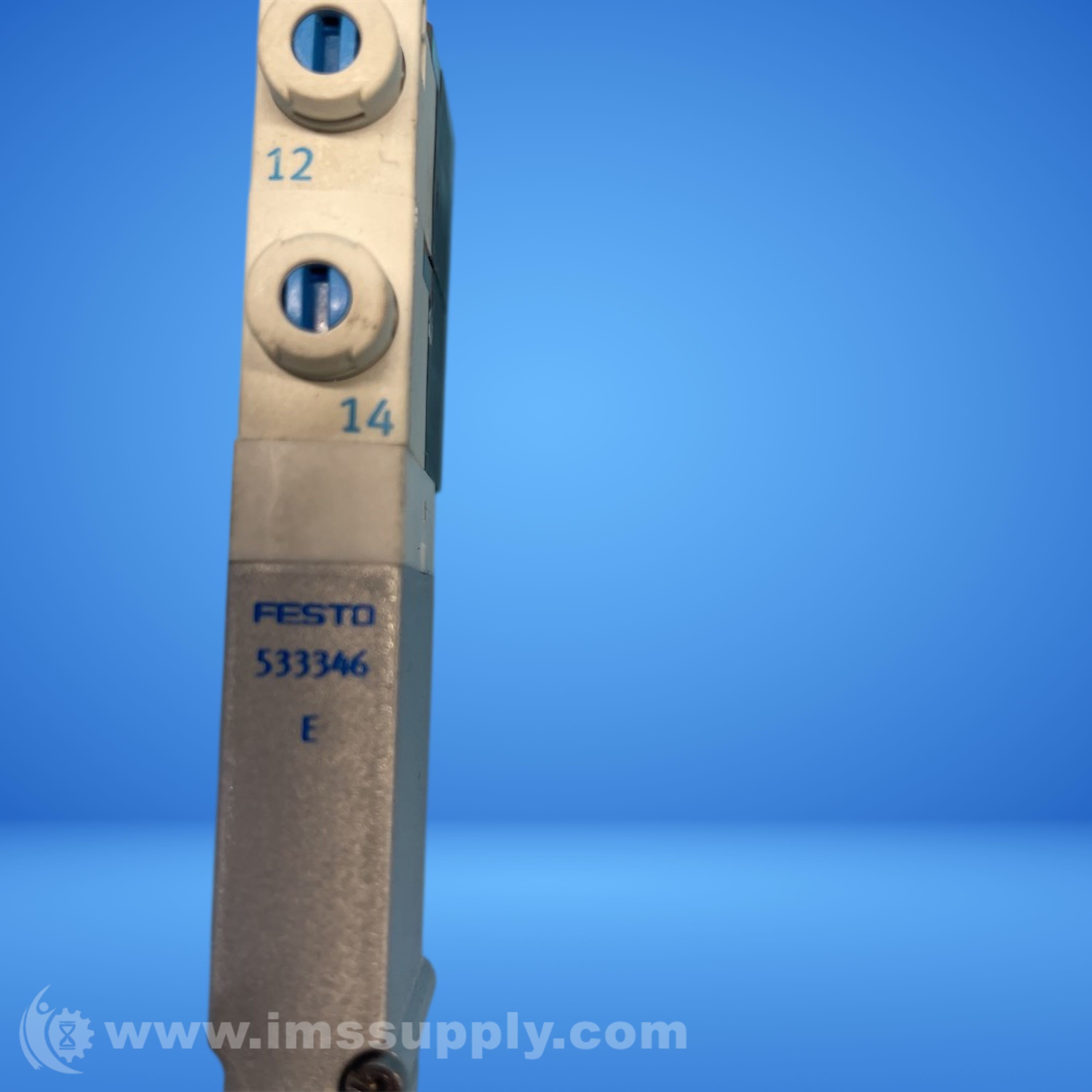

FESTO 533346 5/3-WAY SOLENOID VALVE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: 533346
IMS Product Code: 2161416
Packaging: Sold Individually
Description:
Festo 533346 5/3-Way Solenoid Valve
10mm wide solenoid valve with 5/3-way valve function.
Specifications
- valve_function: 5/3 exhausted
- actuation_type: Electric
- valve_size: 10MM
- standard_nominal_flow_rate: 240L2
- operating_pressure: -0.09MPA to 1MPA
- operating_pressure_bar: -0.9BAR to 10BAR
- valve_design: Piston gate
- reset_type: Mechanical spring
- degree_of_protection: IP65
- sealing_principle: Soft sealing
- mounting_position: Optional
- manual_override: Detenting and non-detenting
- piloting_type: Pilot actuated
- flow_direction: Reversible
- signal_status_display: Yes
- pilot_pressure: 0.3MPA to 0.8MPA
- pilot_pressure_bar: 3BAR to 8BAR
- suitability_for_vacuum: Yes
- switching_time_off: 35MS
- switching_time_on: 10MS
- switching_time_reversal: 15MS
- max_positive_test_pulse: 400MIS
- max_negative_test_pulse: 200MIS
- permissible_voltage_fluctuations: +/- 25%
- operating_medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- lubricated_operation: Possible
- vibration_resistance: Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- shock_resistance: Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- corrosion_resistance_class: 1 - Low
- lABS_conformity: VDMA24364-B1/B2-L
- media_temperature: -5GC to 50GC
- relative_air_humidity: Max. 90% at 40°C
- max_tightening_torque: 0.25NM
- product_weight: 56G
- mounting_type: With through-hole
- material_housing: Die-cast aluminium
- material_seals: NBR
- ambient_temperature: -5GC to 50GC
- storage_temperature: -20GC to 40GC
- RoHS_compliant: Yes
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
