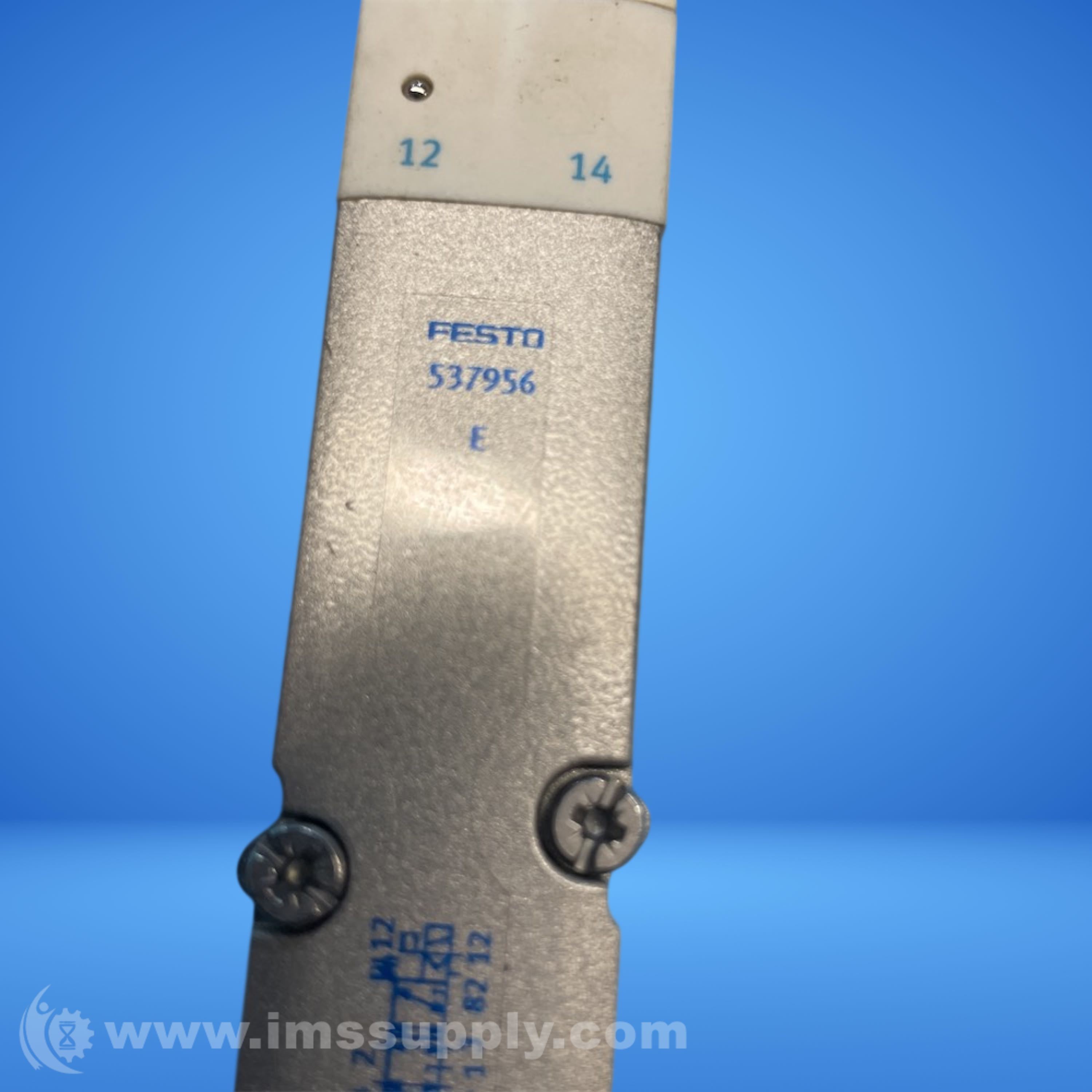

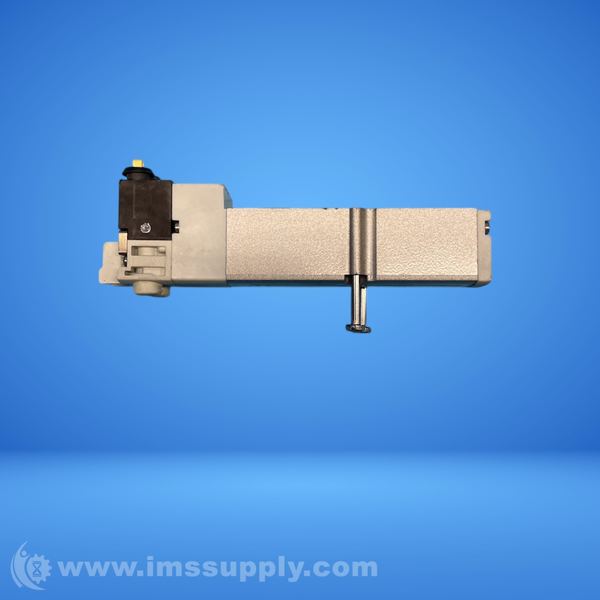

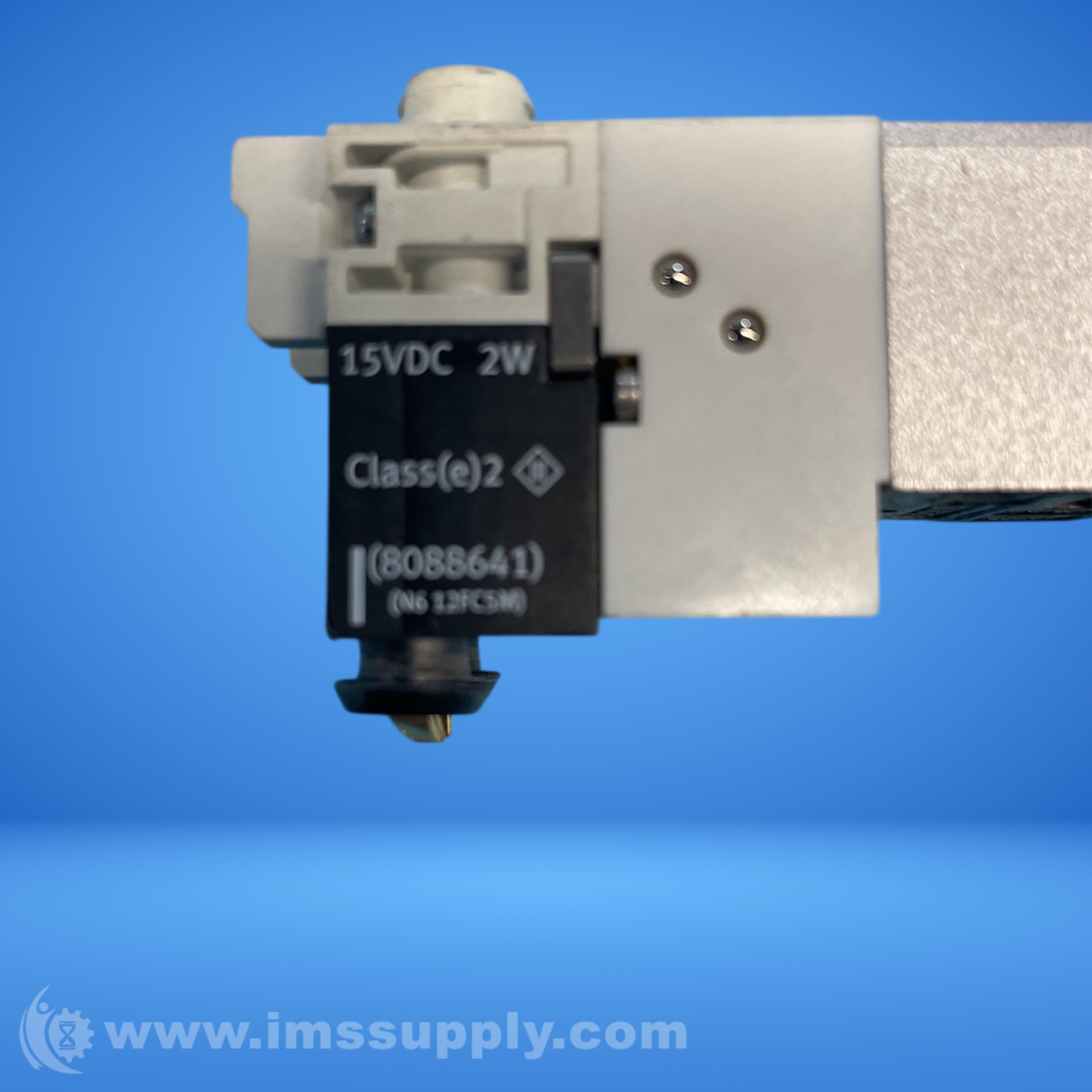

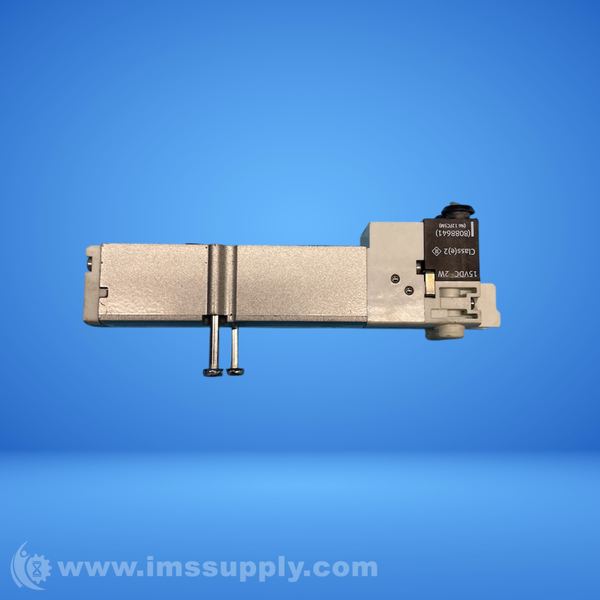

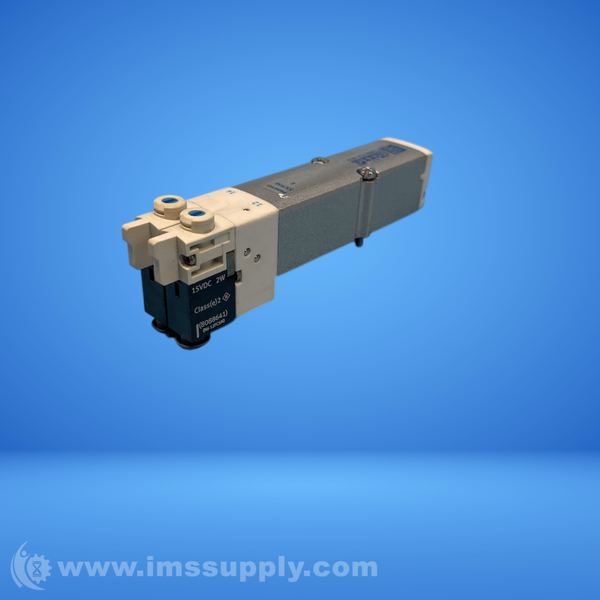

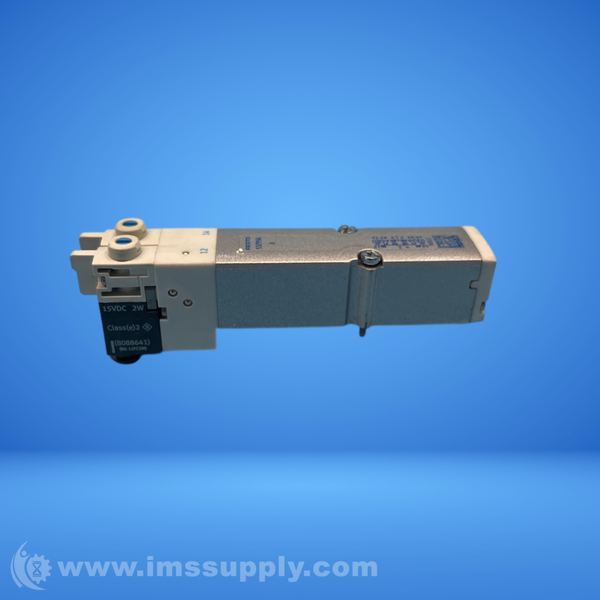

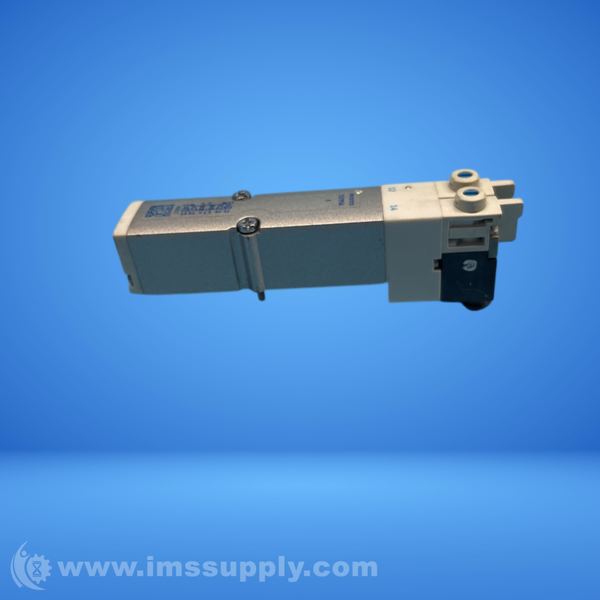

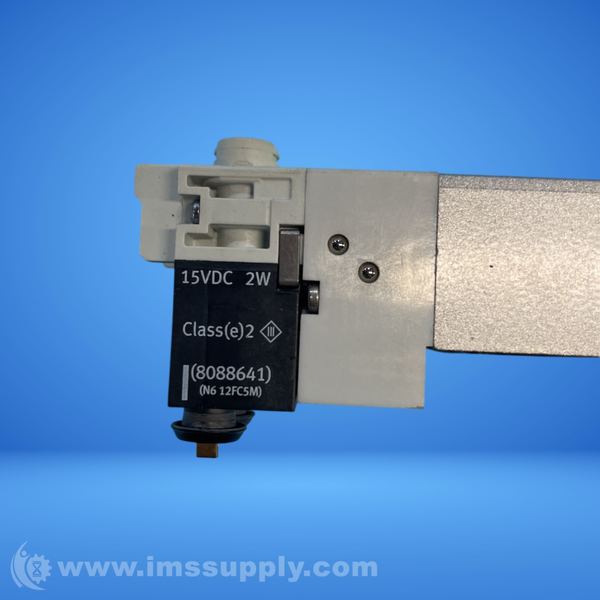

FESTO 537956 SOLENOID VALVE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: 537956
IMS Product Code: 2161422
Packaging: Sold Individually
Description:
Festo 537956 Solenoid Valve
20mm wide solenoid valve with 5/3-way valve function.
Specifications
- actuation type: Electric
- approval: C UL us - Recognized (OL)
- ambient temperature: -5 degrees C to 50 degrees C
- assembly position: Any
- body material: Aluminum
- corrosion resistance class: 1 - Low
- design structure: Piston slide
- dimensions: 28.8 mm W x 52.2 mm H x 107.3 mm L
- finish: Die Cast
- flow direction: Reversible
- flow rate: 700 lpm
- lABS conformity: VDMA24364-B1/B2-L
- lubricated operation: Possible
- manual override: detenting and non-detenting
- material housing: Die-cast aluminium
- material seals: NBR
- max negative test pulse: 900 micro s
- max positive test pulse: 400 micro s
- media temperature: -5 degrees C to 50 degrees C
- mounting position: Optional
- mounting type: With through-hole
- nominal flow rate: 590 l/min
- number of positions: 3
- number of ways: 5
- operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- operating pressure: -0.9 to 10 bar
- orifice size: G1/8
- piloting type: Pilot actuated
- pilot pressure: 0.3 MPa to 0.8 MPa
- port size: G1/8
- port type: Female
- pressure rating: -0.9 to 10 bars
- product weight: 100 g
- protection degree: IP65
- relative air humidity: Max. 90% at 40 degrees C
- reset type: Mechanical spring
- sealing principle: Soft sealing
- series: VMPA2
- shock resistance: Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- signal status display: Yes
- softgoods material: NBR
- standard nominal flow rate: 700 l/min
- storage temperature: -20 degrees C to 40 degrees C
- suitability for vacuum: Yes
- switching time off: 47 ms
- switching time on: 11 ms
- switching time reversal: 23 ms
- temperature rating: -5 to 50 degrees C
- type: Solenoid Valve
- valve design: Piston gate
- valve function: 5/3 exhausted
- valve size: 20 mm
- vibration resistance: Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
