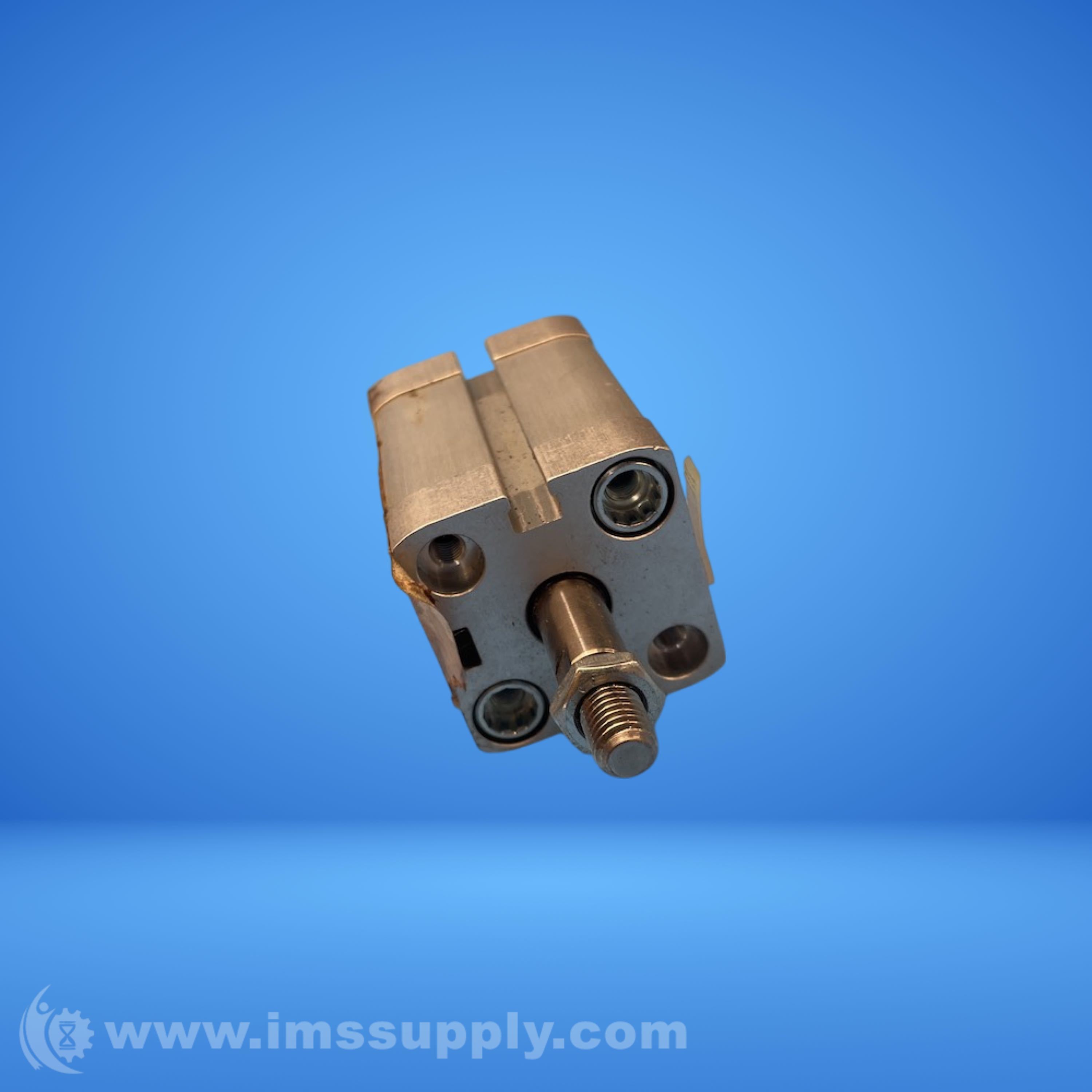

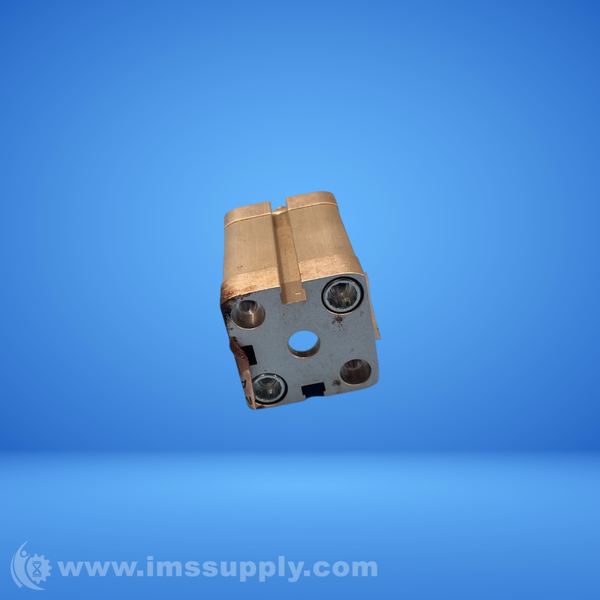

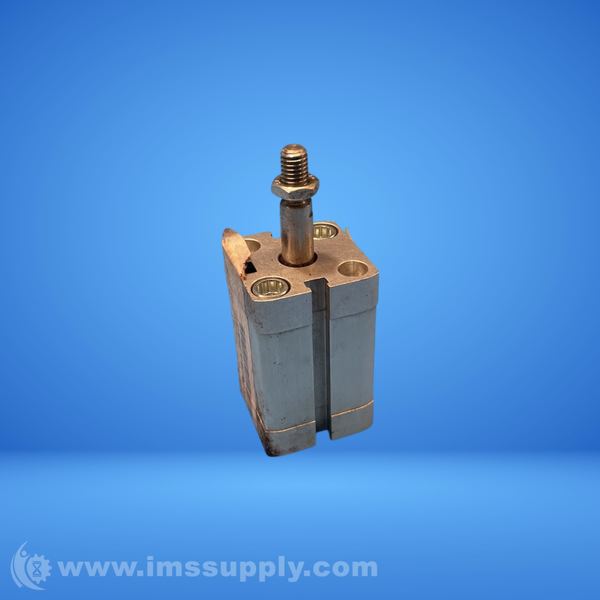

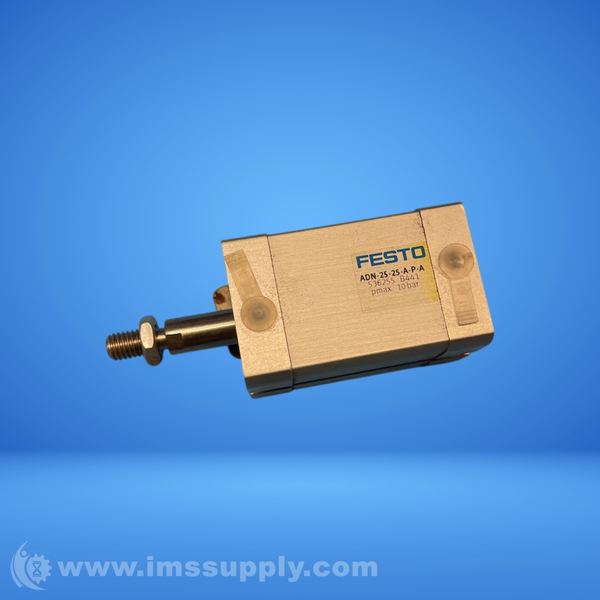

FESTO ADN-25-25-A-P-A COMPACT CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: ADN-25-25-A-P-A
IMS Product Code: 2132227
Packaging: Sold Individually
Description:
Festo ADN-25-25-A-P-A Compact Cylinder
Compact cylinder with 25mm piston diameter, 25mm stroke, and Male thread.
Specifications
- Type: ADN
- Size: 25
- Stroke: 25mm
- Pneumatic connection: M5
- Mounting type: With accessories
- Piston rod thread: M8
- Cushioning type: Pneumatic cushioning
- Operating pressure: 0.6 ... 10 bar
- Operating medium: Filtered compressed air, lubricated or unlubricated
- Operating temperature: -20 ... +80 degrees C
- Style: Compact
- Piston Diameter: 25 mm
- Cushioning: Flexible cushioning rings/plates at both ends
- Guide Rods: No
- Magnet: Yes
- Rod End: Male
- Mode of operation: Double-acting
- Corrosion resistance class: 2 - Moderate corrosion stress
- Cleanroom class: Class 6 according to ISO 14644-1
- Theoretical force at 0.6 MPa return stroke: 247N
- Theoretical force at 0.6 MPa advance stroke: 295N
- Moving mass: 57g
- Product weight: 246g
- Material collar screws: Steel
- Material cover: Anodised wrought aluminium alloy
- Material seals: TPE-U(PUR)
- Material piston rod: High-alloy steel
- Material cylinder barrel: Smooth-anodised wrought aluminium alloy
- Ambient temperature: -20 degrees C to 80 degrees C
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
