More Views

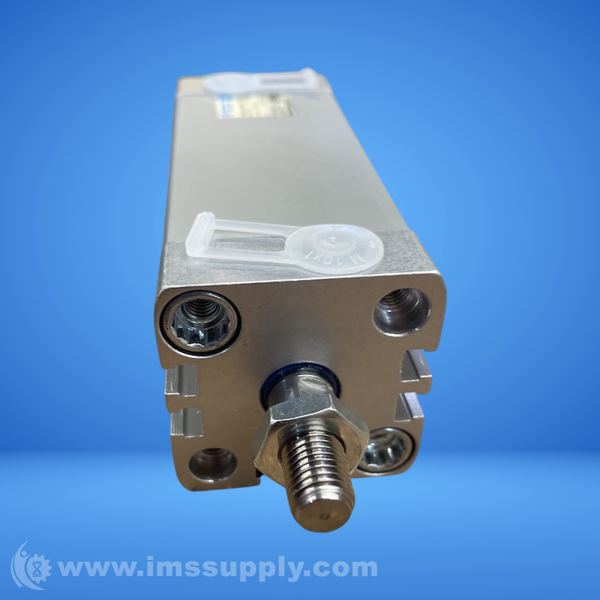

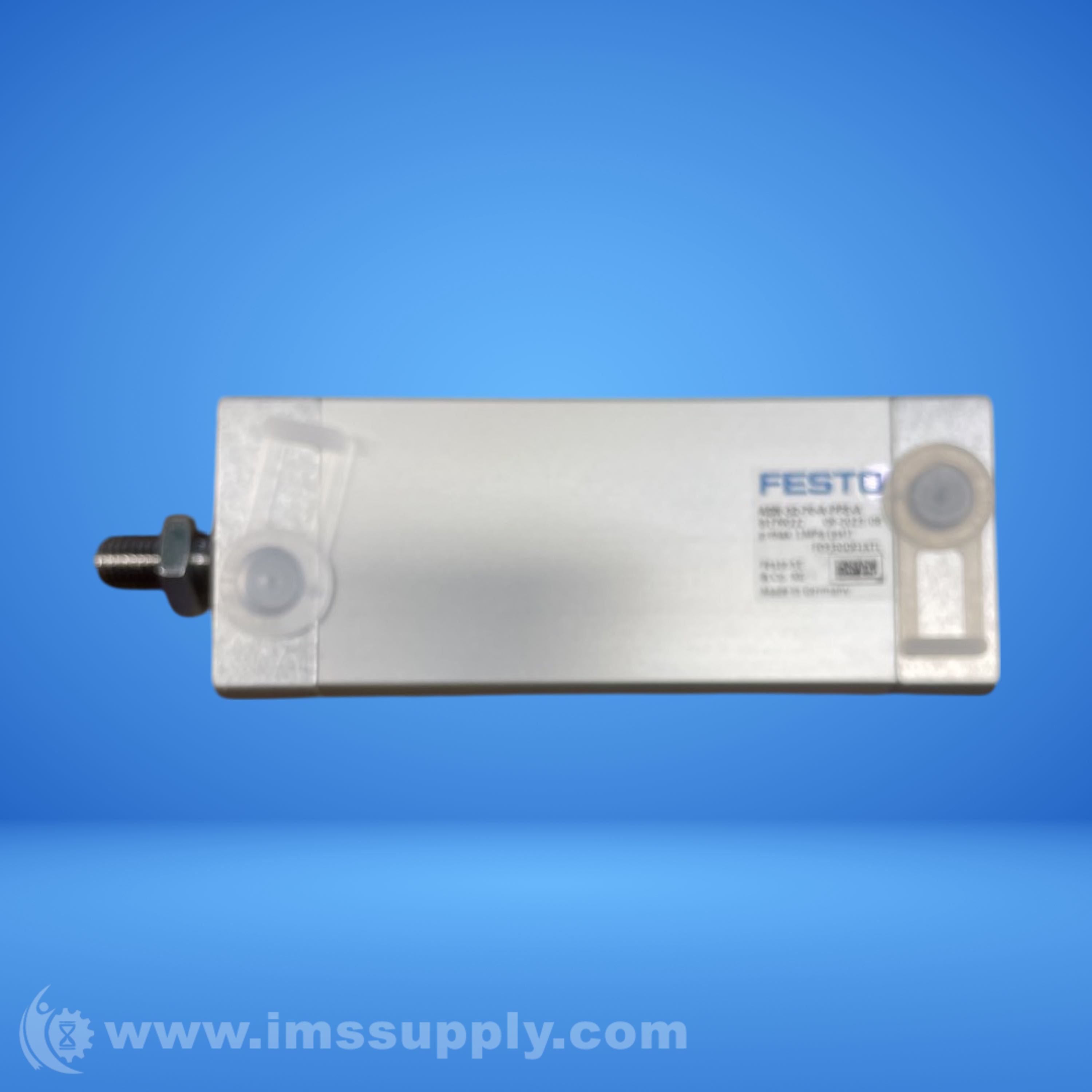

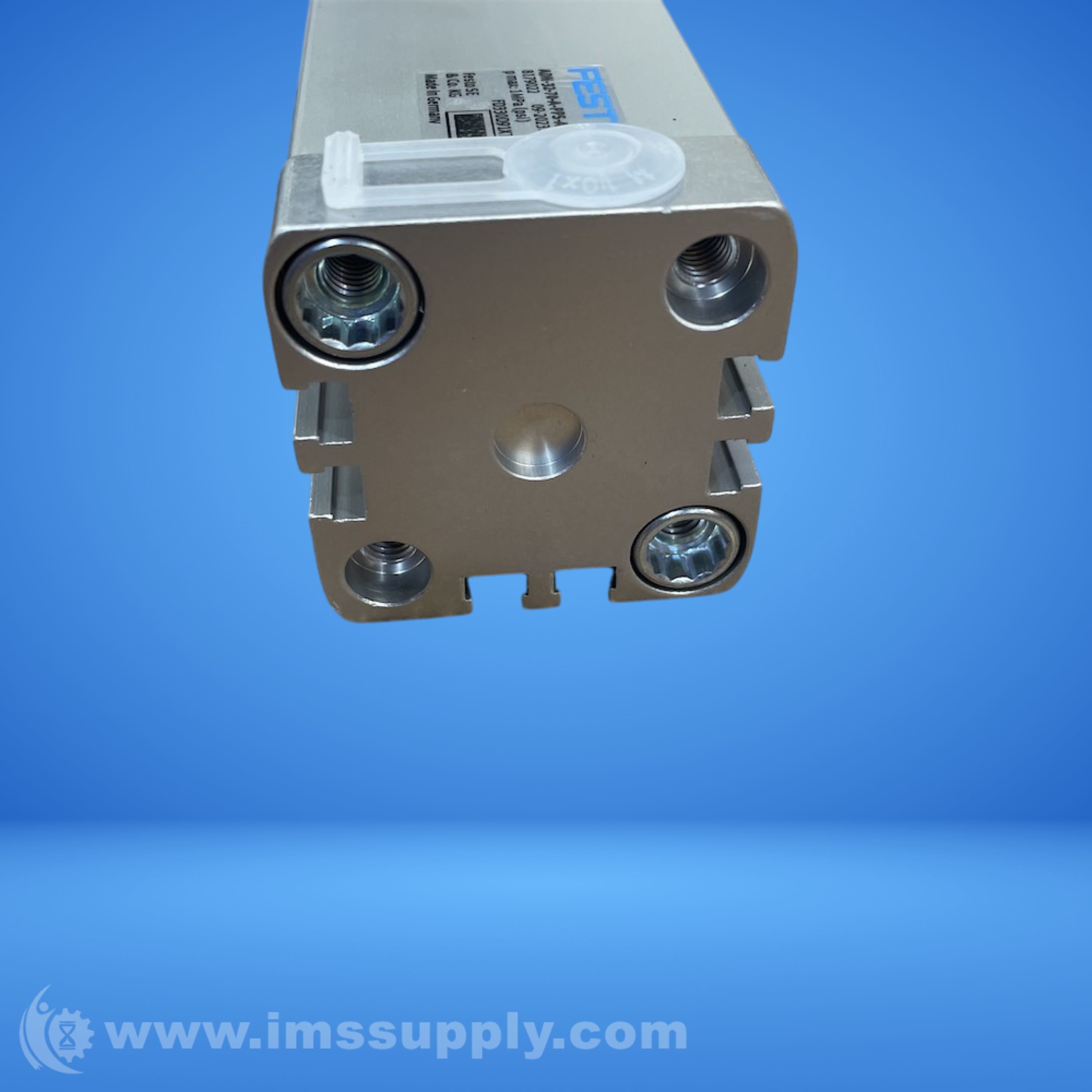

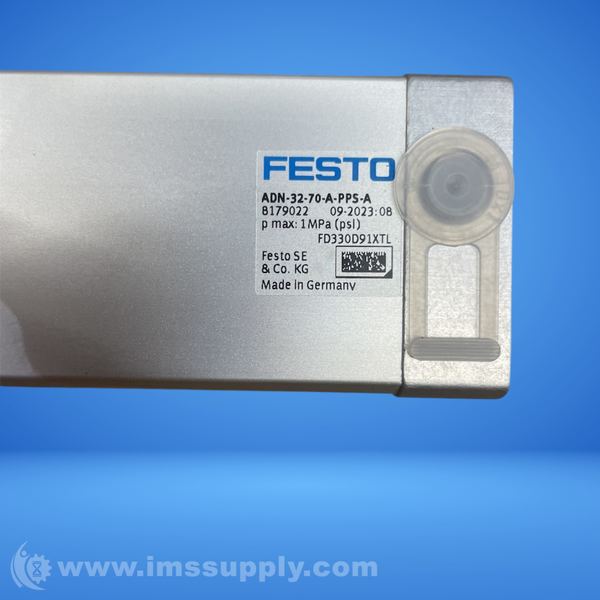

FESTO ADN-32-70-A-PPS-A COMPACT CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: ADN-32-70-A-PPS-A
IMS Product Code: 2127348
Packaging: Sold Individually
Description:
Festo ADN-32-70-A-PPS-A Compact Cylinder
Compact cylinder, double-acting, ISO 21287 compliant, with self-adjusting pneumatic end-position cushioning and external thread piston rod.
Specifications
- Stroke: 70mm
- Piston diameter: 32 mm
- Piston rod thread: M10x1.25
- Cushioning: Self-adjusting pneumatic end-position cushioning
- Mounting position: Any
- Conforms to standard: ISO 21287
- Piston rod end: External thread
- Position sensing: For proximity sensor
- Operating pressure: 0.15MPa / 1.5bar
- Mode of operation: Double-acting
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- Cleanroom class: Class 6 according to ISO 14644-1
- Ambient temperature: -20°C
- Theoretical force at 6 bar, retracting: 415N
- Theoretical force at 6 bar, advancing: 483N
- Pneumatic connection: G1/8
- Material of cylinder barrel: Wrought aluminum alloy, smooth-anodized
- Piston rod material: High-alloy steel
- Seals material: TPE-U(PUR)
- Cover material: Wrought aluminum alloy, anodized
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
