FESTO ADN-50-80-A-P-A COMPACT CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: ADN-50-80-A-P-A
IMS Product Code: 2127509
Packaging: Sold Individually
Description:

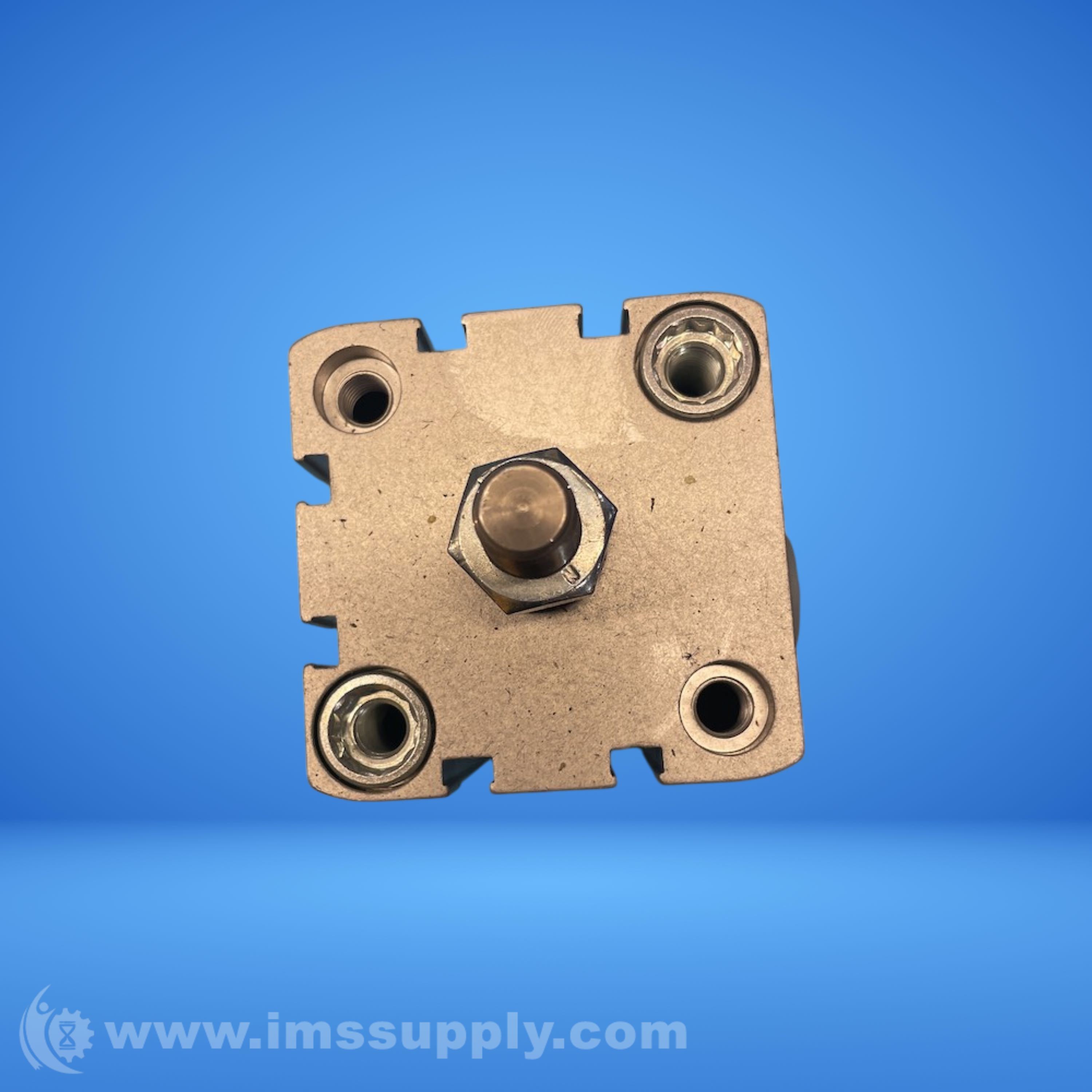

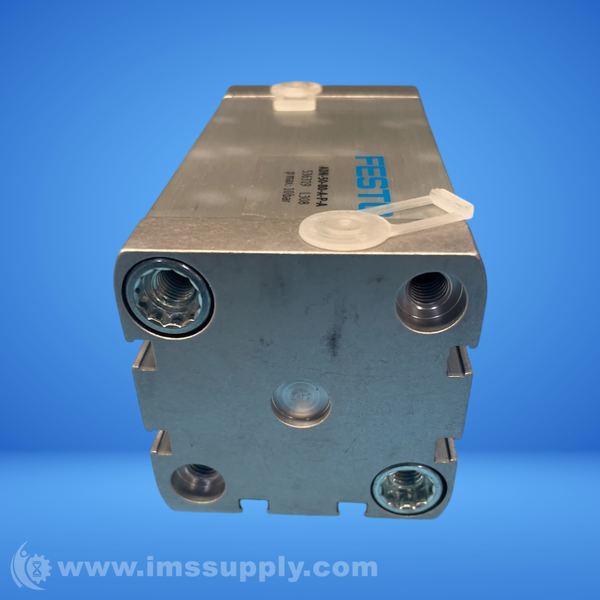

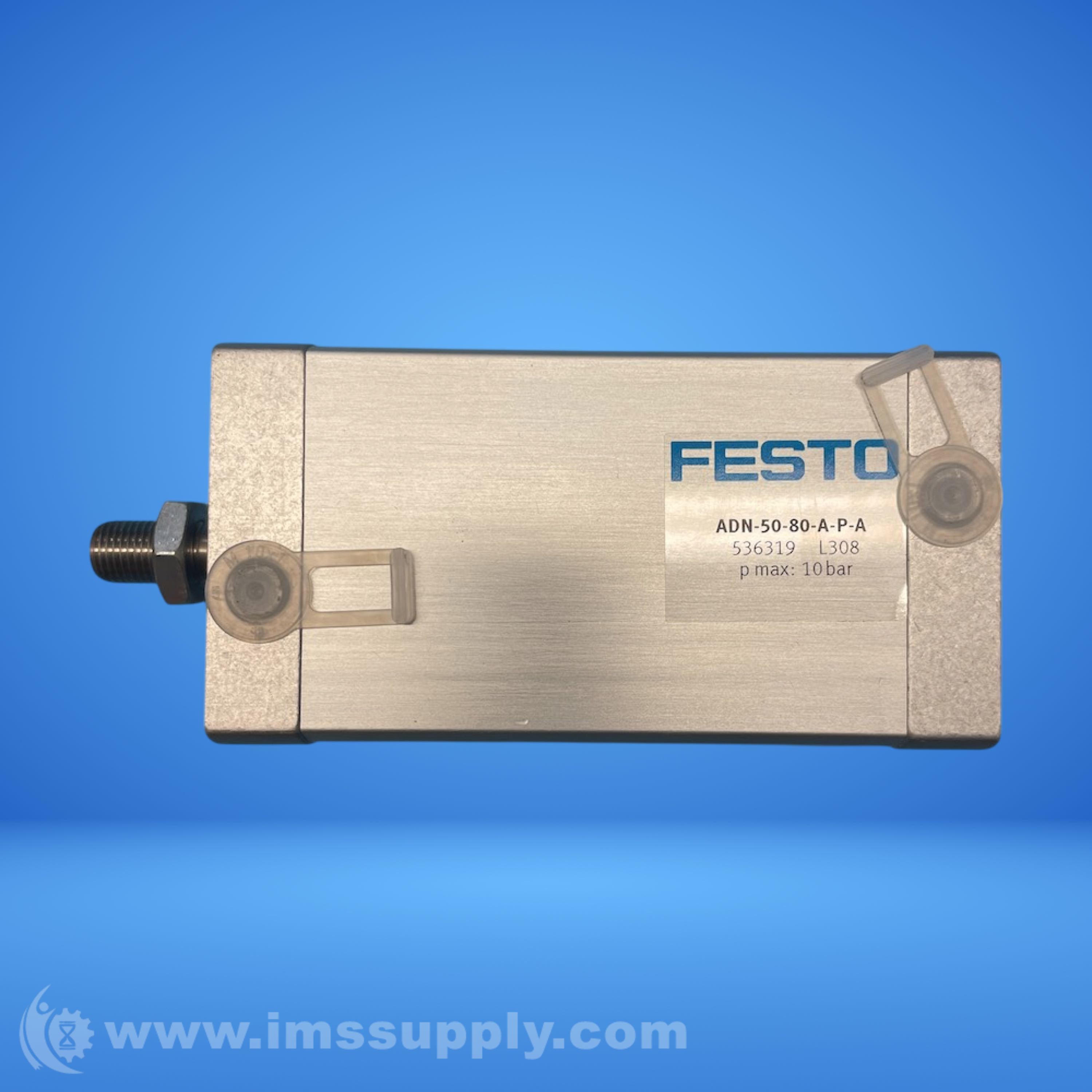

Festo ADN-50-80-A-P-A Compact Cylinder
Double-acting compact cylinder with 50mm piston diameter and 80mm stroke
Specifications
- Size: 50
- Stroke: 80 mm
- Pneumatic Connection: M5
- Mounting Type: Through-hole
- Cushioning Type: Pneumatic cushioning, self-adjusting
- Piston diameter: 50 mm
- Piston rod thread: M12x1.25
- Operating pressure: 0.6BAR / 10BAR
- Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC): 2 - Moderate corrosion stress
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 1057N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 1178N
- Moving mass: 293G
- Product weight: 942G
- Type of mounting: Either: with through-hole, via female thread, with accessories
- Material - Collar screws: Steel
- Material - Cover: Anodised wrought aluminium alloy
- Material - Seals: TPE-U(PUR)
- Material - Piston rod: High-alloy steel
- Material - Cylinder barrel: Smooth-anodised wrought aluminium alloy
- Ambient temperature: -20°C to 80°C
