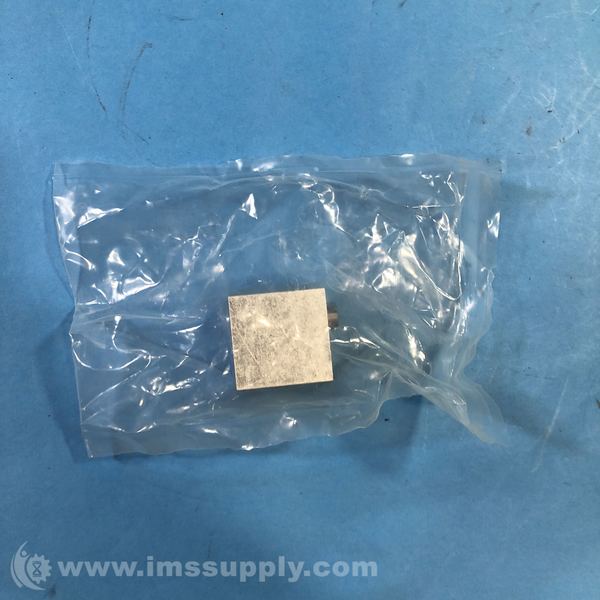

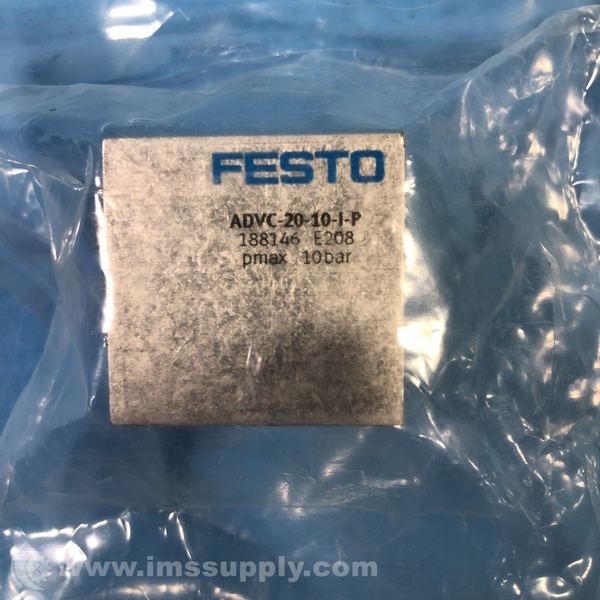

FESTO ADVC-20-10-I-P SHORT-STROKE CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: ADVC-20-10-I-P
IMS Product Code: 1910689
Packaging: Sold Individually
Description:
Festo ADVC-20-10-I-P Short-stroke Cylinder
Double-acting cylinder with pneumatic cushioning, 20mm piston diameter, and 10mm stroke.
Specifications
- Stroke: 10 mm
- Piston diameter: 20 mm
- Cushioning: Flexible cushioning rings/plates at both ends
- Mode of operation: Double-acting
- Operating pressure: 1 ... 10 bar
- Operating medium: Compressed air in accordance with ISO8573-1:2010 [7:4:4]
- Corrosion resistance classification CRC: 1 - Low corrosion stress
- Ambient temperature: -20 ... 80 degrees C
- Theoretical force at 6 bar, return stroke: 141 N
- Theoretical force at 6 bar, advance stroke: 189 N
- Product weight: 88 g
- Pneumatic connection: M5
- Material cover: Wrought aluminium alloy, Anodised
- Material seals: NBR, TPE-U(PU)
- Material housing: Wrought aluminium alloy, Anodised
- Material piston rod: High-alloy steel
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 56 minutes.
