FESTO ADVC-25-15-A-P-A SHORT-STROKE CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: ADVC-25-15-A-P-A
IMS Product Code: 2135160
Packaging: Sold Individually
Description:

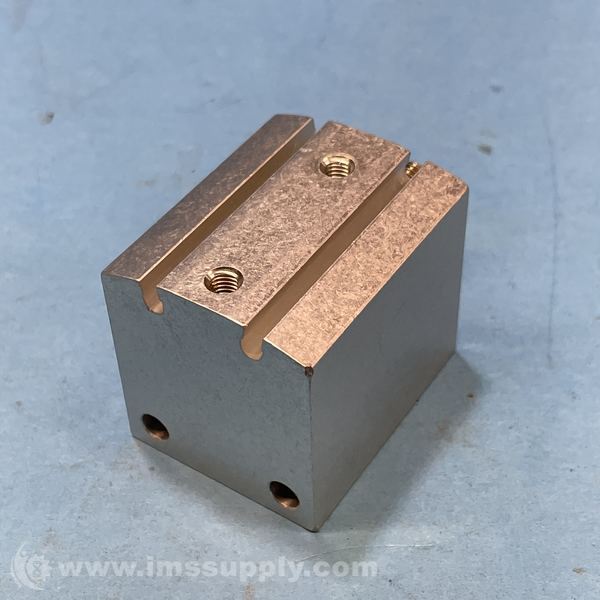

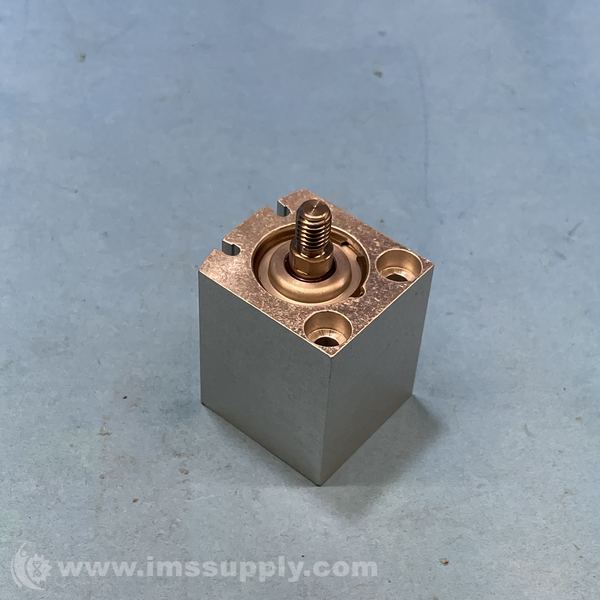

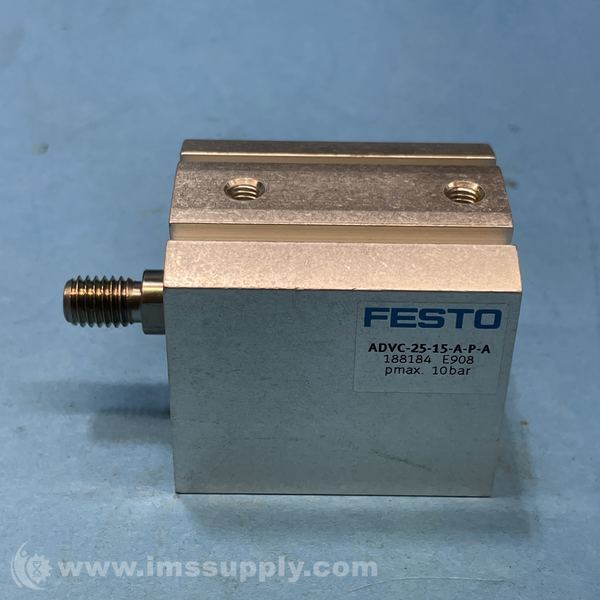

Festo ADVC-25-15-A-P-A Short-Stroke Cylinder
Double-acting pneumatic cylinder with 25mm bore, 15mm stroke, M5 port, and anodized aluminum construction
Specifications
- Cylinder Bore Size: 25 mm
- Stroke Length: 15 mm
- Cylinder Action: Double Acting
- Port Size: M5
- Pressure Rating: 1 to 10 bar
- Temperature Rating: -20 to 80 degrees C
- Mounting Type: Through Hole
- Material: Wrought Aluminum Alloy
- Finish: Anodized
- Dimensions: 38 mm L x 37 mm H
- Cushioning: Elastic cushioning rings/plates at both ends
- Operating Pressure: 0.1 MPa to 1 MPa (1 bar to 10 bar, 14.5 PSI to 145 PSI)
- Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion Resistance Class: 1 - Low corrosion stress
- Theoretical Force at 0.6 MPa (6 bar, 87 psi), Return Stroke: 247 N
- Theoretical Force at 0.6 MPa (6 bar, 87 psi), Advance Stroke: 295 N
- Moving Mass: 38 g
- Product Weight: 183 g
- Ambient Temperature: -20°C to 80°C
- Material Cover: Wrought aluminium alloy, Anodised
- Material Seals: TPE-U(PU)
- Material Housing: Wrought aluminium alloy, Anodised
- Material Piston Rod: High-alloy steel
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
