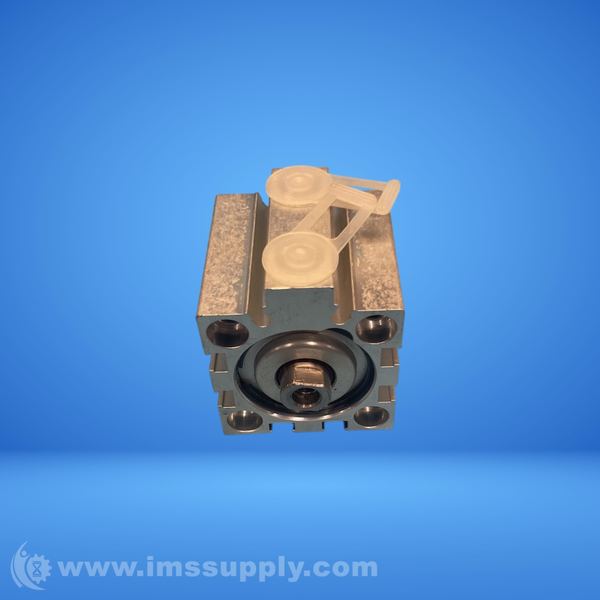

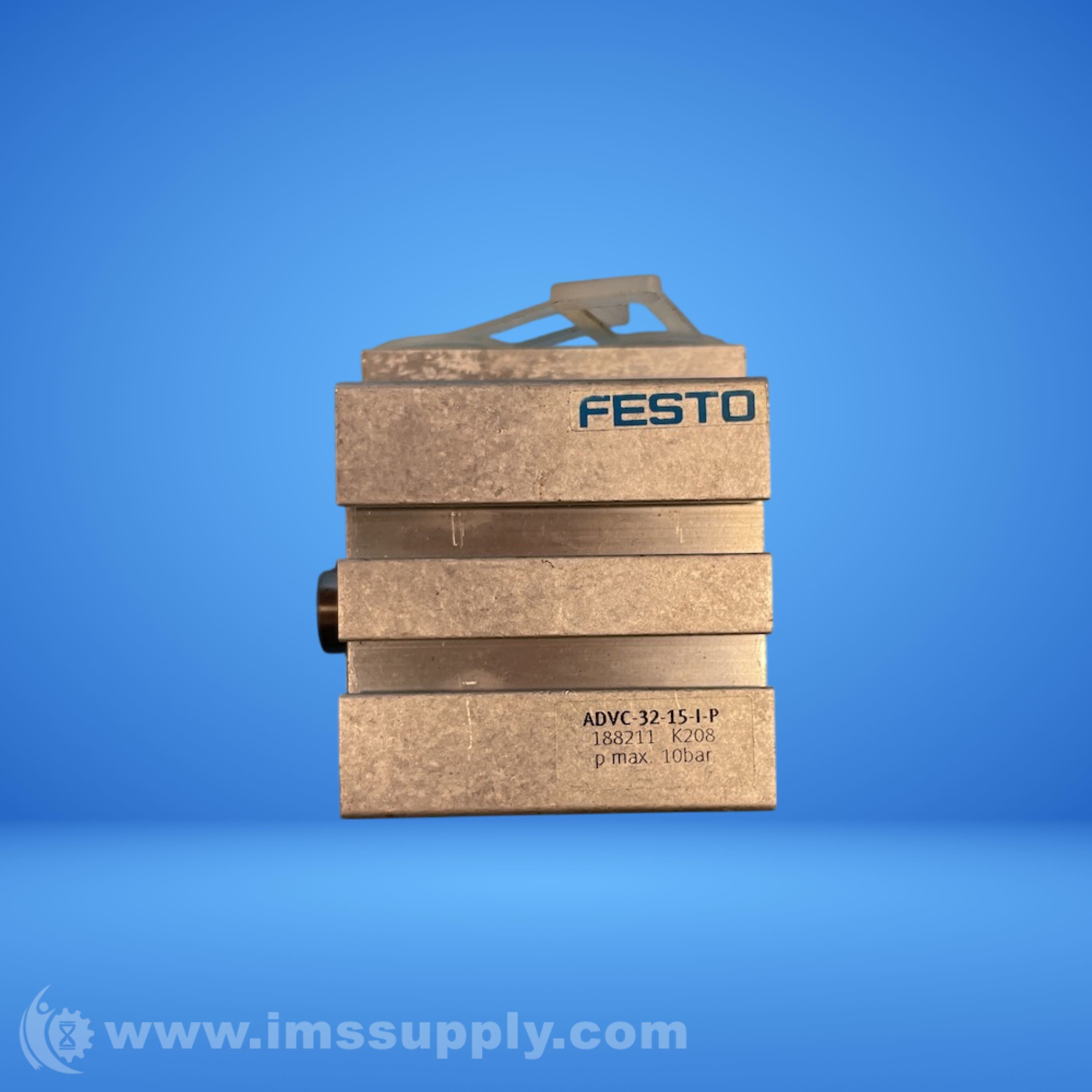

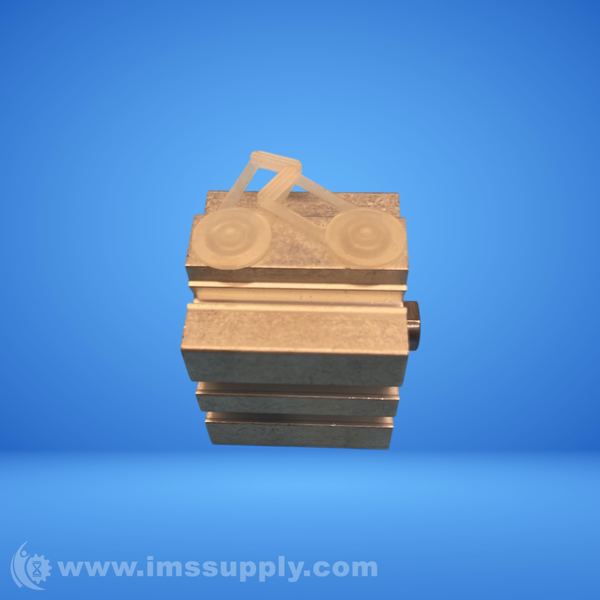

FESTO ADVC-32-15-I-P SHORT-STROKE CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: ADVC-32-15-I-P
IMS Product Code: 2129421
Packaging: Sold Individually
Description:
Festo ADVC-32-15-I-P Short-Stroke Cylinder
Double-acting short-stroke cylinder with 32mm piston diameter and 15mm stroke. Features pneumatic cushioning and G1/8 pneumatic connection. Made of wrought aluminum alloy with anodized finish.
Specifications
- Piston Diameter: 32 mm
- Stroke: 15 mm
- Mode of Operation: Double-acting
- Cushioning: Pneumatic cushioning
- Operating Pressure: 1 to 10 bar
- Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Theoretical Force at 6 bar: 415 N return / 483 N advance
- Ambient Temperature: -20 to 80 degrees C
- Pneumatic Connection: G1/8
- Material: Wrought Aluminum Alloy
- Finish: Anodized
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 44 minutes.
