FESTO ADVU-25-5-P-A COMPACT CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: ADVU-25-5-P-A
IMS Product Code: 1911823
Packaging: Sold Individually
Description:

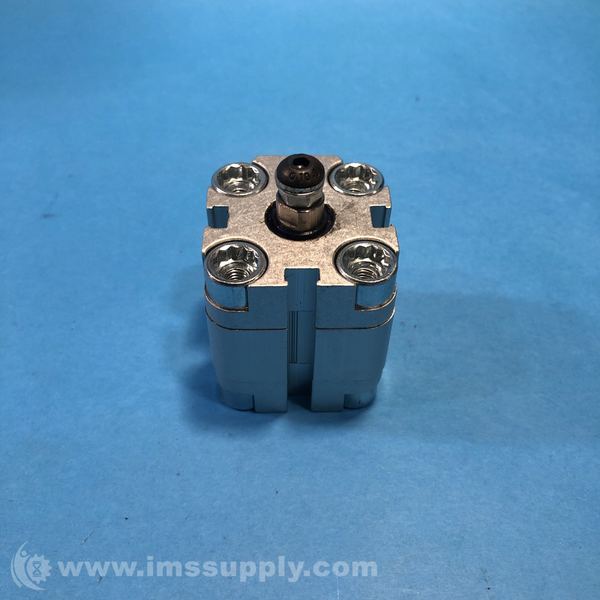

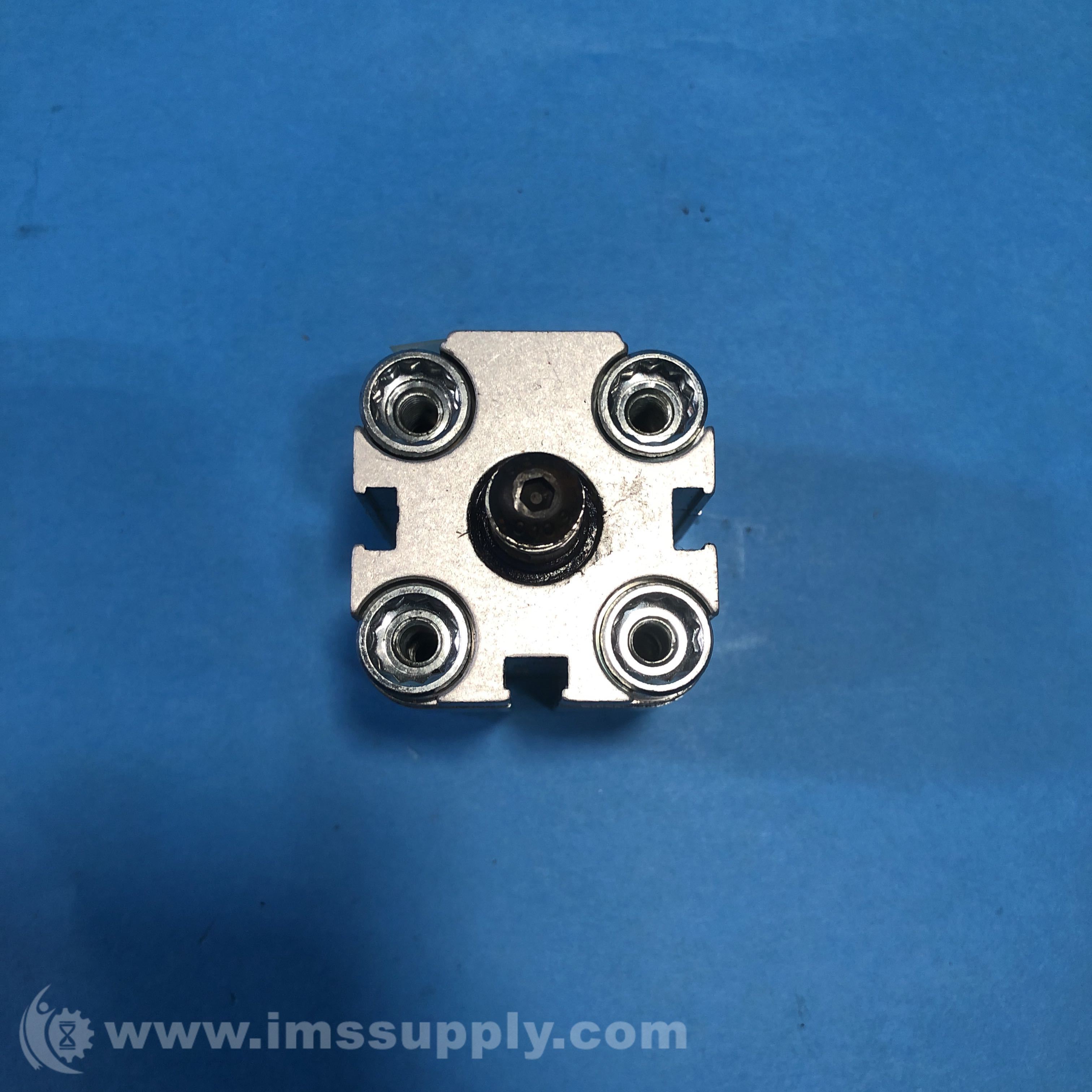

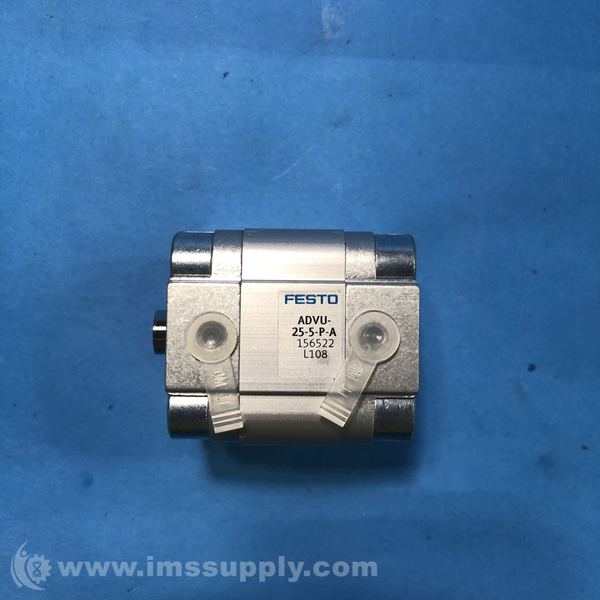

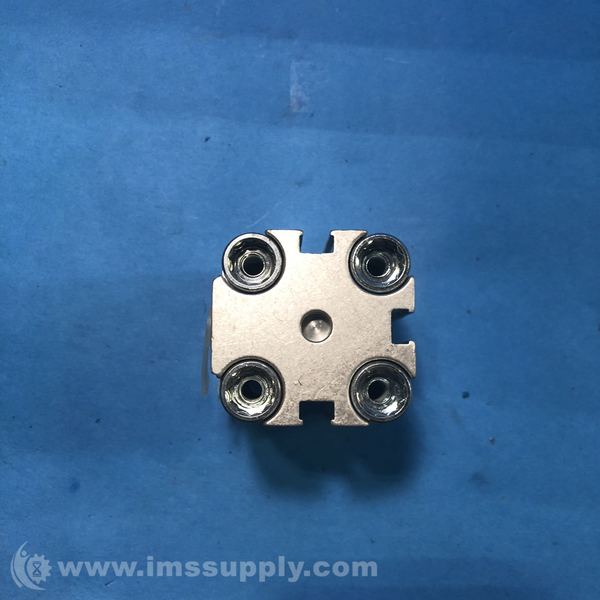

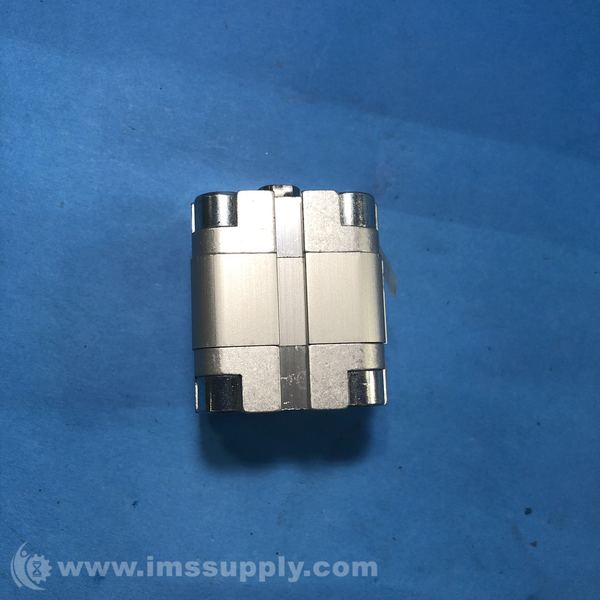

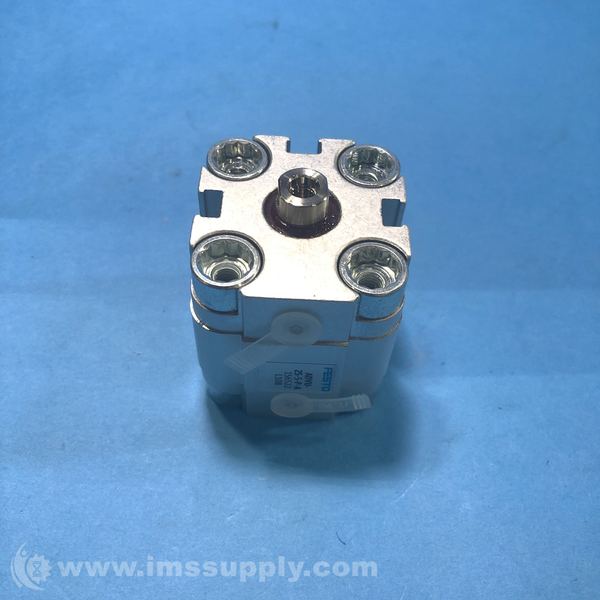

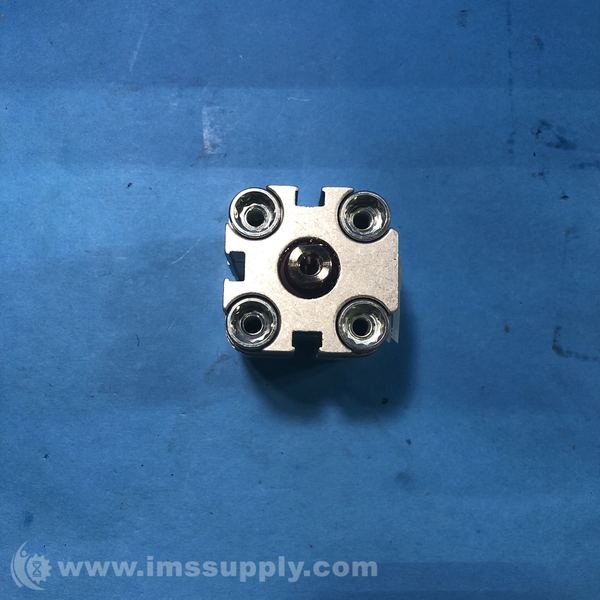

Festo ADVU-25-5-P-A Compact Cylinder
Double-acting compact cylinder with 25mm piston diameter, 5mm stroke, and female thread.
Specifications
- Series: ADVU
- Cylinder Bore Size: 25 mm
- Stroke Length: 5 mm
- Cylinder Action: Double Acting
- Maximum Force: 188 N
- Port Size: M5
- Pressure Rating: 1 to 10 bars
- Temperature Rating: -20 to 80 degrees C
- Cushioning Type: P
- Mounting Type: Through Hole
- Material: High Alloy Steel Piston Rod/Wrought Aluminum Alloy Housing
- Piston Diameter: 25 mm
- Stroke: 5 mm
- Cushioning: Elastic cushioning rings/plates at both ends
- Mode of Operation: Double-acting
- Piston Rod End: Female thread
- Operating Pressure: 0.1-10 BAR, 14.5-145 PSI
- Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion Resistance Class: 2 - Moderate
- Theoretical Force at 0.6 MPa (6 bar, 87 psi), Return Stroke: 247 N
- Theoretical Force at 0.6 MPa (6 bar, 87 psi), Advance Stroke: 295 N
- Moving Mass for 0 mm Stroke: 26 g
- Additional Moving Mass per 10 mm Stroke: 6 g
- Basic Weight for 0 mm Stroke: 180 g
- Additional Weight per 10 mm Stroke: 28 g
- Type of Mounting: Either: with through-hole or with accessories
- Material Collar Screws: Galvanised steel
- Material Cover: Wrought aluminium alloy
- Material Dynamic Seals: NBR, TPE-U(PU)
- Material Piston Rod: High-alloy stainless steel
- Material Cylinder Barrel: Wrought aluminium alloy
- Ambient Temperature: -20°C to 80°C
- Pneumatic Connection: M5
