FESTO ADVU-25-5-A-P-A COMPACT CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: ADVU-25-5A-P-A
IMS Product Code: 1911800
Packaging: Sold Individually
Description:

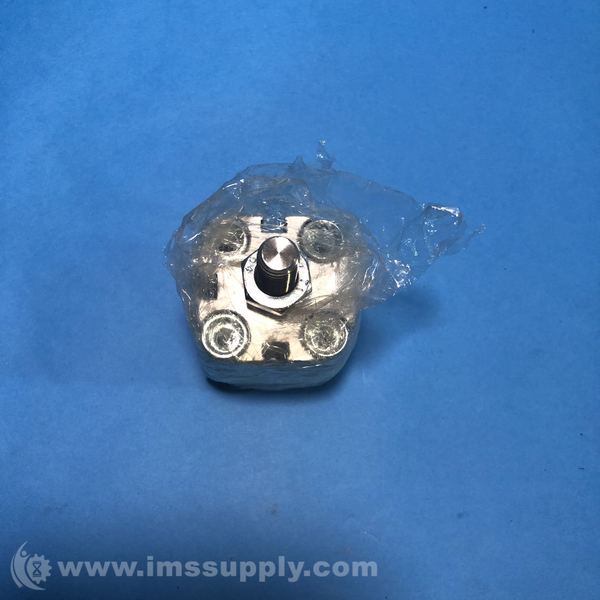

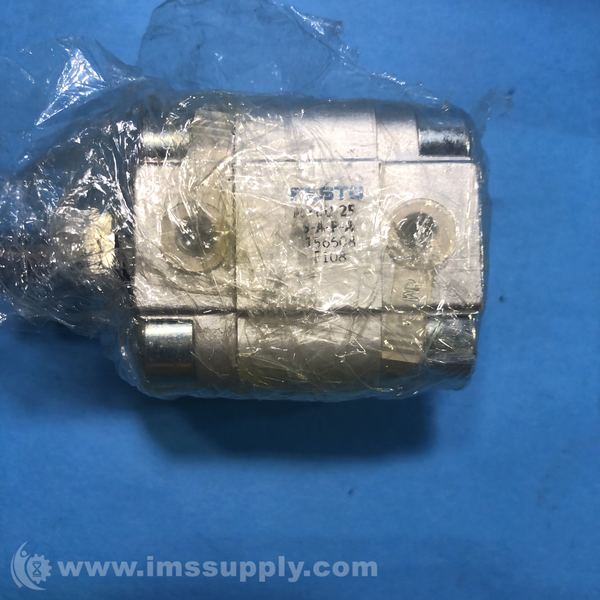

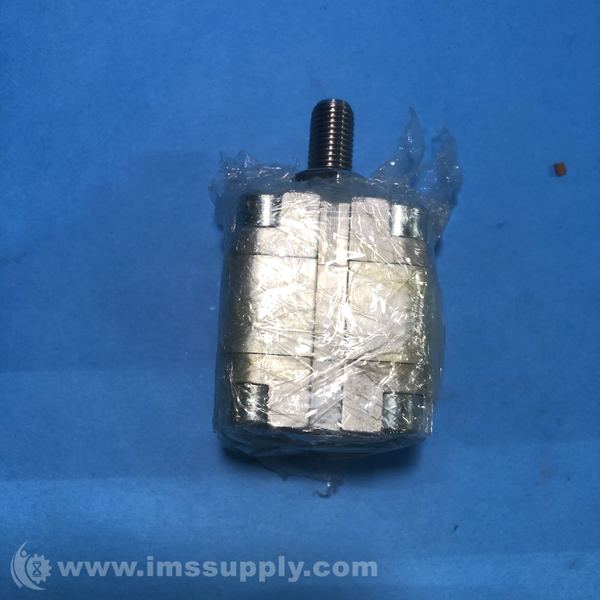

Festo ADVU-25-5-A-P-A Compact Cylinder
Double-acting compact cylinder with 25mm piston diameter, 5mm stroke, and Male thread.
Specifications
- Diameter: 25
- Stroke: 5
- Type: A
- Piston Diameter: 25mm
- Mode of Operation: Double-acting
- Piston Rod End: Male thread
- Cushioning: Elastic cushioning rings/plates at both ends
- Operating Pressure: 0.1MPA to 10BAR
- Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion Resistance Class: 2 - Moderate corrosion stress
- Theoretical Force at 0.6 MPa Return Stroke: 247N
- Theoretical Force at 0.6 MPa Advance Stroke: 295N
- Ambient Temperature: -20 degrees C to 80 degrees C
- Pneumatic Connection: M5
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
