FESTO AEVUZ-32-15-P-A COMPACT AIR CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: AEVUZ-32-15-P-A
IMS Product Code: 1911868
Packaging: Sold Individually
Description:

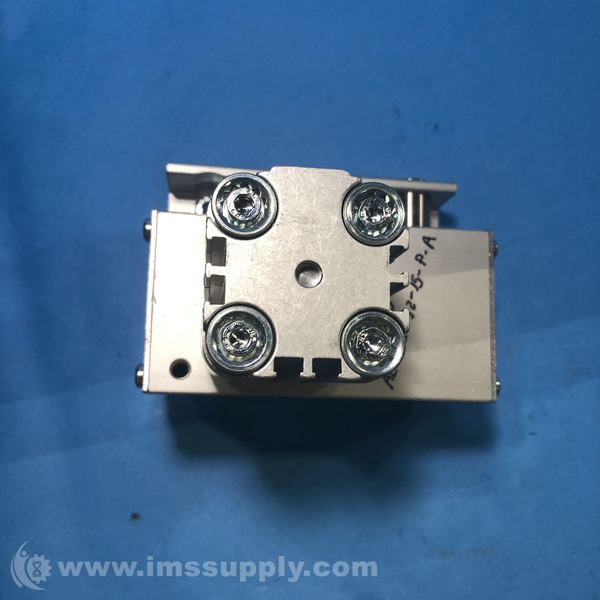

Festo AEVUZ-32-15-P-A Compact Air Cylinder
Single-acting, pulling compact cylinder with 32mm piston diameter, 15mm stroke, and Female thread.
Specifications
- Cylinder Type: Compact Air Cylinder
- Piston Diameter: 32 mm
- Stroke: 15 mm
- Mode of Operation: Single-acting
- Piston-Rod End: Female thread
- Operating Pressure: 0.8BAR/0.08MPA/11.6PSI - 10BAR/1MPA/145PSI
- Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion Resistance Class: 2 - Moderate
- Theoretical Force at 0.6 MPa: 382N
- Moving Mass for 0 mm Stroke: 49G
- Additional Moving Mass per 10 mm Stroke: 9G
- Basic Weight for 0 mm Stroke: 300G
- Additional Weight per 10 mm Stroke: 40G
- Type of Mounting: Either: With through-hole/With accessories
- Material Collar Screws: Galvanised steel
- Material Cover: Wrought aluminium alloy
- Material Dynamic Seals: NBR/TPE-U(PU)
- Material Piston Rod: High-alloy stainless steel
- Material Cylinder Barrel: Wrought aluminium alloy
- Ambient Temperature: -20 degrees C to 80 degrees C
- Pneumatic Connection: G1/8
New - Missing Box (Special):

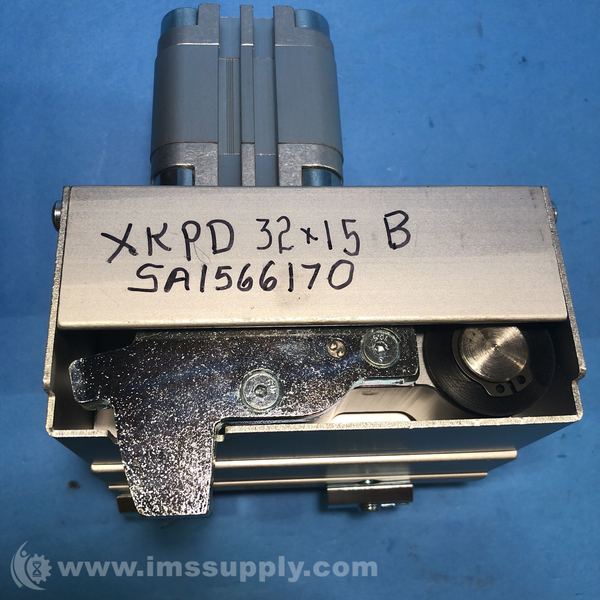

XKPD 32X15 B attached
Availability: 1 In Stock
Ships Tomorrow
