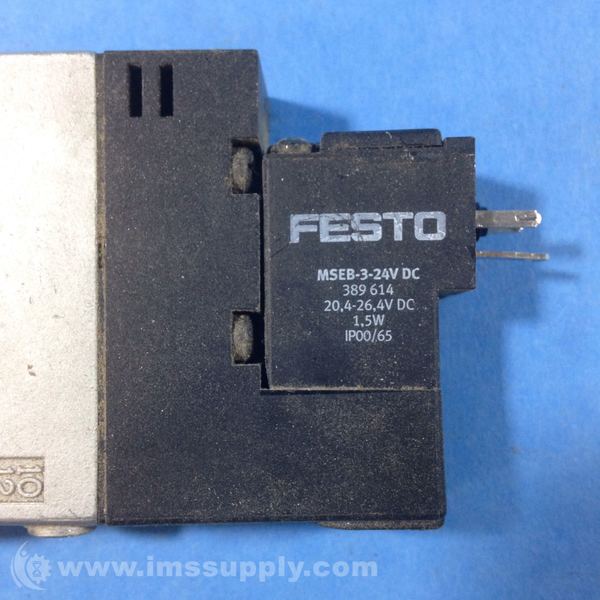

FESTO CPE18-M1H-3GLS-1/4 SOLENOID VALVE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: CPE18-M1H-3GLS-1/4
IMS Product Code: 1740072
Packaging: Sold Individually
Description:
Festo CPE18-M1H-3GLS-1/4 Solenoid Valve
18mm width 3/2-way valve, normally closed with G1/4 pneumatic connection and Plug pattern ZC electrical connection. External pilot air.
Specifications
- actuation_type: Electric
- ambient_temperature: -5GC to 50GC
- approval: C UL us - Recognized (OL)
- assembly_position: Any
- certificate_issuing_authority: DNV-TAA000032X, UL MH19482
- coil_data: 24 V DC: 1.5 W
- construction_width: 18MM
- corrosion_resistance_class: 2 - Moderate corrosion stress
- degree_of_protection: IP65
- design_structure: Piston slide
- duty_cycle: 100%
- electrical_connection: Type C
- flow_direction: Non-reversible
- lap: Overlap
- lABS_conformity: VDMA24364-B1/B2-L
- lubricated_operation: Possible
- manual_override: Detenting via accessory, Non-detenting
- material_housing: Die-cast aluminium
- material_seals: NBR
- media_temperature: -5GC to 50GC
- mounting_position: Optional
- mounting_type: With through-hole
- nominal_flow_rate: 1300L2
- nominal_size: 8MM
- operating_medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- operating_pressure: -0.09MPA to 1MPA
- operating_pressure_bar: -0.9BAR to 10BAR
- permissible_voltage_fluctuations: -15%/+10%
- piloting_type: Pilot actuated
- pilot_air_port: M5 12
- pilot_air_supply: External
- pilot_exhaust_port: M5 82
- pilot_medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- pilot_pressure: 0.25MPA to 1MPA
- pilot_pressure_bar: 2.5BAR to 10BAR
- pneumatic_connection: G1/4
- product_weight: 150G
- reset_type: Pneumatic spring
- sealing_principle: Soft sealing
- shock_resistance: Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- switching_time_off: 18MS
- switching_time_on: 28MS
- type_of_actuation: electrical
- type_of_reset: Air spring
- valve_design: Piston gate valve
- valve_function: 3/2-way, closed, monostable
- vibration_resistance: Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- width: 18 mm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 3 hours and 25 minutes.
