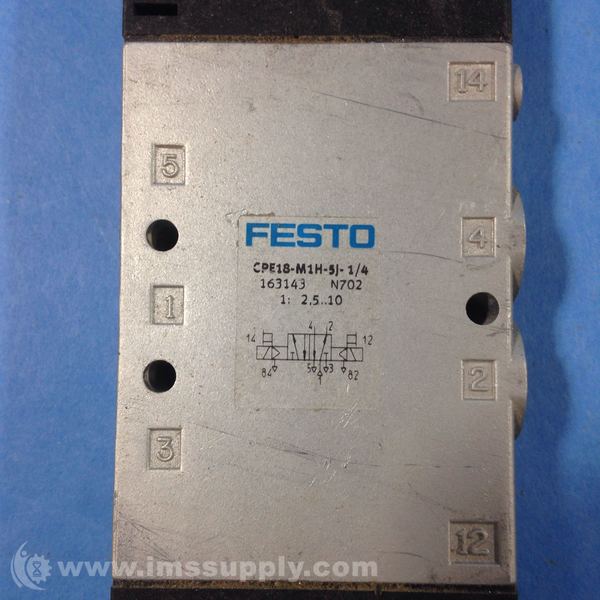

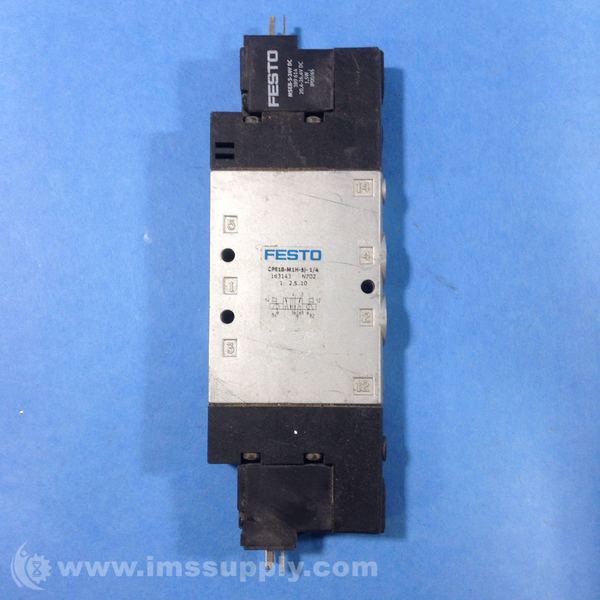

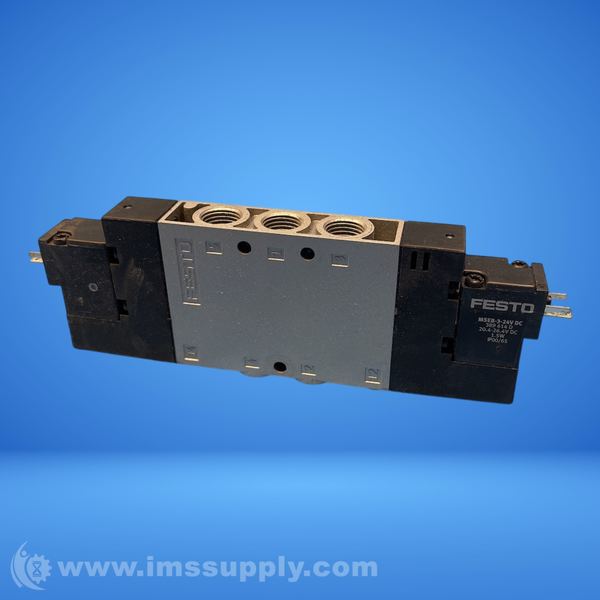

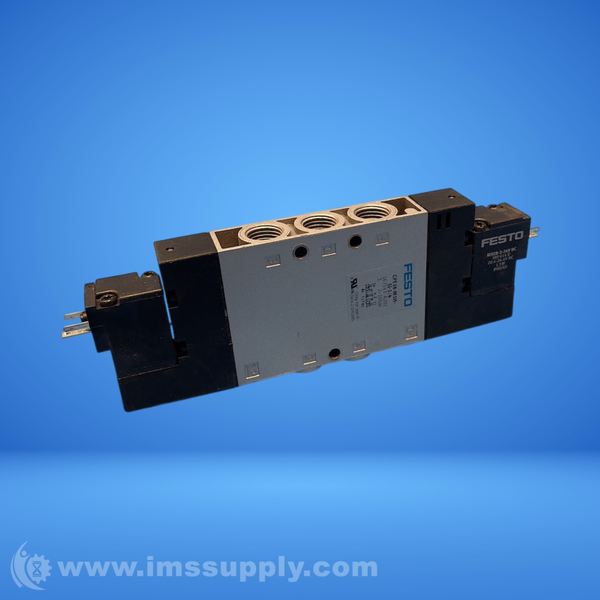

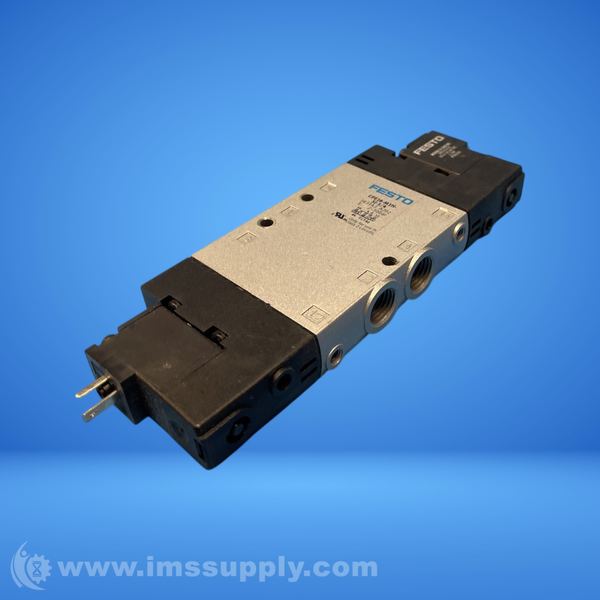

FESTO CPE18-M1H-5J-1/4 PNEUMATIC SOLENOID VALVE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: CPE18-M1H-5J-1/4
IMS Product Code: 1740068
Packaging: Sold Individually
Description:
Festo CPE18-M1H-5J-1/4 Pneumatic Solenoid Valve
Pneumatic solenoid valve
Specifications
- type: solenoid valve
- size: 18mm
- actuation: pneumatic
- connection: 1/4 inch
- series: CPE
- width: 18 mm
- nominal operating voltage: 24 V DC
- electrical connection: Plug pattern ZC
- valve function: 5/2-way valve, bistable
- pneumatic connection: G1/4
- type of actuation: Electric
- standard nominal flow rate: 1.500 l/min
- design: Piston gate valve
- nominal size: 8 mm
- sealing principle: Soft
- manual override: Detenting via accessory Non-detenting
- pilot air supply: Internal
- symbol: 991,013
- lap: Positive overlap
- duty cycle: 100%
- max. negative test pulse with 1 signal: 3.100 µs
- permissible voltage fluctuations: -15%/+10%
- media temperature: -5 degrees C ... 50 degrees C
- product weight: 270 g
- type of mounting: With through-hole
- pilot exhaust port 84: M5
- pilot air port 14: M5
- pneumatic connection, port 2: G1/4
- pneumatic connection, port 4: G1/4
- material seals: NBR
- construction width: 18 mm
- pneumatic working port: G1/4
- operating pressure: 2 bar ... 10 bar
- approval: c UL us - Recognized (OL)
- degree of protection: IP65 With plug socket To IEC 60529
- exhaust-air function: With flow control option
- mounting position: optional
- type of piloting: Pilot actuated
- flow direction: Non-reversible
- valve position code: Inscription label holder
- switching time reversal: 13 ms
- max. positive test pulse with 0 signal: 3.300 µs
- characteristic coil data: 24 V DC: 1.5 W
- operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- vibration resistance: Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- corrosion resistance class CRC: 2 - Moderate corrosion stress
- ambient temperature: -5 degrees C ... 50 degrees C
- pilot exhaust port 82: M5
- pilot air port 12: M5
- pneumatic connection, port 1: G1/4
- pneumatic connection, port 3: G1/4
- material housing: Die-cast aluminium

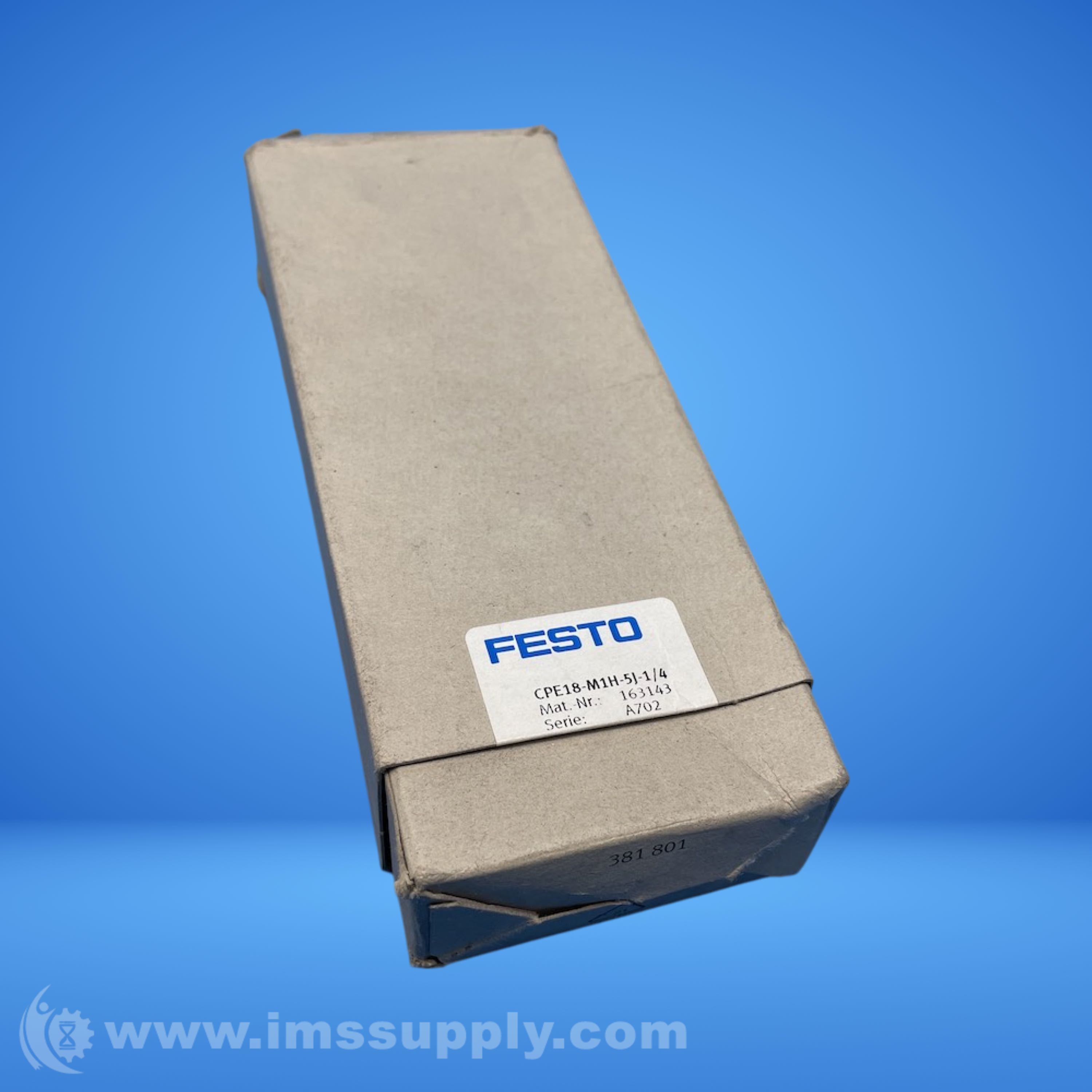

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
