FESTO CPE24-M1H-3GLS-3/8 SOLENOID VALVE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: CPE24-M1H-3GLS-3/8
IMS Product Code: 1740071
Packaging: Sold Individually
Description:

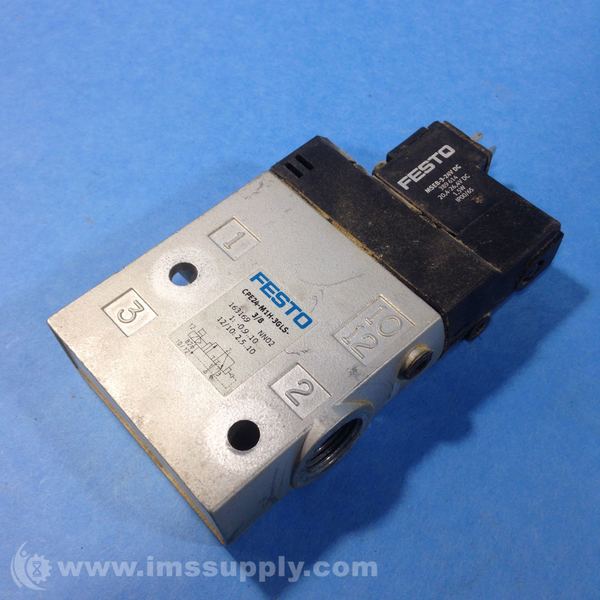

Festo CPE24-M1H-3GLS-3/8 Solenoid Valve
3-way, 2-position solenoid valve with electrical actuation and pneumatic spring return. Die-cast aluminum body with NBR seals. G3/8 ports. 24V DC operation. -0.9 to 10 bar pressure range. Compact performance series.
Specifications
- Series: CPE
- Nominal Size: 11 mm
- Port Size: G3/8
- Pressure Rating: -0.9 to 10 bar
- Temperature Rating: -5 to 50 degrees C
- Flow Rate: 2500 Lpm
- Number of Ways: 3
- Number of Positions: 2
- Media: Compressed Air
- Actuator Type: Electrical
- Body Material: Die-Cast Aluminum
- Softgoods Material: NBR
- Dimensions: 62 mm L x 24 mm W
- Operating Voltage: 24V DC
- Operating Pressure: -0.09 MPa ... 1 MPa
- Degree of Protection: IP65
- Product Weight: 220 g
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
