FESTO CPE24-M1H-5LS-3/8 SOLENOID VALVE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: CPE24-M1H-5LS-3/8
IMS Product Code: 1751743
Packaging: Sold Individually
Description:
Festo CPE24-M1H-5LS-3/8 Solenoid Valve
3/2-way monostable solenoid valve with external pilot air and G3/8 pneumatic connection.
Specifications
- Nominal Operating Voltage: 24 VDC
- Valve Function: 3/2-Way, Monostable
- Pilot Air: External Pilot Air
- Pneumatic Connection: G3/8
- Width: 24 mm
- Operating Pressure: -0.9 bar ... 10 bar
- Type of Reset: Pneumatic spring
- Nominal Size: 11 mm
- Sealing Principle: Soft
- Manual Override: Detenting via accessory
- Pilot Air Supply: External
- Standard Nominal Flow Rate: 2900 l/min
- Material Housing: Die-cast aluminium
- Material Seals: NBR
- Product Weight: 360 g
- Type of Mounting: With through-hole
- Degree of Protection: IP65
Used (Special):

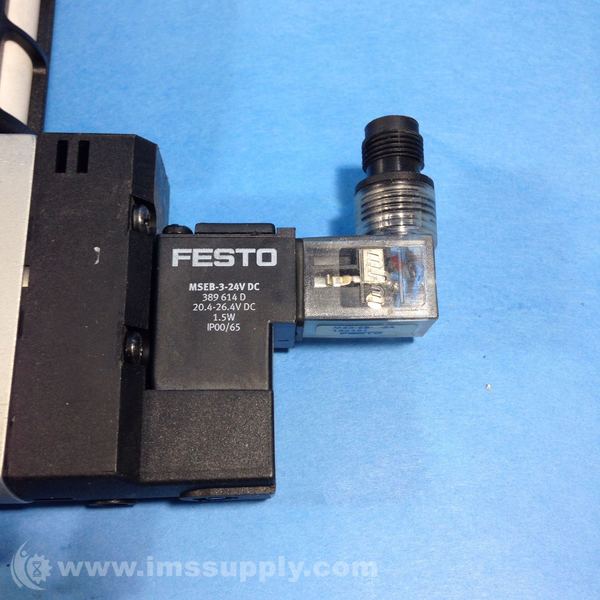

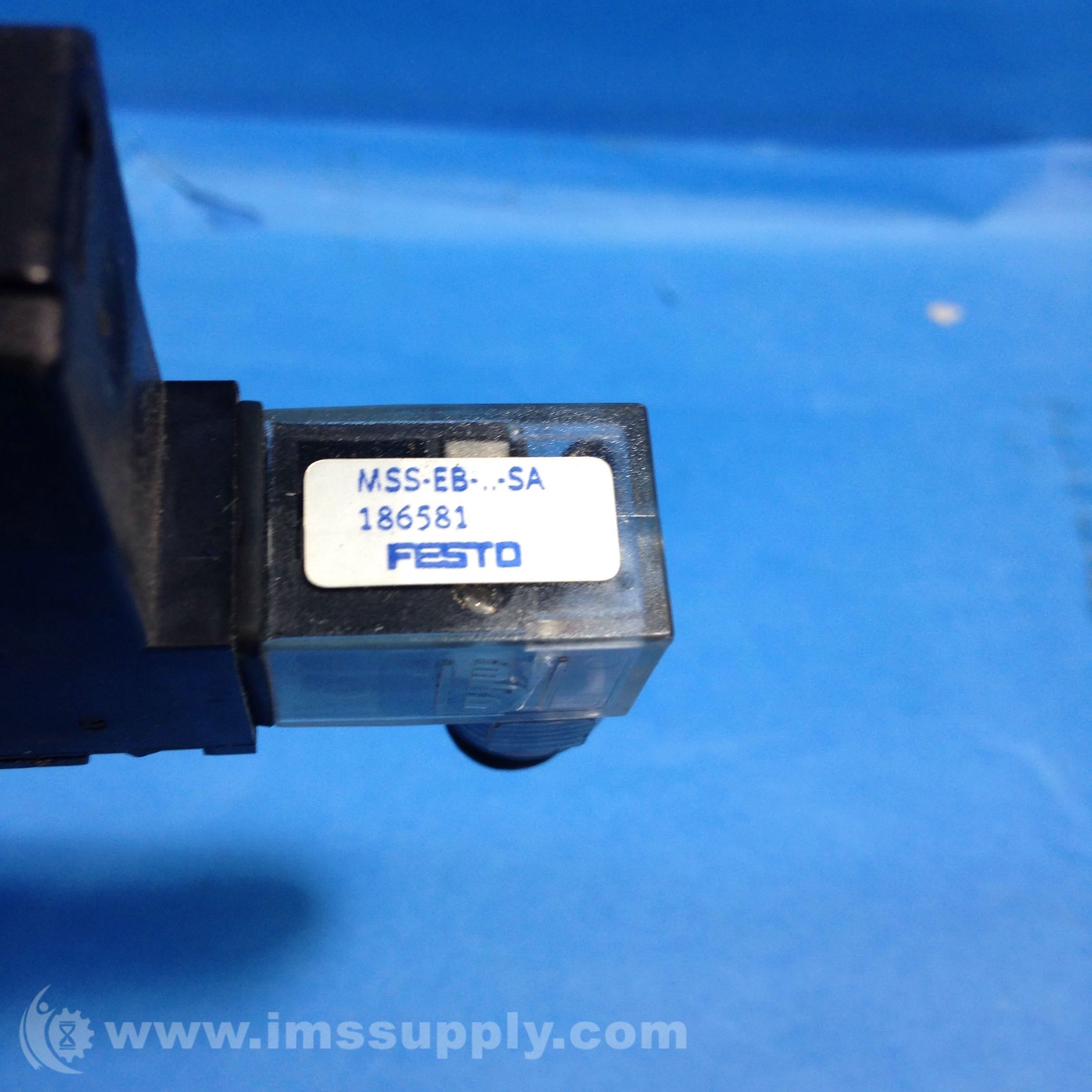

ADDITIONAL ATTACHED PARTS INCLUDE: FESTO MSEB-3-24V DC, 2 FESTO 2309, FESTO MSS-EB-SA186581, AND ADDITIONAL PERIPHERAL PARTS.
