FESTO CRDSNU-12-25-P-A STAINLESS STEEL AIR CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: CRDSNU-12-25-P-A
IMS Product Code: 2130322
Packaging: Sold Individually
Description:

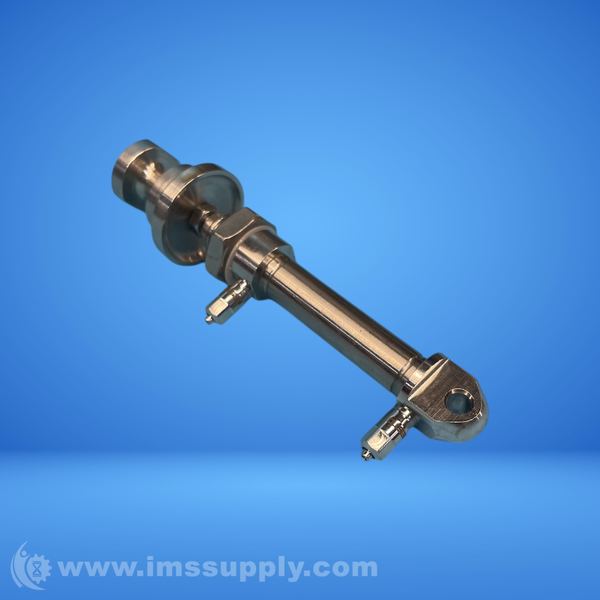

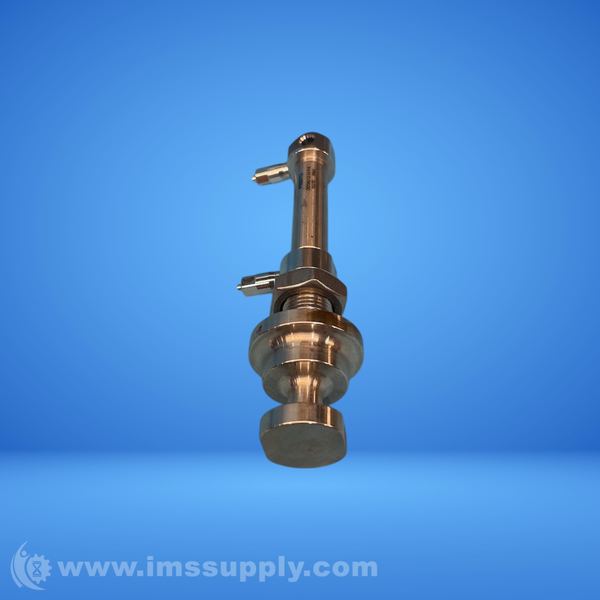

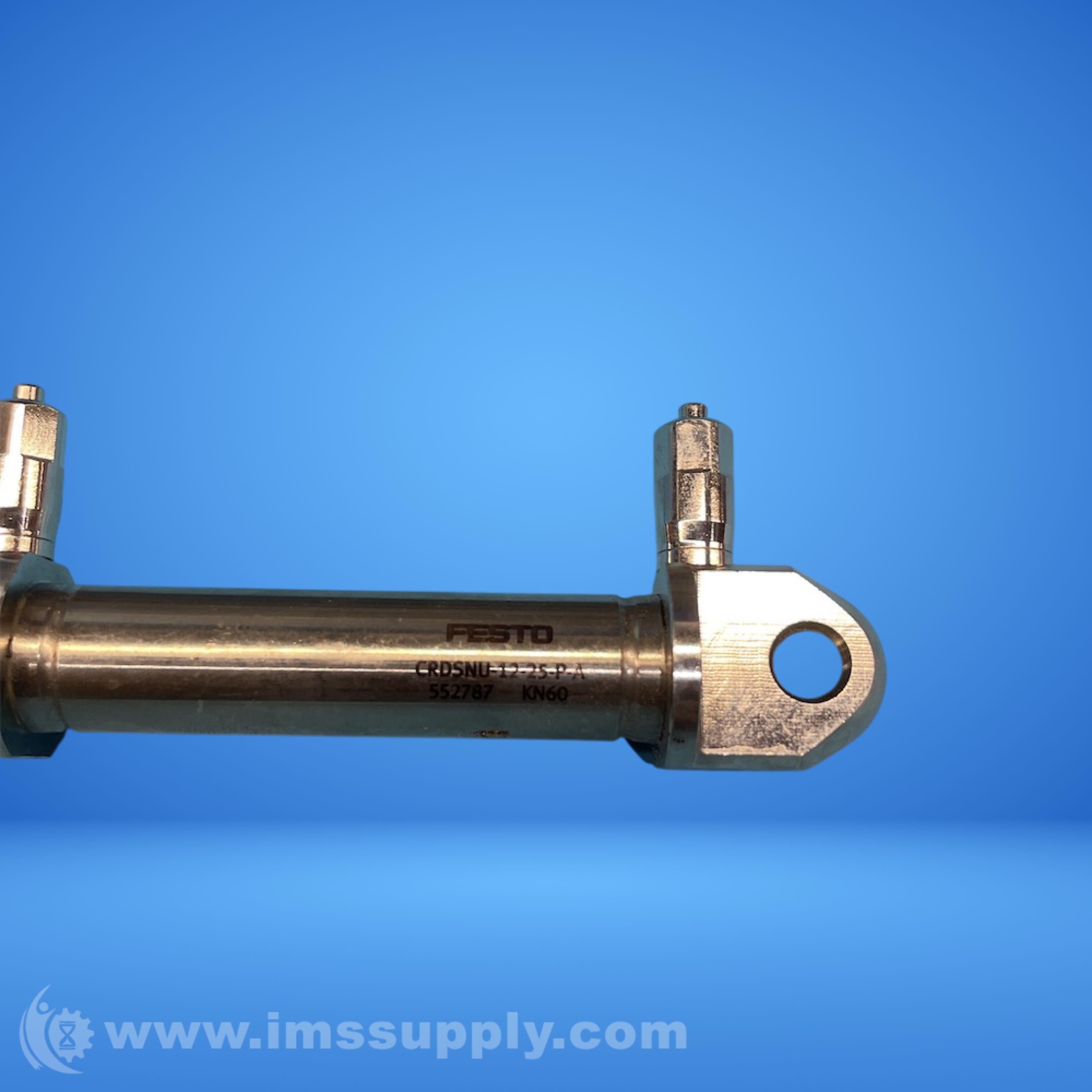

Festo CRDSNU-12-25-P-A Stainless Steel Air Cylinder
Double-acting stainless steel air cylinder with 12mm piston diameter and 25mm stroke, conforming to ISO 6432 standard.
Specifications
- Stroke: 25 mm
- Piston diameter: 12 mm
- Piston rod thread: M6
- Cushioning: Elastic cushioning rings/pads at both ends
- Mounting position: Any
- Operating pressure: 0.1 MPa … 1 MPa
- Mode of operation: Double-acting
- Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC): 3 – high corrosion stress
- Ambient temperature: -20 degrees C … 80 degrees C
- Pneumatic connection: M5
- Cover material: High-alloy stainless steel
- Piston rod material: High-alloy stainless steel
- Material of cylinder barrel: High-alloy stainless steel
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
