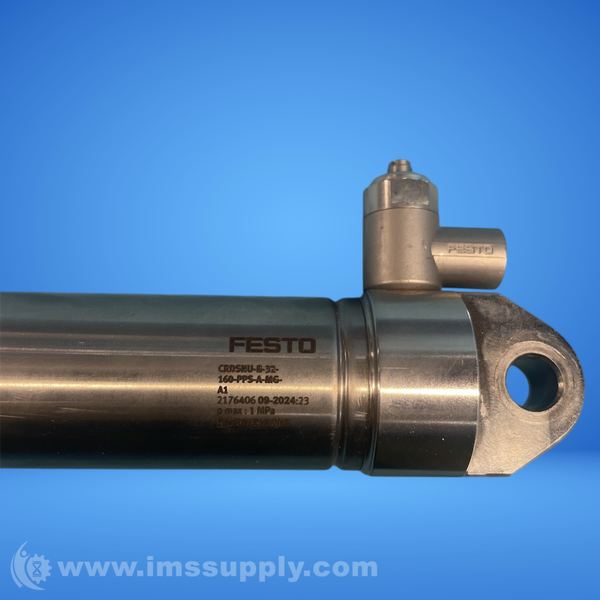

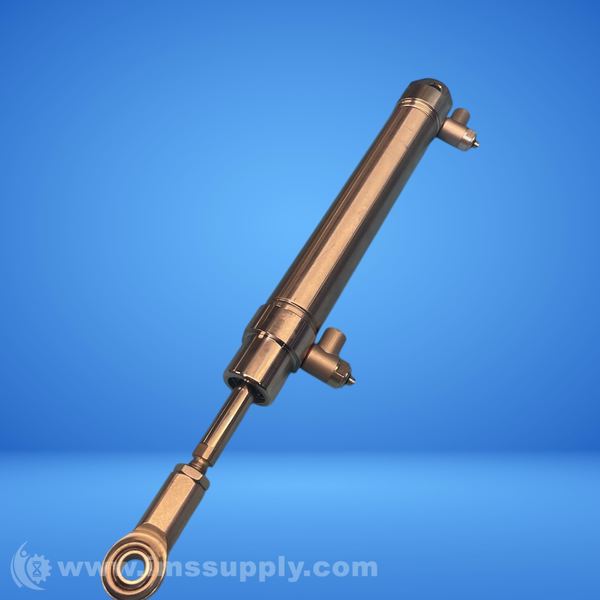

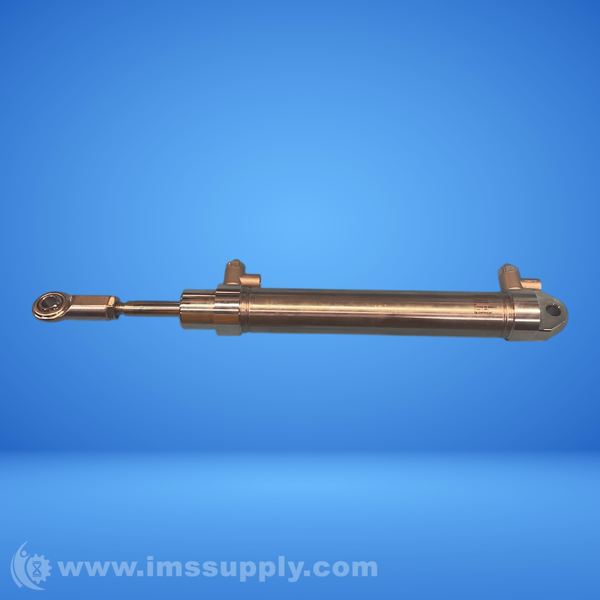

FESTO CRDSNU-B-32-160-PPS-A-MG-A1 ROUND CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: CRDSNU-B-32-160-PPS-A-MG-A1
IMS Product Code: 2146980
Packaging: Sold Individually
Description:
Festo CRDSNU-B-32-160-PPS-A-MG-A1 Round Cylinder
Round standards-based cylinder with 32mm piston diameter and 160mm stroke. Double-acting with self-adjusting pneumatic cushioning at both ends.
Specifications
- Piston Diameter: 32 mm
- Stroke: 160 mm
- Standard: ISO 15552
- Cushioning: Self-adjusting pneumatic end-position cushioning
- Operating Pressure: 0.1 MPa to 1 MPa
- Mode of Operation: Double-acting
- Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion Resistance Class: 4 - Very high
- Theoretical Force at 0.6 MPa (6 bar, 87 psi) - Return Stroke: 415 N
- Theoretical Force at 0.6 MPa (6 bar, 87 psi) - Advance Stroke: 483 N
- Moving Mass for 0 mm Stroke: 118 g
- Additional Moving Mass per 10 mm Stroke: 8.9 g
- Basic Weight for 0 mm Stroke: 670 g
- Additional Weight per 10 mm Stroke: 15.3 g
- Pneumatic Connection: G1/8
- Ambient Temperature: 0 degrees C to 80 degrees C
- Material - Cover: High-alloy stainless steel
- Material - Piston Rod: High-alloy stainless steel
- Material - Cylinder Barrel: High-alloy stainless steel
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
