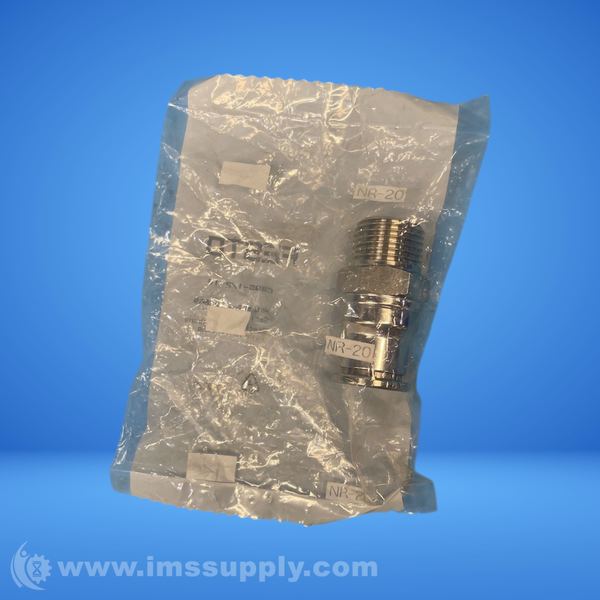

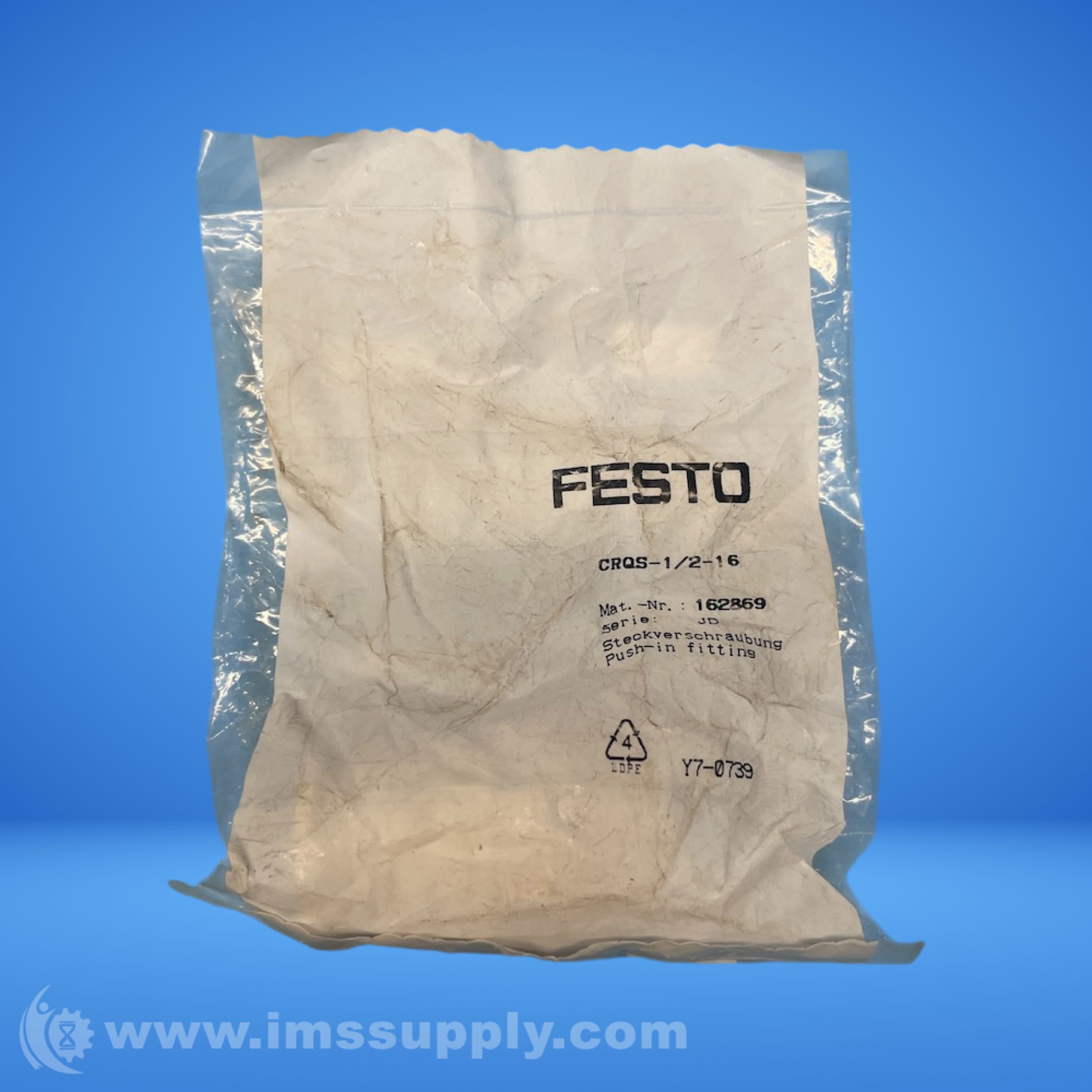

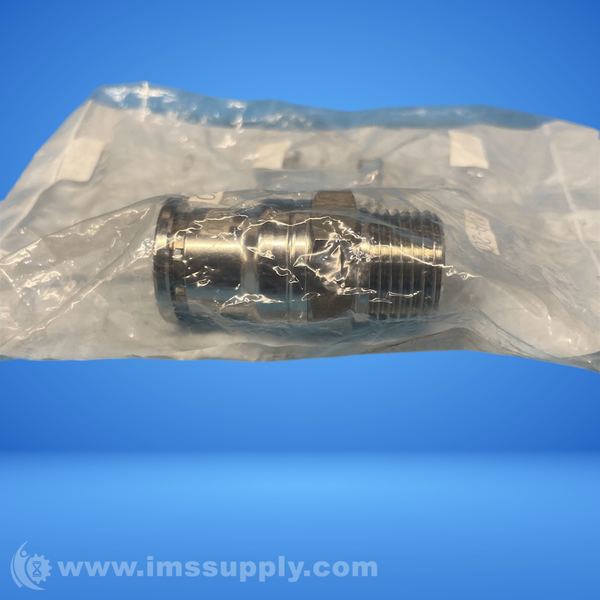

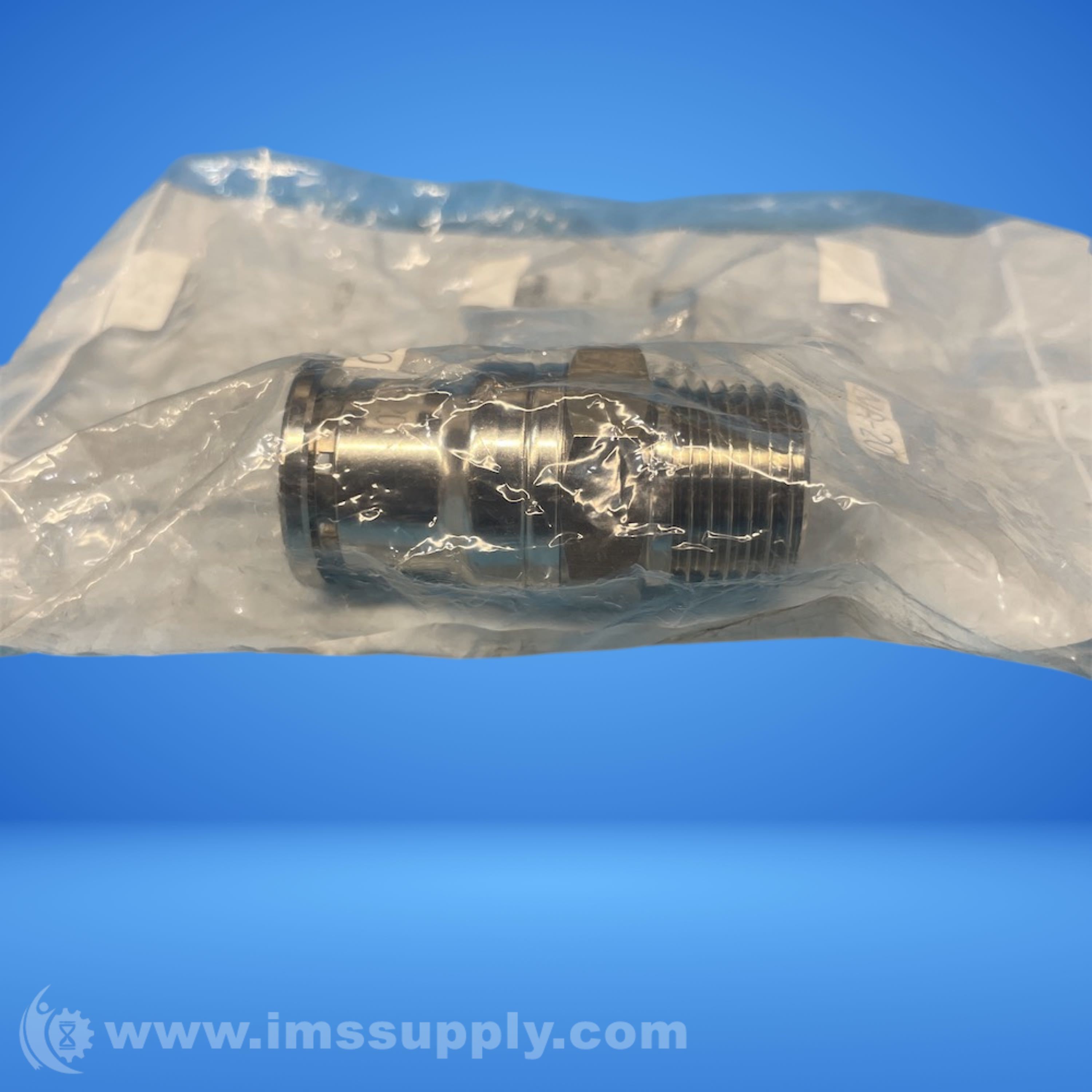

FESTO CRQS-1/2-16 PUSH-IN FITTING
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: CRQS-1/2-16
IMS Product Code: 2127505
Packaging: Sold Individually
Description:
Festo CRQS-1/2-16 Push-In Fitting
Stainless steel push-in fitting with male thread R1/2 and external hexagon.
Specifications
- Nominal size: 10.1MM
- Design: Straight
- Operating pressure: -0.095MPA to 1MPA
- Operating medium: Compressed air, Water (liquid, ice-free)
- Corrosion resistance class: 4 - Very high
- Material: High-alloy stainless steel
- Ambient temperature: -15°C to 120°C
- Pneumatic connection, port 1: Male thread R1/2
- Pneumatic connection, port 2: For tubing outside diameter of 16 mm
- Product weight: 59g
- Type of mounting: External hexagon, size 24 mm
- Thread type: BSPT
- Working temperature: -15°C to +120°C
- Working pressure: -0.95 to 10 bar
- Seal material: FPM (Viton)
