FESTO CRQS-8 PUSH-IN CONNECTOR
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: CRQS-8
IMS Product Code: 2147579
Packaging: Sold Individually
Description:

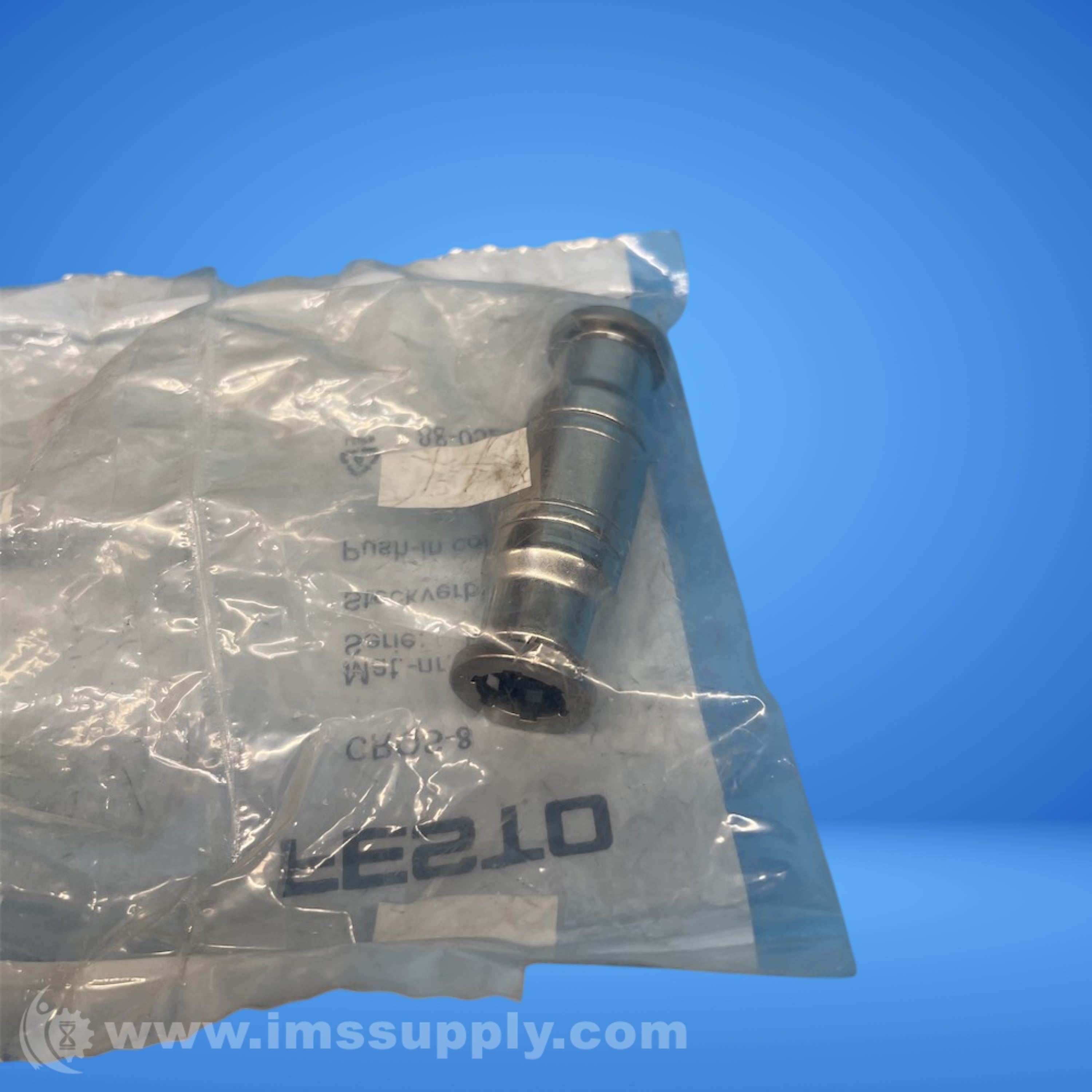

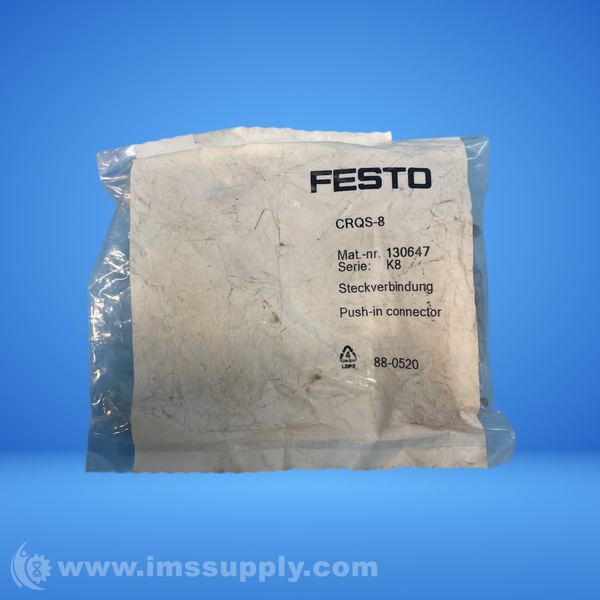

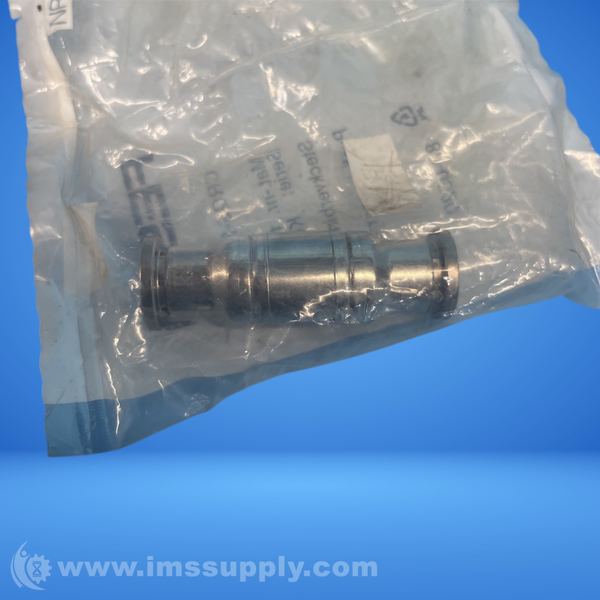

Festo CRQS-8 Push-in Connector
Stainless steel push-in fitting for 8mm tubing, offering corrosion resistance and pneumatic connection.
Specifications
- Nominal Size: 5.8 mm
- Design: Straight
- Operating Pressure: -0.095MPA to 1MPA
- Operating Medium: Compressed air, Water (liquid, ice-free)
- Corrosion Resistance Class: 4 - Very high
- Material: High-alloy stainless steel
- Ambient Temperature: -15°C to 120°C
- Pneumatic Connection: For tubing outer diameter of 8 mm
- Type: Push-in Connector
- Series: CRQS
- Length: 44.9 mm
- Pressure Rating: -0.95 to 10 bars
- Temperature Rating: -15 to 120 degrees C
- Color: Silver
- Dimensions: 13.8 mm Dia
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
Ships today if ordered in the next 10 hours and 37 minutes.
