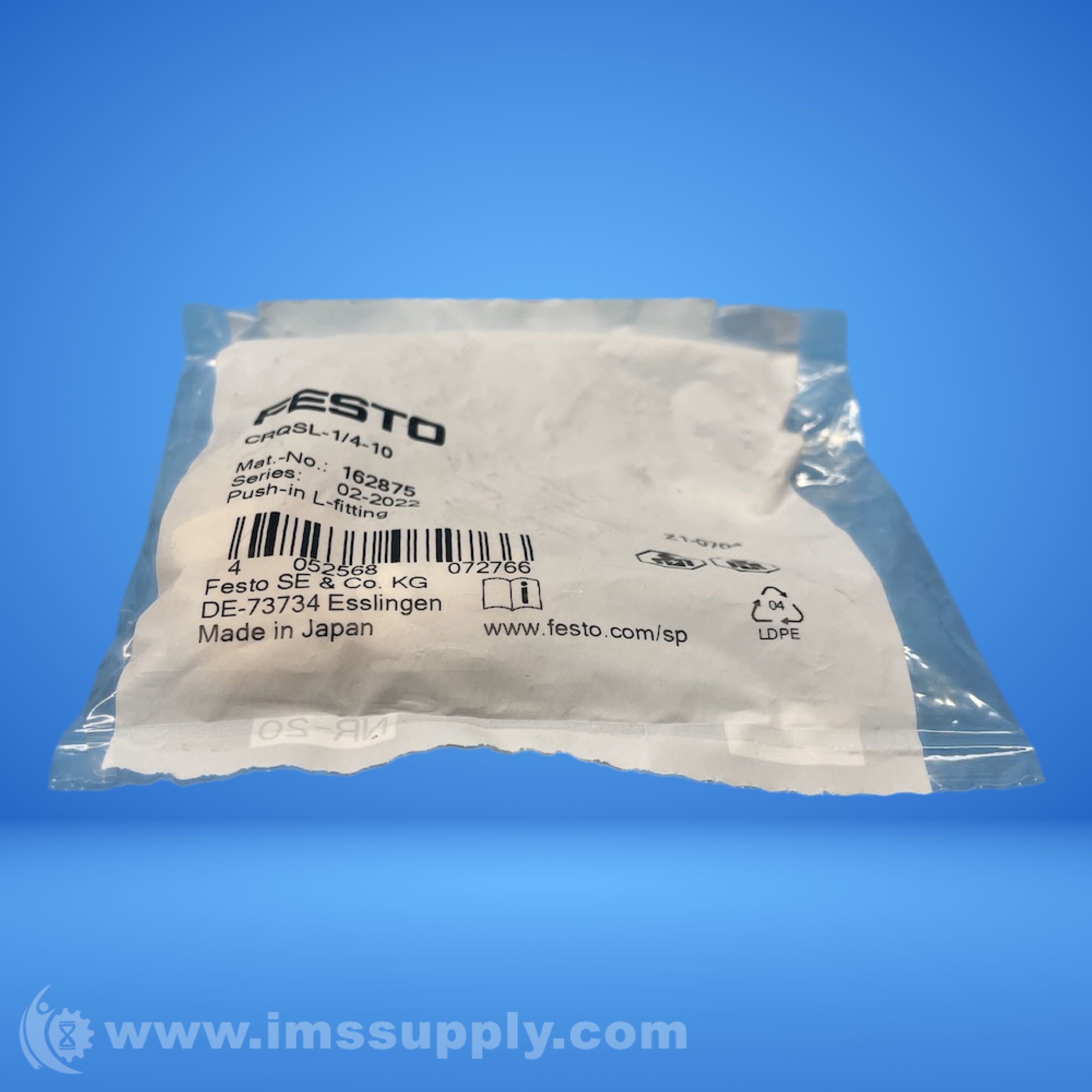

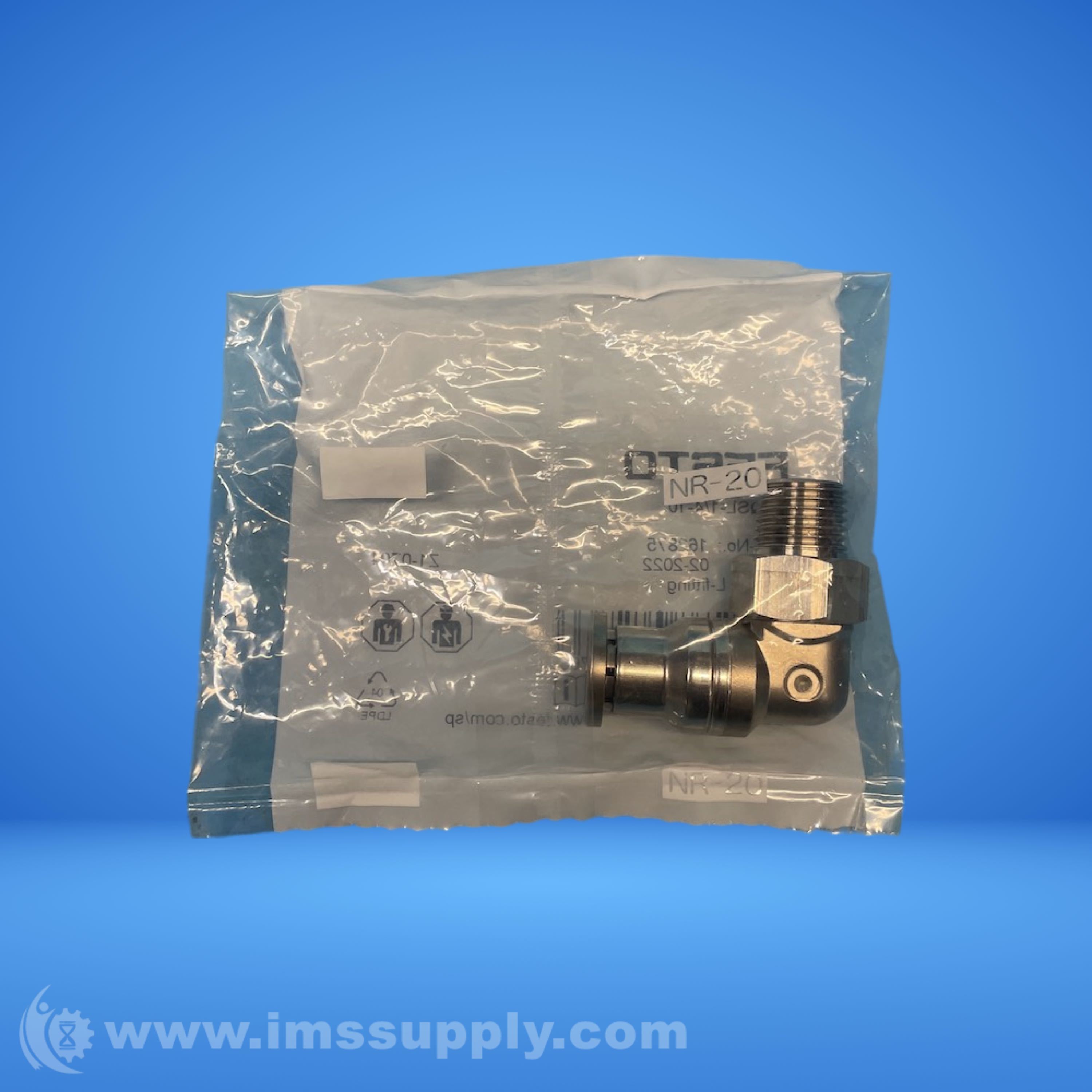

FESTO CRQSL-1/4-10 PUSH-IN L-FITTING
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: CRQSL-1/4-10
IMS Product Code: 2147046
Packaging: Sold Individually
Description:
Festo CRQSL-1/4-10 Push-in L-fitting
Stainless steel push-in fitting with male thread R1/4 and tubing outside diameter of 10 mm.
Specifications
- Standard size: 6MM nominal size
- Operating pressure complete temperature range: -0.095MPA to 1MPA, -0.95BAR to 10BAR, -13.775PSI to 145PSI
- Operating medium: Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
- Corrosion resistance class: 4 - Very high corrosion stress
- Material screwed plug: High-alloy stainless steel
- Material housing: High-alloy stainless steel
- Material release ring: High-alloy stainless steel
- Material tubing seal: FPM
- Material tubing clamp component: High-alloy stainless steel
- Thrust ring material: High-alloy stainless steel
- Ambient temperature: -15°C to 120°C
- Pneumatic connection, port 1: male thread R1/4
- Pneumatic connection, port 2: for tubing outside diameter of 10 mm
- Product weight: 42g
- Design: Elbow - Male - Swivel
- Connection Size - Port 1: 1/4 in
- Connection Type - Port 2: Push-to-Connect Metric
- Connection Size - Port 2: 10 mm
- Connection Type - Port 1: BSPT (R) Male
- Internal Hex: No
- Material - Base/Threaded Portion: Stainless Steel
- Material - Body/Non-threaded Portion: Stainless Steel
- Material - Collar: Stainless Steel
- Operating Pressure Complete Temperature Range (Metric): -0.95 - 10 bar
- Operating Pressure Complete Temperature Range (Standard): -13.78 - 145.04 psi
- Operating Temperature (C): -15 to 120° C
- Operating Temperature (F): 5 to 248° F
- Size: Standard
- Item Weight: 0.10 lbs per EA
- External thread: R1/4
- Weight: 0.043 kg / 0.095 lb
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
Ships today if ordered in the next 4 hours and 35 minutes.
