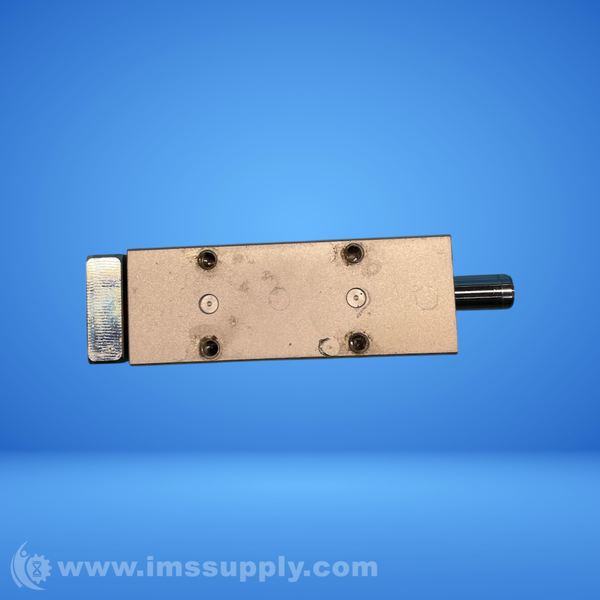

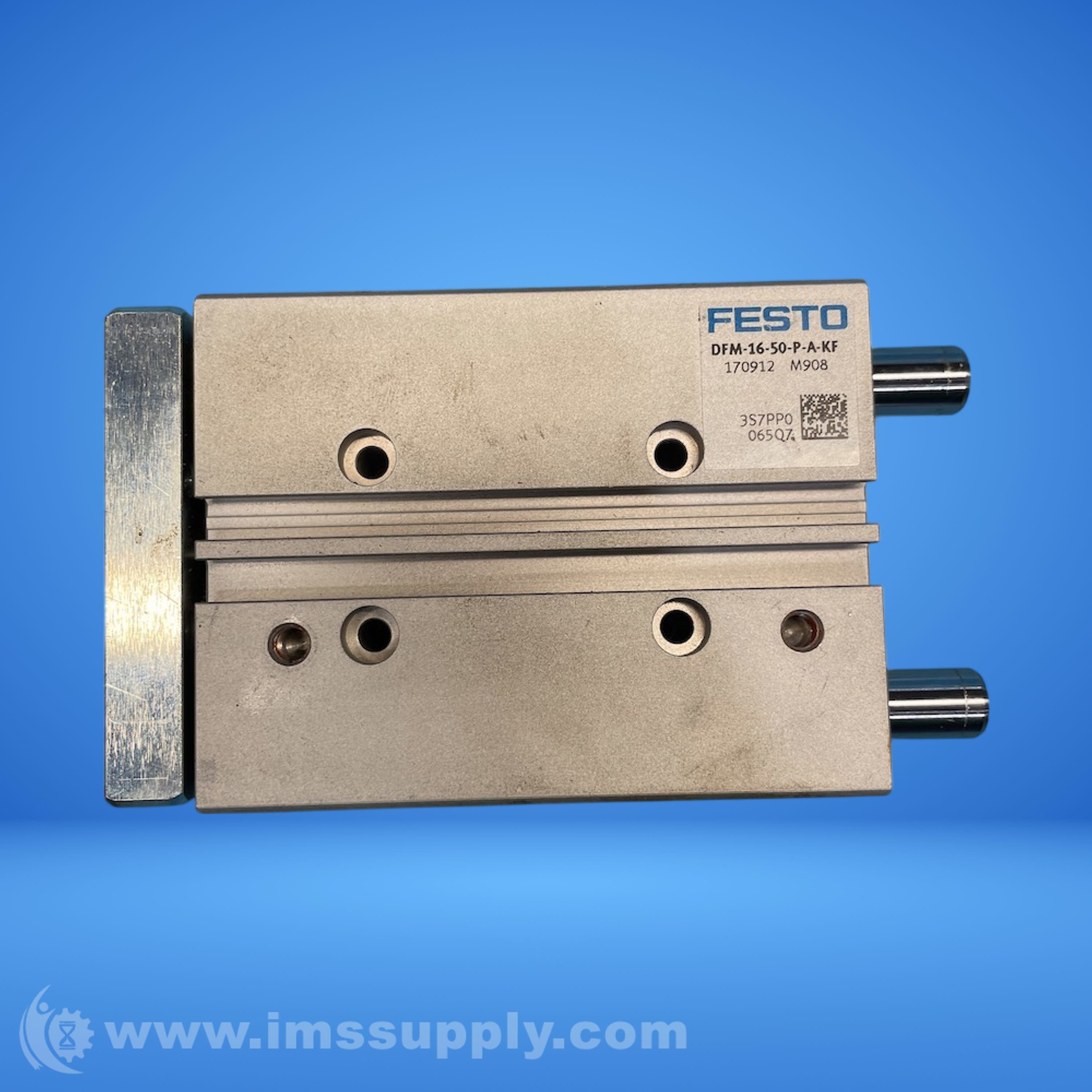

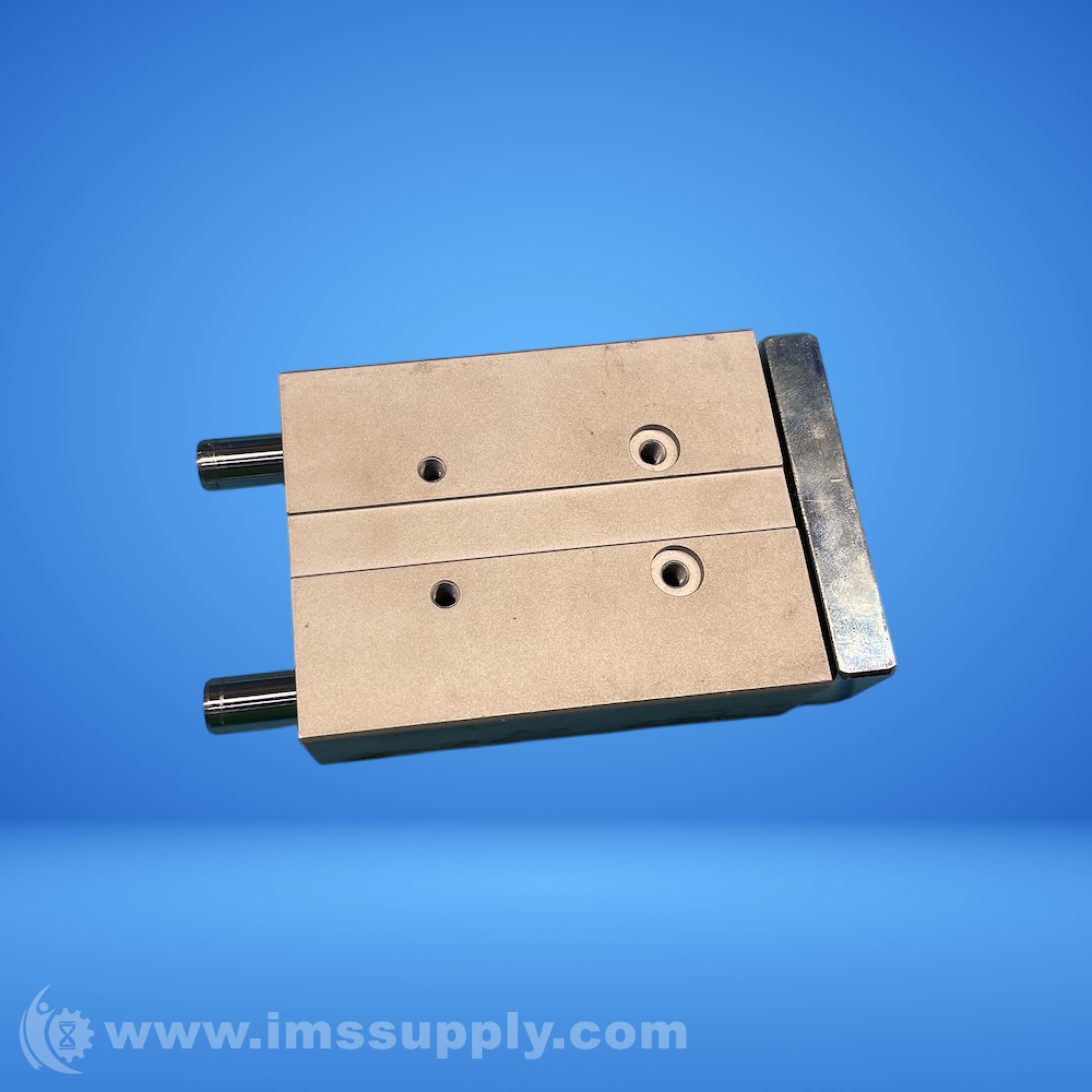

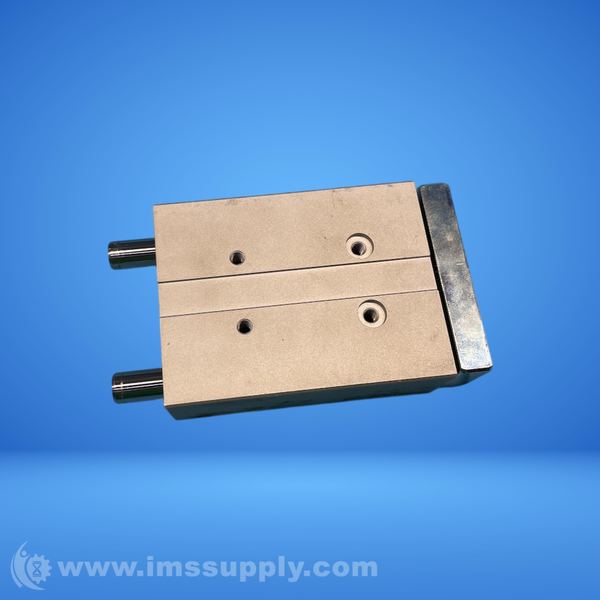

FESTO DFM-16-50-P-A-KF GUIDED ACTUATOR
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: DFM-16-50-P-A-KF
IMS Product Code: 2141276
Packaging: Sold Individually
Description:
Festo DFM-16-50-P-A-KF Guided Actuator
Guided drive with integrated guide, centre of gravity distance from working load to yoke plate = 50 mm, stroke = 50 mm, piston diameter = 16 mm.
Specifications
- Centre of gravity distance from working load to yoke plate: 50 mm
- Stroke: 50 mm
- Piston diameter: 16 mm
- Operating mode of drive unit: Yoke
- Cushioning: P: Flexible cushioning rings/plates at both ends
- Assembly position: Any
- Guide: Recirculating ball bearing guide
- Design structure: Guide
- Position detection: For proximity sensor
- Operating pressure: 2 ... 10 bar
- Max. speed: 0.8 m/s
- Mode of operation: double-acting
- Operating medium: Compressed air in accordance with ISO8573-1:2010 [7:4:4]
- Weight: 0.678 kg / 1.495 lb
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 121 N
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 8 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
