FESTO DSR-32-180-P SEMI-ROTARY DRIVE
Quick Overview
Manufactured By: FESTO

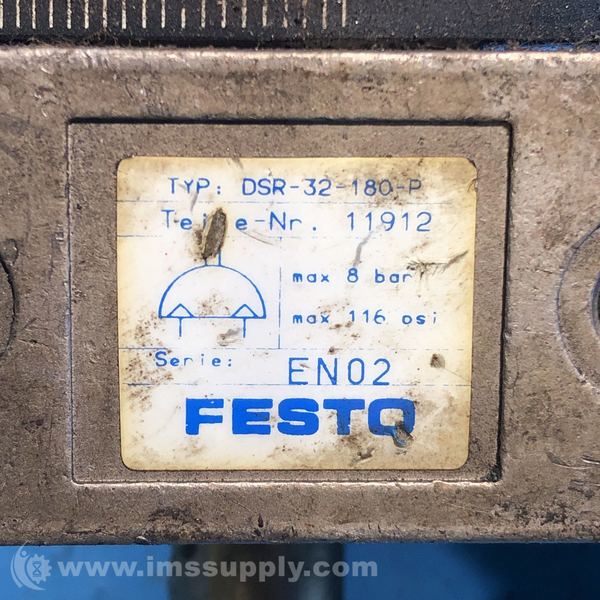

Manufacturer Part Number: DSR-32-180-P
IMS Product Code: 2020140
Packaging: Sold Individually
Description:

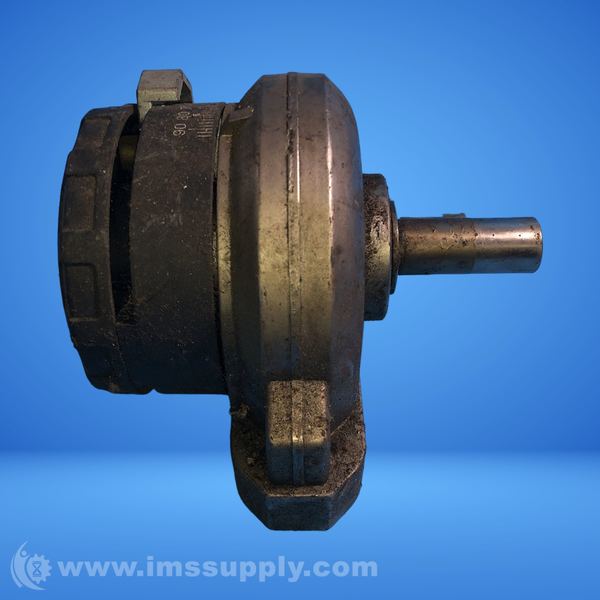

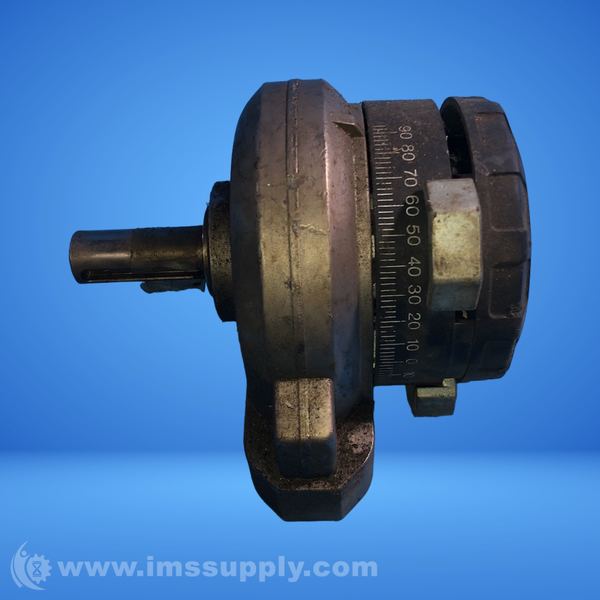

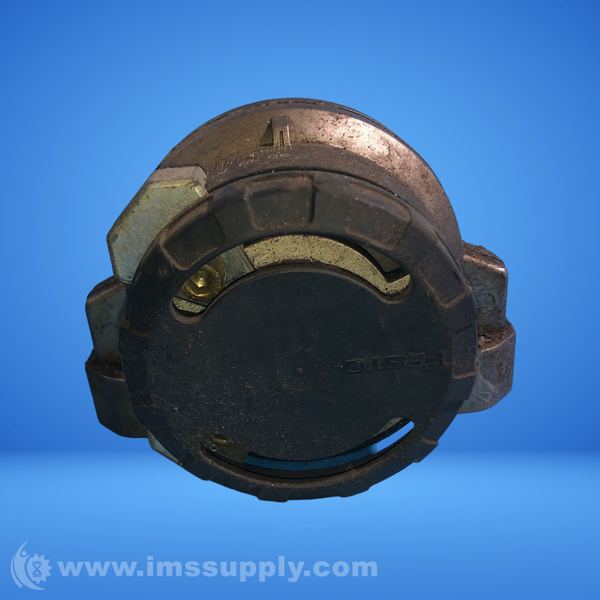

Festo DSR-32-180-P Semi-Rotary Drive
Double-acting semi-rotary actuator with vane design, 32mm piston diameter, 180 degrees swivel angle, and elastic cushioning.
Specifications
- Piston diameter: 32 mm
- Stroke: 180 degrees
- Size: 32
- Cushioning angle: 1.2 degrees
- Rotation angle adjustment range: 0 degrees to 180 degrees
- Swivel angle: 0 degrees to 180 degrees
- Mode of operation: Double-acting
- Design: Vane
- Position detection: Without position detection
- Max swivel frequency: 3 Hz at 0.6 MPa (6 bar, 87 psi)
- Operating medium: Compressed air to ISO 8573-1:2010 [7:-:-]
- Theoretical torque: 10 Nm at 0.6 MPa (6 bar, 87 psi)
- Product weight: 1300 g
- Mounting type: Through-hole
- Drive shaft material: Steel
- Drive shaft finish: Nickel-plated
- Seal material: NBR
- Operating pressure: 1.5 bar to 8 bar
- Ambient temperature: -10 degrees C to 60 degrees C
- Pneumatic connection: G1/8
- Length: 125.5 mm
- Width: 130 mm
- Height: 92 mm
- Weight: 0.59 kgs
