FESTO DFM-20-50-B-PPV-A-KF GUIDED CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: DFM-20-50-B-PPV-A-KF
IMS Product Code: 2135225
Packaging: Sold Individually
Description:

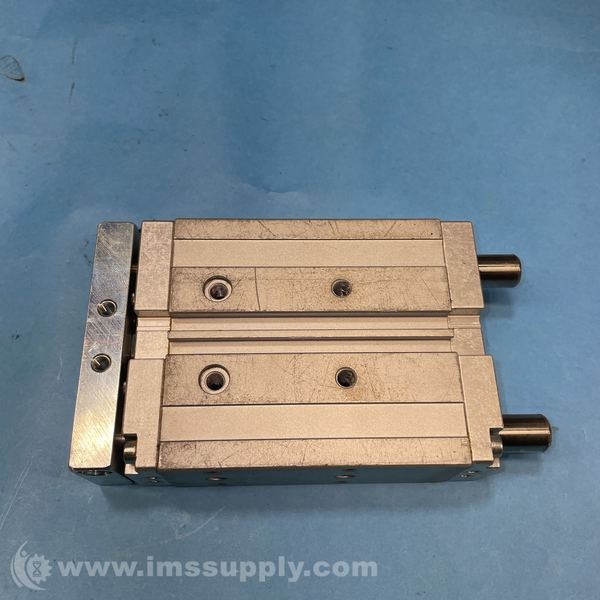

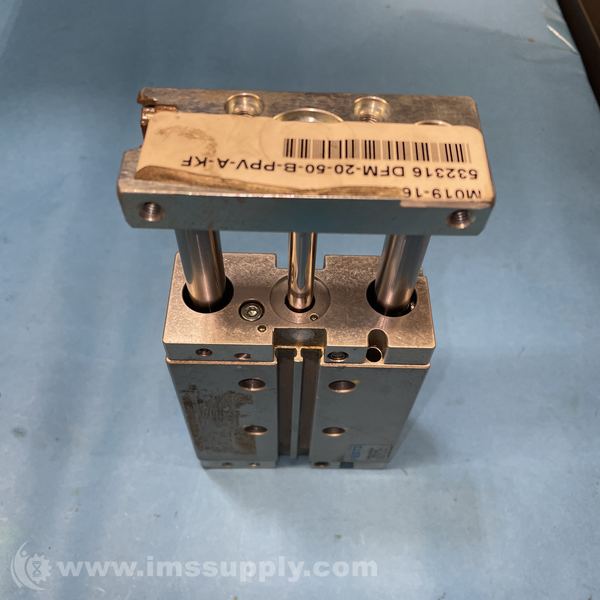

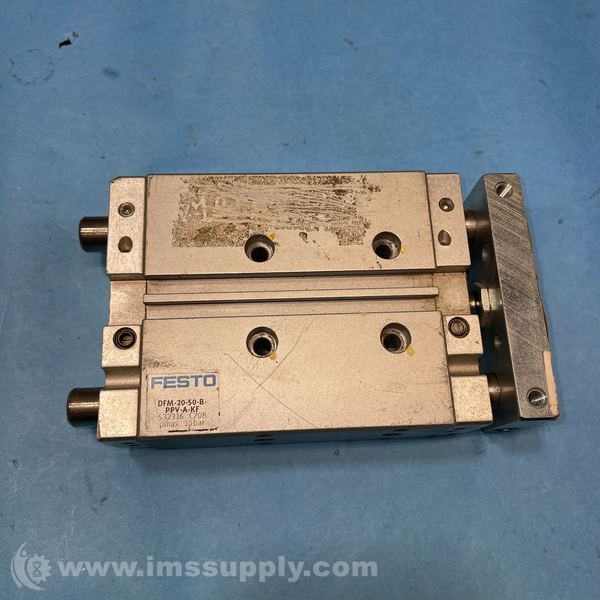

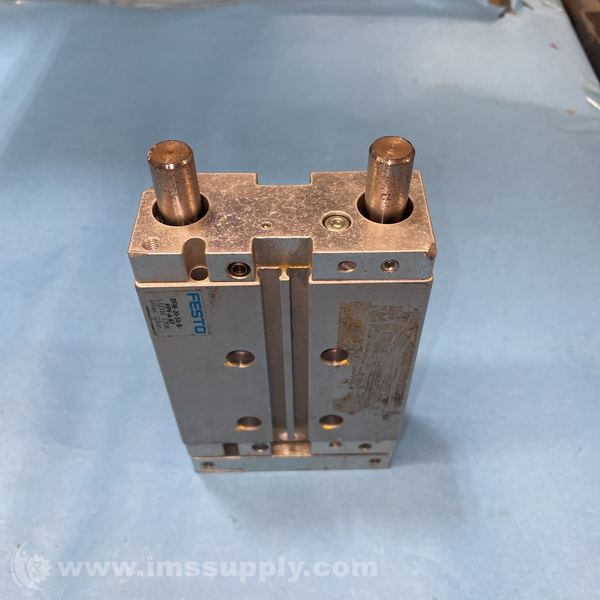

Festo DFM-20-50-B-PPV-A-KF Guided Cylinder
Double-acting guided drive with a 20mm piston diameter and 50mm stroke.
Specifications
- Piston diameter: 20 mm
- Stroke: 50 mm
- Drive unit operating mode: Yoke
- Cushioning: Pneumatic cushioning, adjustable at both ends
- Mounting position: Any
- Guide: Recirculating ball bearing guide
- Mode of operation: Double-acting
- Operating pressure: 2 bar ... 10 bar
- Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC: 0 - No corrosion stress
- Ambient temperature: -5 degrees C ... 60 degrees C
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 188 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 141 N
- Pneumatic connection: M5
- Cover material: Wrought aluminum alloy
- Seals material: NBR
- Housing material: Wrought aluminum alloy
- Piston rod material: High-alloy stainless steel
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
