FESTO DFM-20-50-P-A-GF GUIDED CYLINDER
Quick Overview
Manufactured By: FESTO

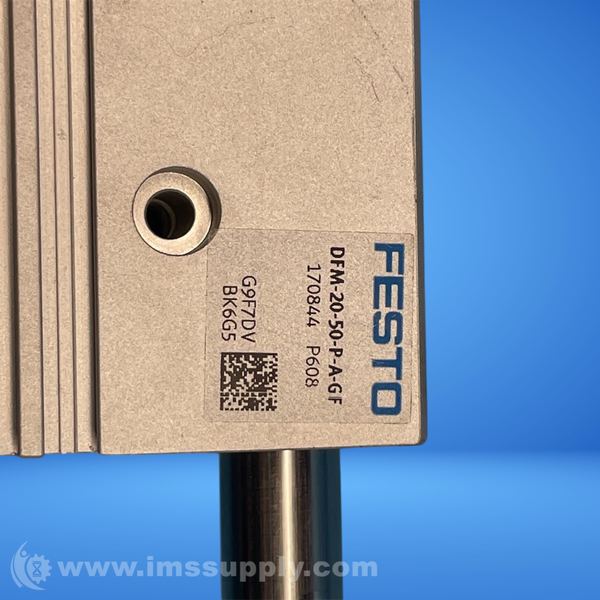

Manufacturer Part Number: DFM-20-50-P-A-GF
IMS Product Code: 2129597
Packaging: Sold Individually
Description:

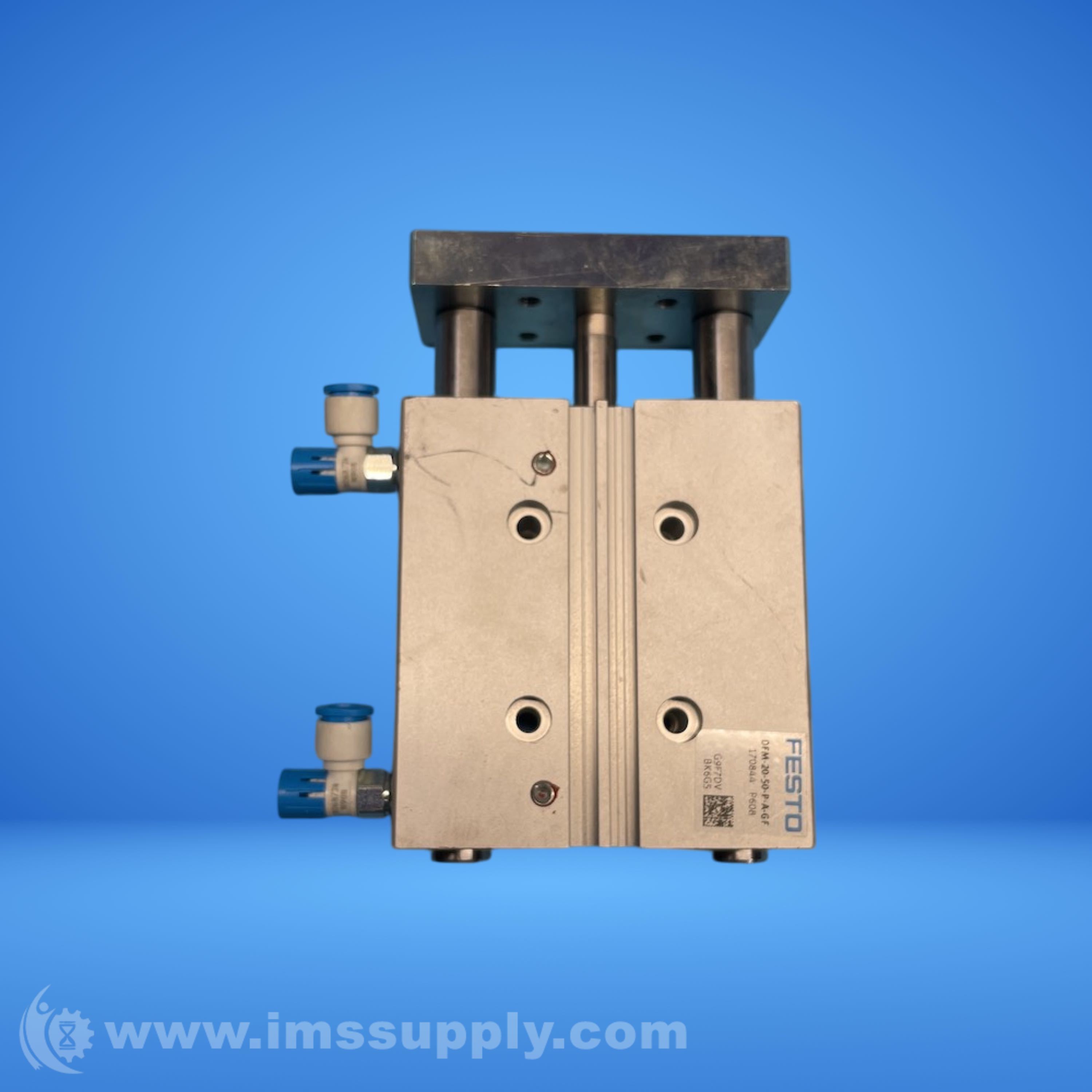

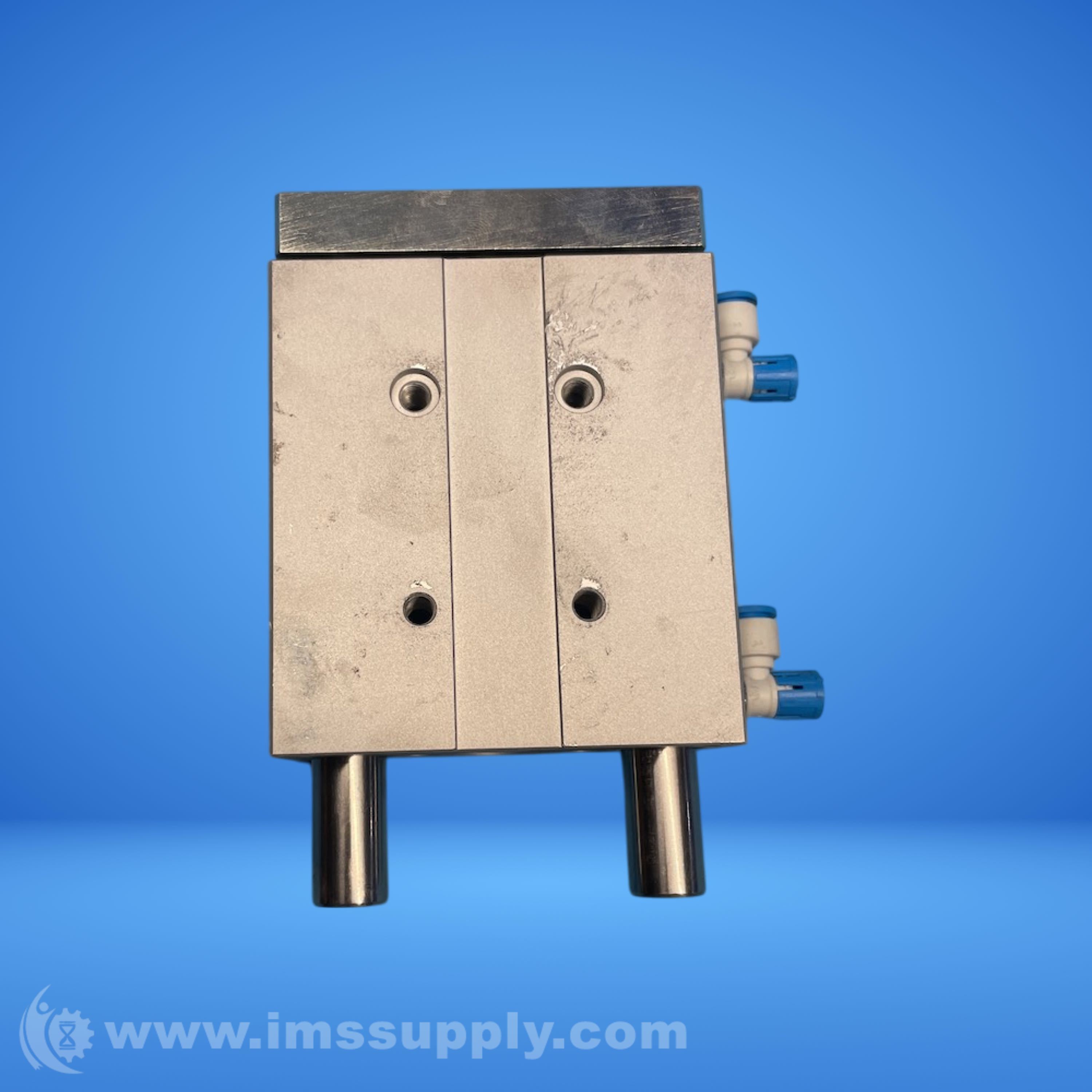

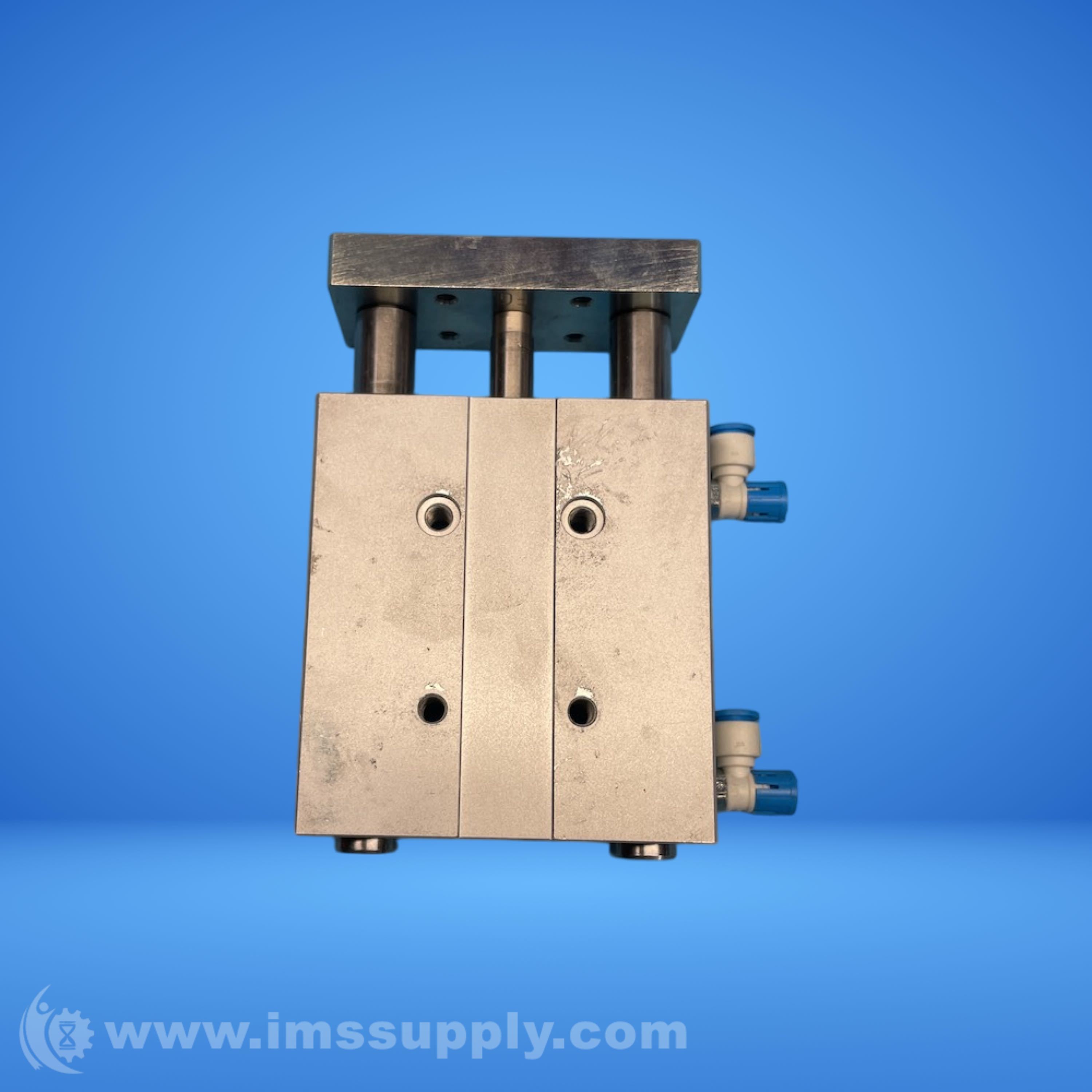

Festo DFM-20-50-P-A-GF Guided Cylinder
Double-acting guided drive with plain-bearing guide, 20mm piston diameter, 50mm stroke, M5 pneumatic connection, and elastic cushioning rings/plates at both ends.
Specifications
- Stroke: 50 mm
- Piston diameter: 20 mm
- Mode of operation: Double-acting
- Cushioning: Elastic cushioning rings/plates at both ends
- Operating pressure: 2 ... 8 bar
- Max. speed: 0.8 m/s
- Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature: -20 °C ... 80 °C
- Material cover: Wrought aluminium alloy
- Material seals: NBR
- Material housing: Wrought aluminium alloy
- Material piston rod: High-alloy stainless steel
- Pneumatic connection: M5
- Max. force Fy: 709.3 N
- Max. moment Mx: 20.57 Nm
- Theoretical force at 0.6 MPa return stroke: 141 N
- Theoretical force at 0.6 MPa advance stroke: 188 N
- Moving mass: 582 g
- Product weight: 1158 g
Used (Special):

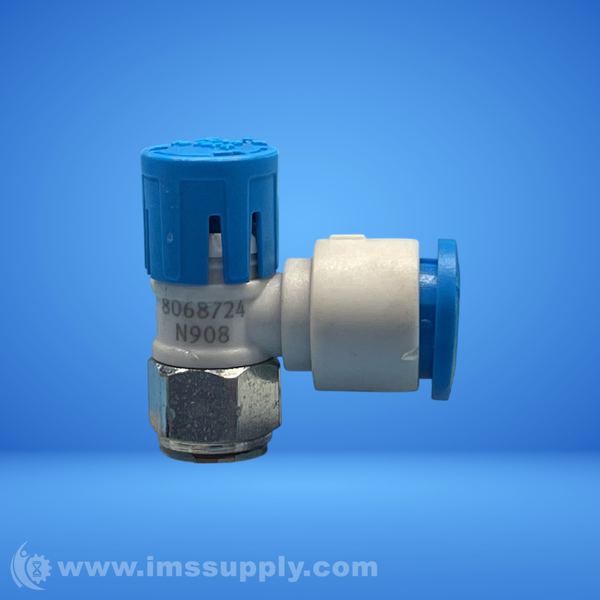

Comes with two (2) 8068724 fittings.
