FESTO DFM-32-20-P-A-GF GUIDED CYLINDER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: DFM-32-20-P-A-GF
IMS Product Code: 2129133
Packaging: Sold Individually
Description:

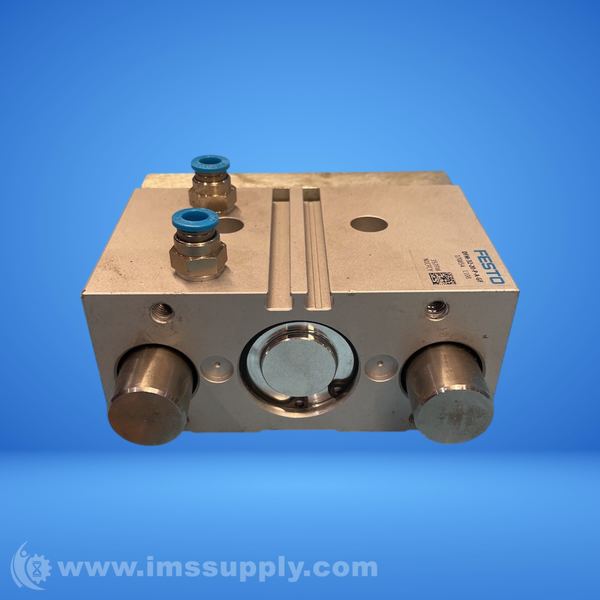

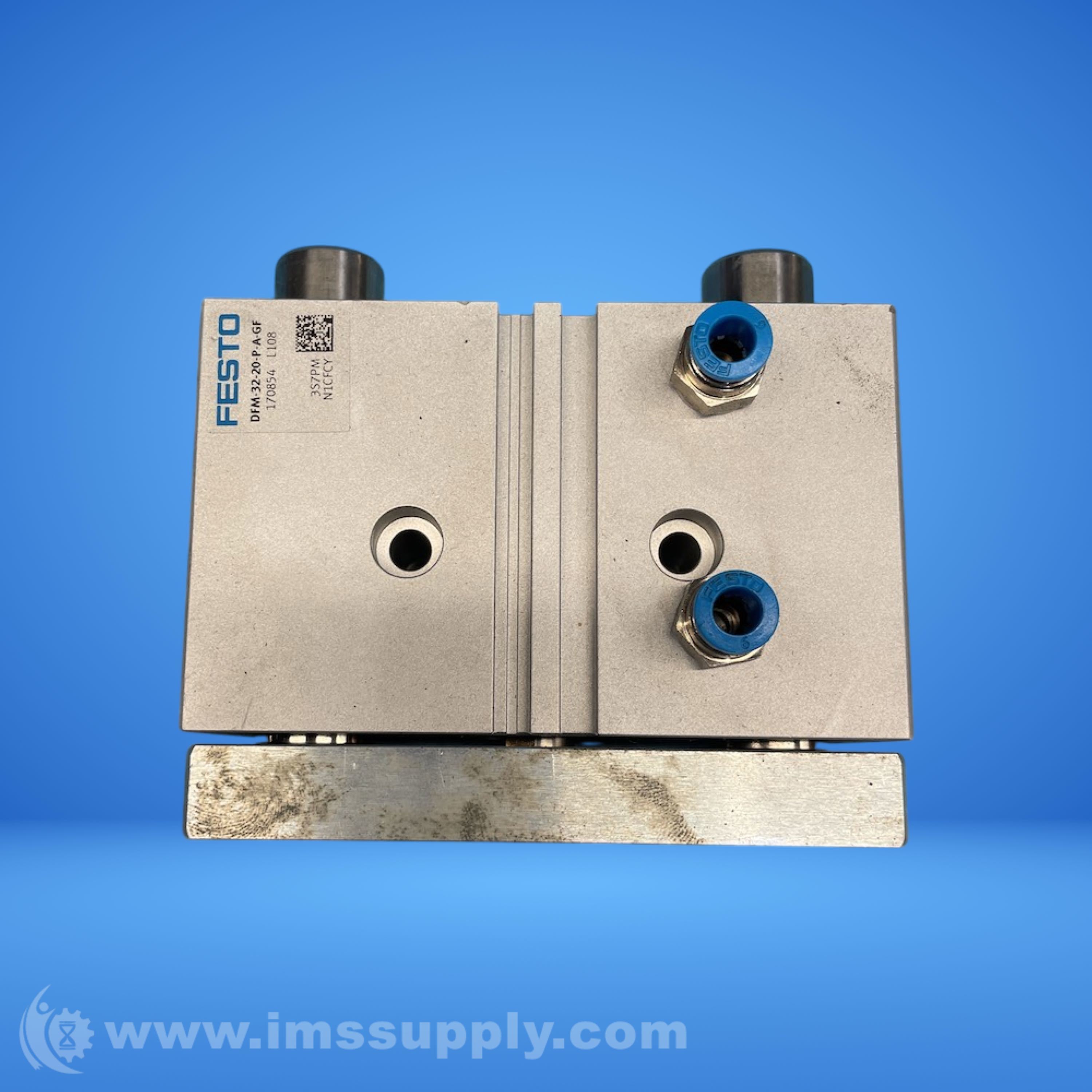

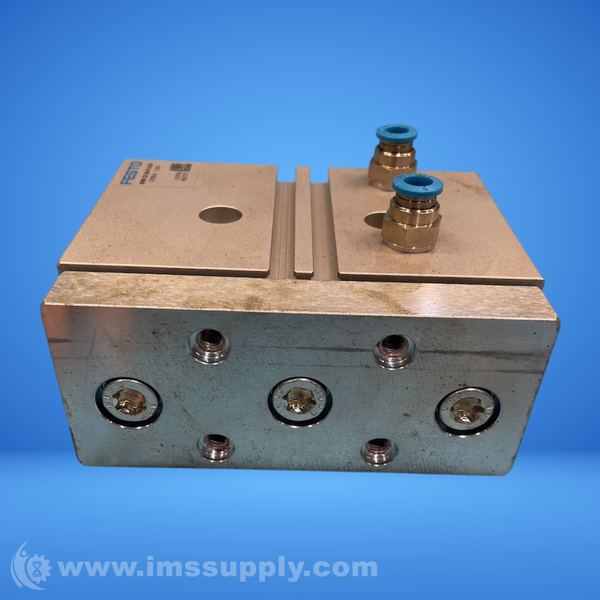

Festo DFM-32-20-P-A-GF Guided Cylinder
Double-acting guided cylinder with 32mm piston diameter and 20mm stroke.
Specifications
- Piston diameter: 32 mm
- Stroke: 20 mm
- Cushioning: Elastic cushioning rings/plates on both sides
- Position sensing: For proximity sensor
- Guide: Plain bearing
- Operating pressure: 1.5 bar ... 10 bar
- Mode of operation: Double-acting
- Max. force Fy static: 1227 N
- Max. torque Mx static: 47.84 Nm
- Theoretical force at 0.6 MPa: 482 N
- Product weight: 1793 g
- Pneumatic connection: G1/8
- Material cover: Wrought aluminium alloy
- Material housing: Wrought aluminium alloy
- Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC: 1 - Low corrosion stress
- Ambient temperature: -20 degrees C ... 80 degrees C
- Max. speed: 0.8 m/s
- Material seals: NBR
- Material piston rod: High-alloy stainless steel
New - Missing Box:

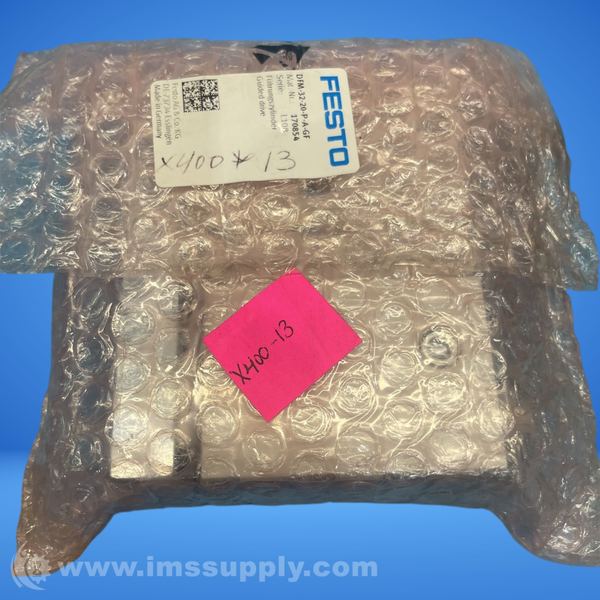

A new, unused item with no signs of wear. The item may be missing the original packaging.
