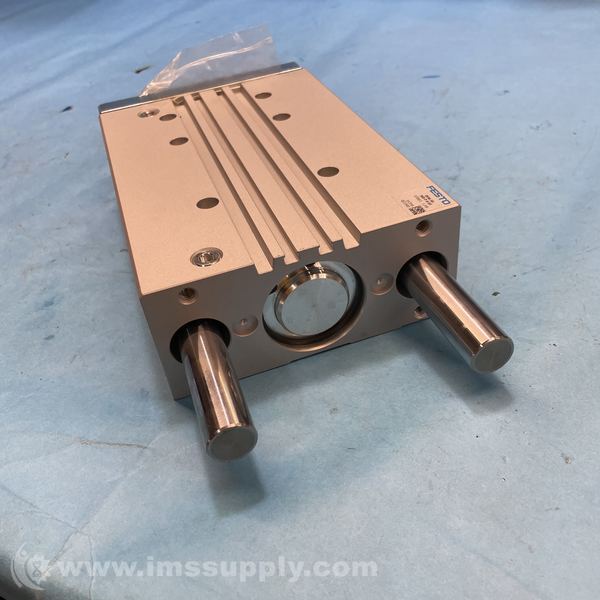

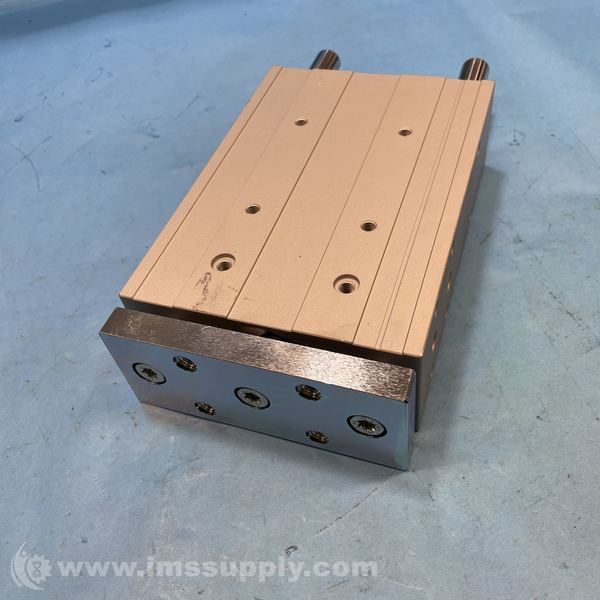

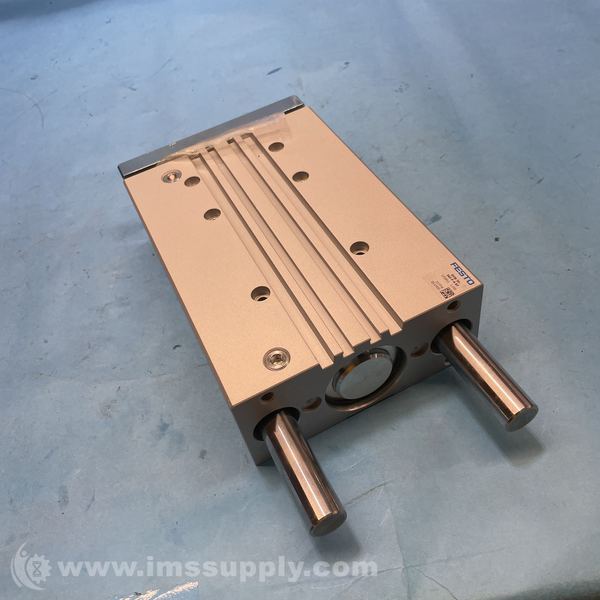

FESTO DFM-50-160-P-A-KF GUIDED ACTUATOR
Quick Overview
Manufactured By: FESTO

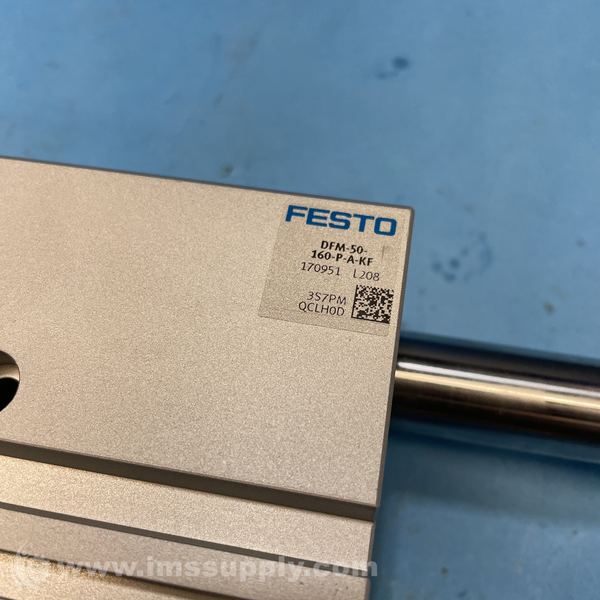

Manufacturer Part Number: DFM-50-160-P-A-KF
IMS Product Code: 2135218
Packaging: Sold Individually
Description:
Festo DFM-50-160-P-A-KF Guided Actuator
Double-acting guided drive with integrated guide, 50mm piston diameter, and 160mm stroke.
Specifications
- Size: 50
- Stroke: 160 mm
- Pneumatic connection: G1/4
- Position sensing: For proximity sensor
- Piston diameter: 50 mm
- Mode of operation: Double-acting
- Cushioning: Pneumatic cushioning
- Design structure: Guide
- Operating pressure: 0.6 ... 10 bar
- Operating medium: Filtered compressed air, lubricated or unlubricated
- Corrosion resistance classification CRC: 2
- Material cover: Wrought aluminium alloy
- Material seals: NBR
- Material housing: Wrought aluminium alloy
- Material piston rod: High-alloy stainless steel
- Max. speed: 0.6M/S
- Max. force fy: 1487N
- Max. force fz: 1487N
- Max. moment mx: 81.79NM
- Max. moment my: 62.46NM
- Max. moment mz: 62.46NM
- Theoretical force at 0.6 mPa return stroke: 1057N
- Theoretical force at 0.6 mPa advance stroke: 1178N
- Moving mass: 2945G
- Product weight: 6583G
- Ambient temperature: -5GC to 60GC

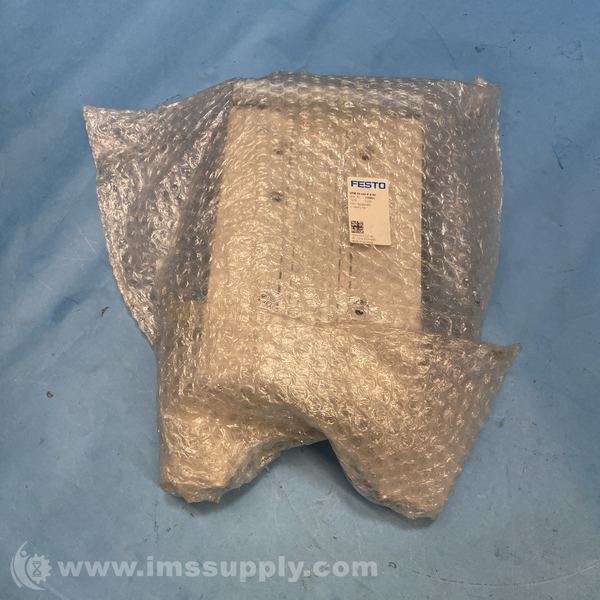

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
