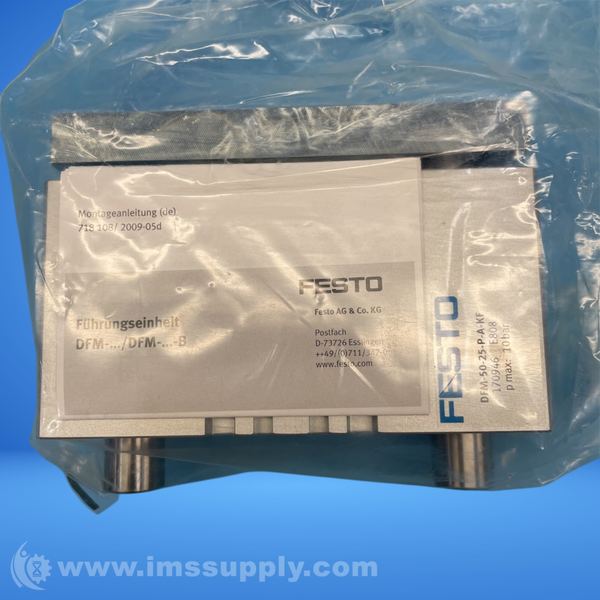

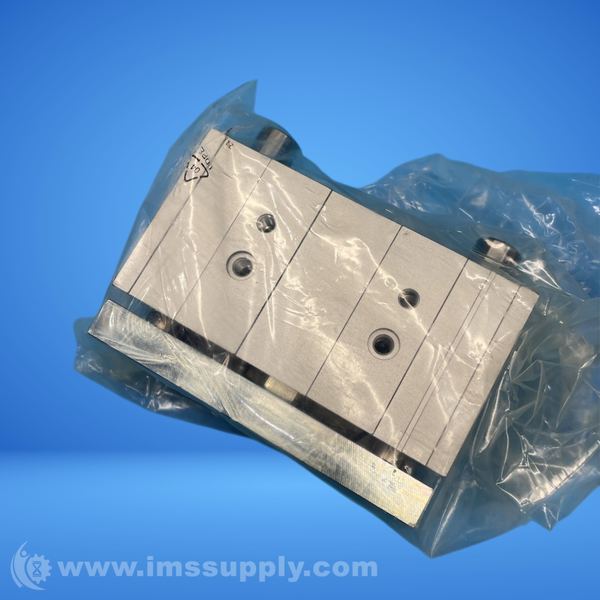

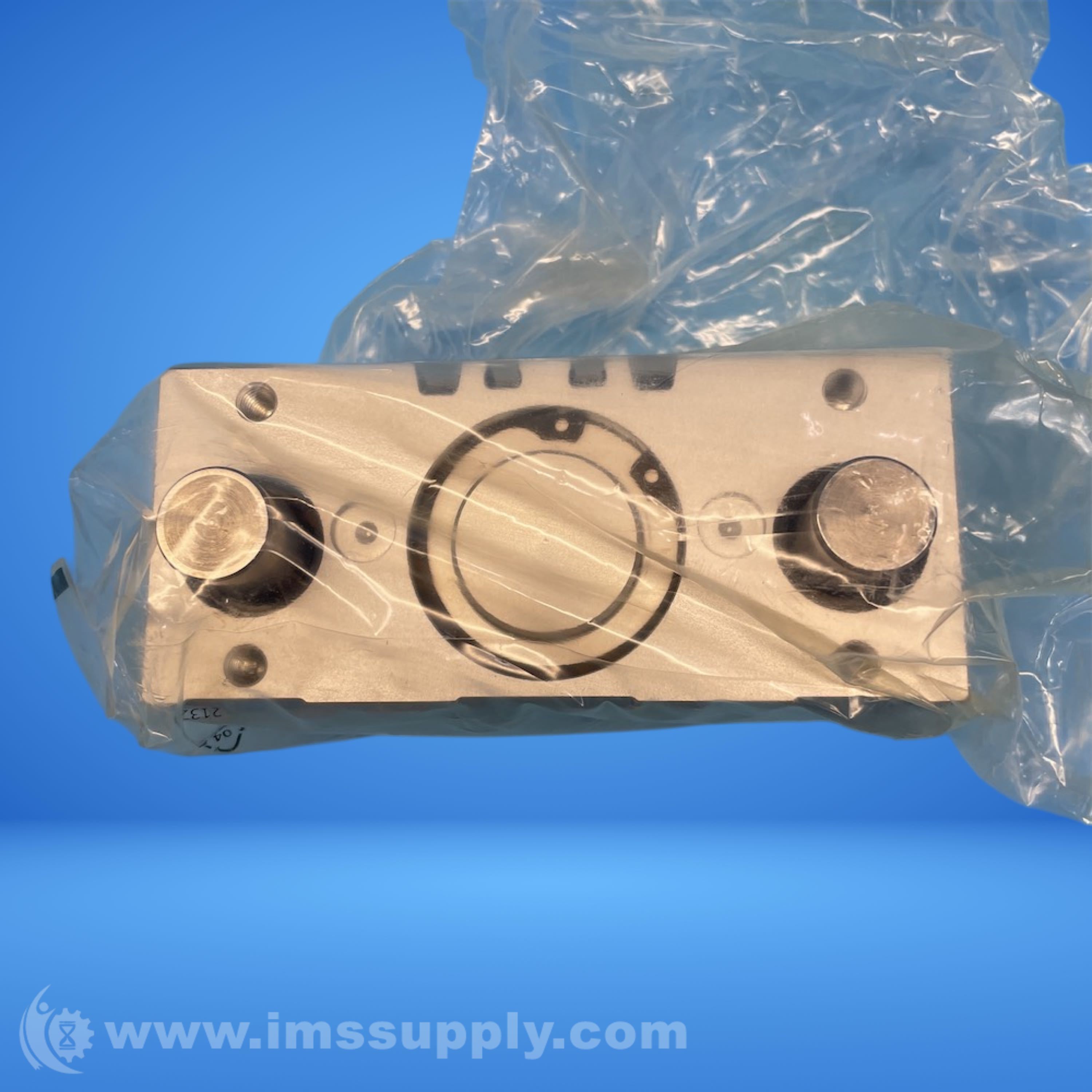

FESTO DFM-50-25-P-A-KF GUIDED DRIVE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: DFM-50-25-P-A-KF
IMS Product Code: 2126787
Packaging: Sold Individually
Description:
Festo DFM-50-25-P-A-KF Guided Drive
Double-acting guided drive with recirculating ball bearing guide and elastic cushioning rings/plates on both sides. Suitable for clamping, lifting, and stopping applications.
Specifications
- Cylinder / Drive Type: Guided Drive
- Mode of Operation: Double Acting
- Piston Diameter: 50mm
- Stroke Length: 25mm
- Operating Pressure Max: 10bar
- Pneumatic Connection: G1/4
- Material Housing: Wrought aluminium alloy
- Material Piston Rod: High-alloy stainless steel
- Material Seals: NBR
- Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient Temperature: -5 degrees C ... 60 degrees C
- Corrosion Resistance Class CRC: 0 - No corrosion stress
- Product Weight: 3.1507 kg
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 2 minutes.
