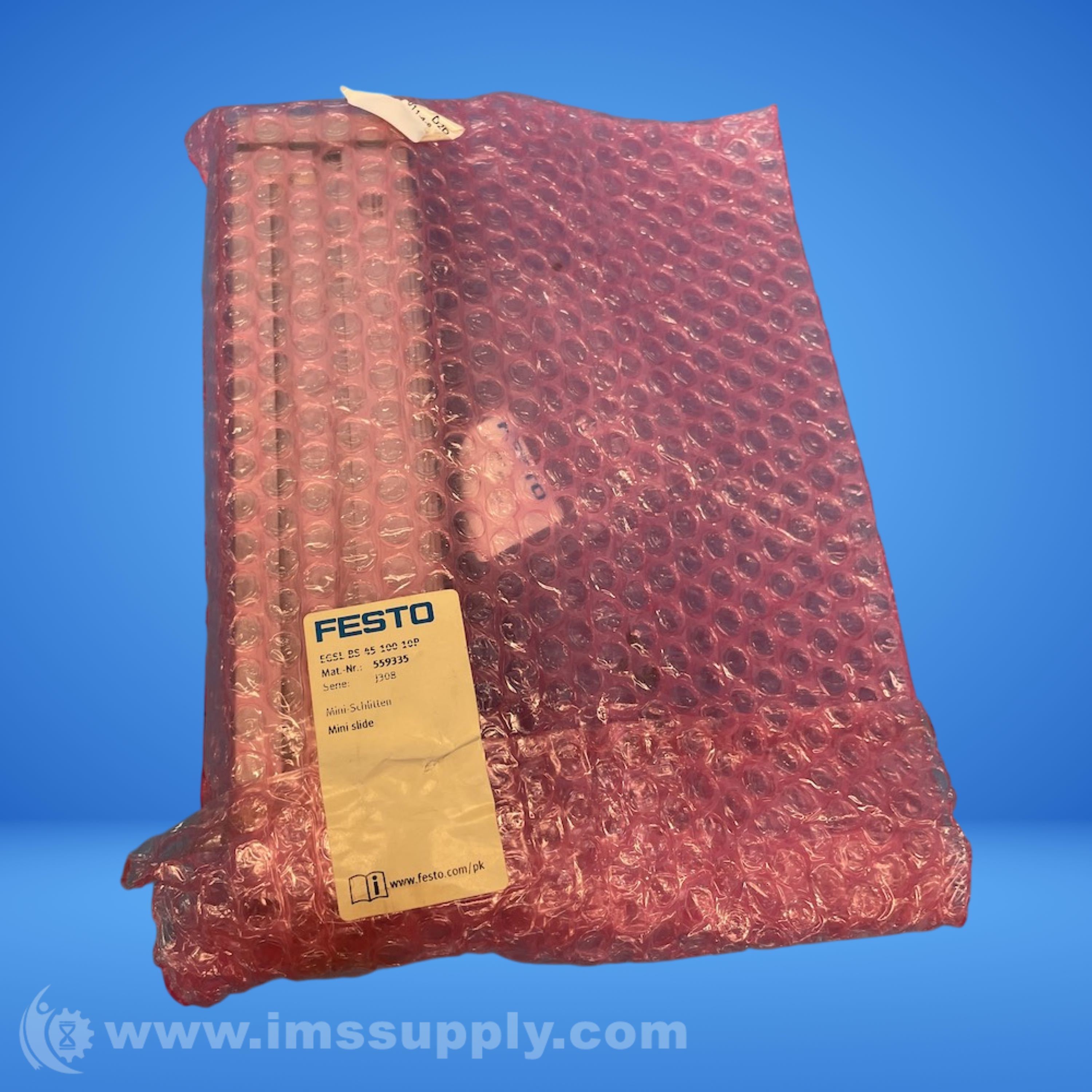

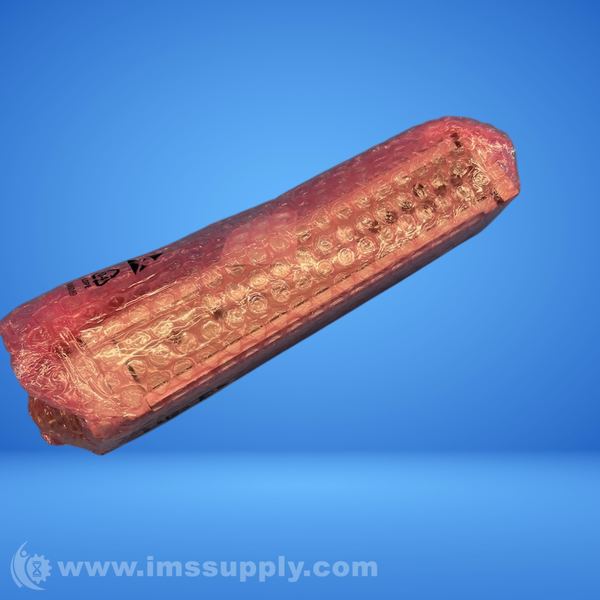

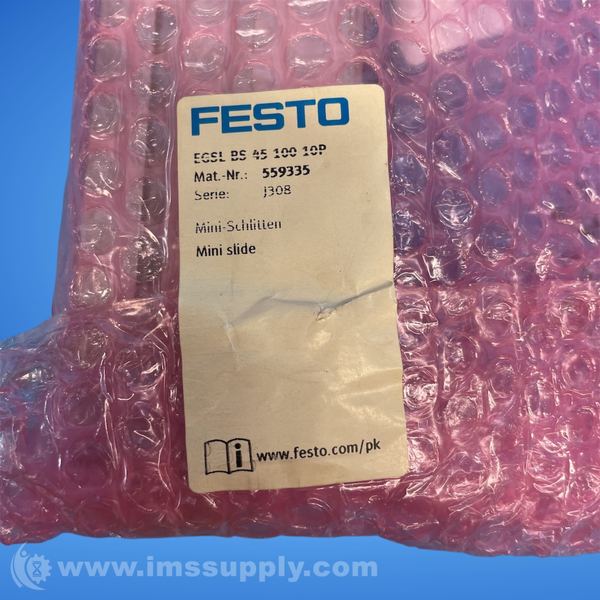

FESTO 559335 MINI SLIDE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: 559335
IMS Product Code: 2122329
Packaging: Sold Individually
Description:
Festo 559335 Mini Slide
Electric mini slide with ball screw drive, size 45, 100mm stroke, stepper/servo motor compatible, proximity sensor detection, IP40 protection, various material construction including aluminum and steel.
Specifications
- Size: 45
- Working stroke: 100 mm
- Spindle diameter: 10 mm
- Spindle pitch: 10 mm/U
- Guide: Ball bearing cage guide
- Motor type: Stepper motor/Servo motor
- Spindle type: Ball screw
- Position detection: Via proximity switch
- Max speed: 1 m/s
- Max acceleration: 25 m/s²
- Duty cycle: 100%
- Degree of protection: IP40
- Ambient temperature: 0°C - 60°C
- Continuous feed force: 100 N
- Max feed force: 150 N
- Max force Fy/Fz: 631 N
- Max moment Mx/My/Mz: 18.6/16.3/16.3 Nm
- Material cover: Die-cast aluminium, painted
- Material housing: Wrought aluminium alloy, anodised
- Material spindle/guide rail/spindle nut: Rolled steel
- Product weight: 1.57 kg
- Moving mass: 670 g
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 9 hours and 9 minutes.
