FESTO DGC-40-450-G-PPV-A LINEAR DRIVE
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: DGC-40-450-G-PPV-A
IMS Product Code: 2116031
Packaging: Sold Individually
Description:

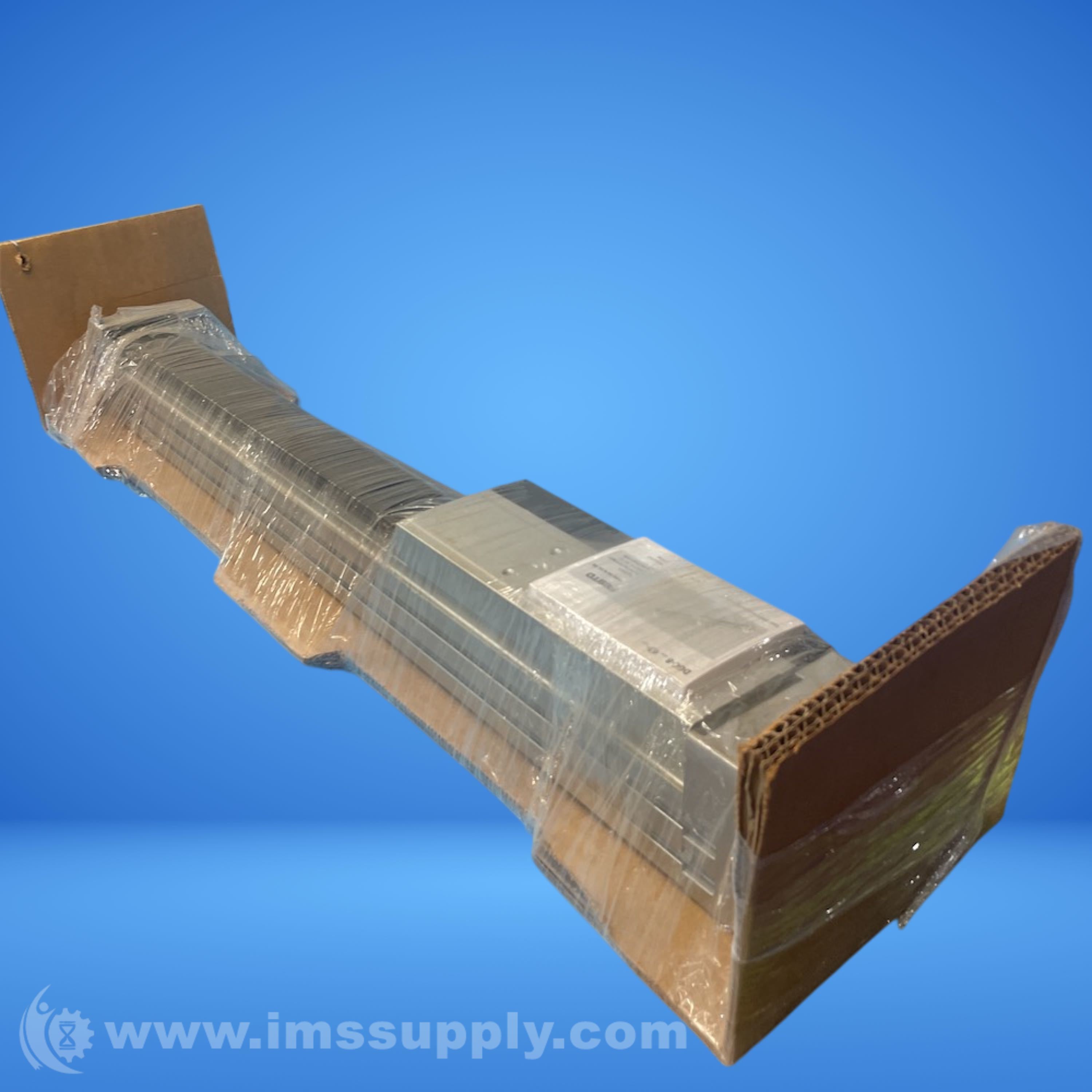

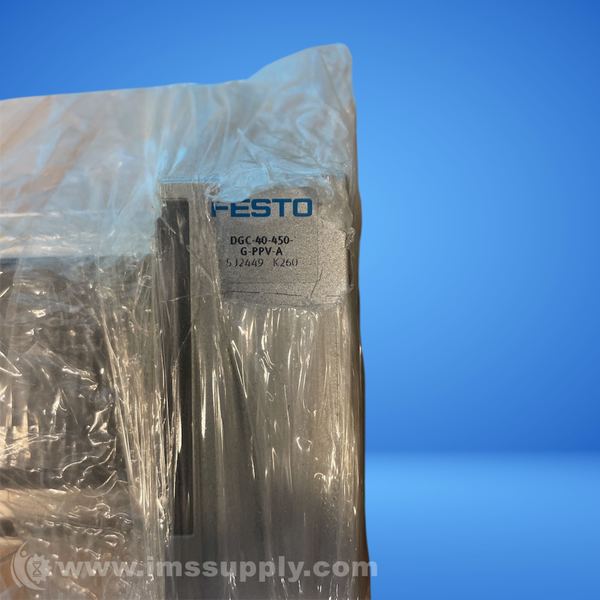

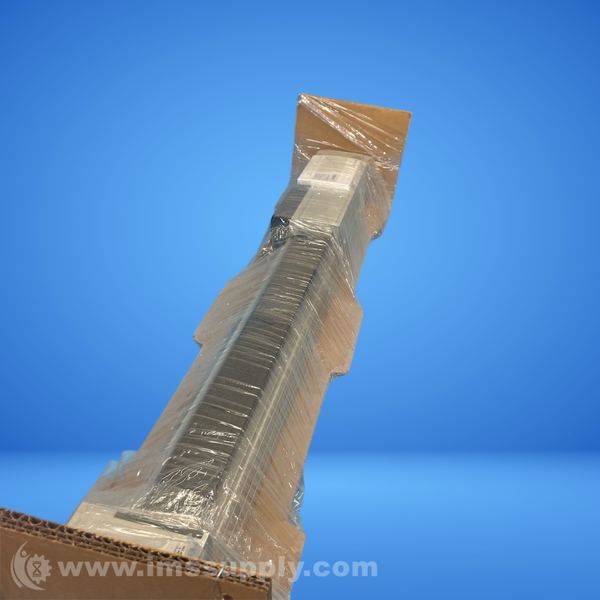

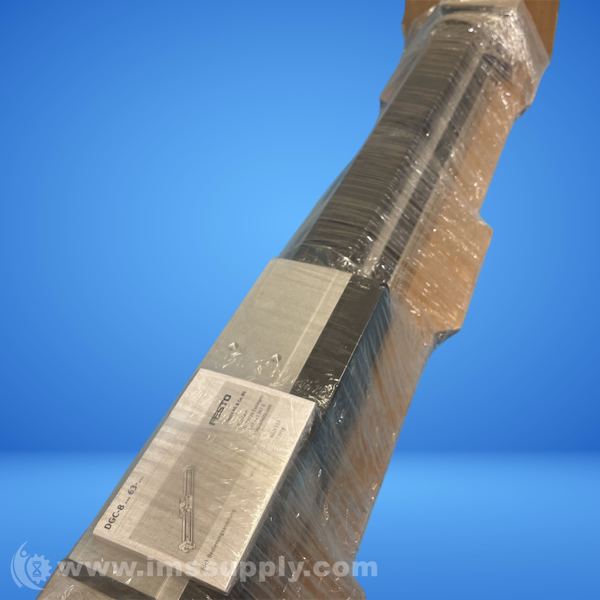

Festo DGC-40-450-G-PPV-A Linear Drive
Pneumatic linear drive with plain bearing guide, 40mm piston diameter, 450mm stroke, double-acting, pneumatic cushioning adjustable at both ends
Specifications
- Series: DGC
- Piston diameter: 40 mm
- Stroke: 450 mm
- Guide: Plain bearing
- Cushioning: Pneumatic cushioning, adjustable at both ends
- Position sensing: For proximity sensor
- Mode of operation: Double-acting
- Material seals: NBR TPE-U(PU)
- Material cover: Wrought aluminium alloy
- Mounting position: optional
- Operating pressure: 2 bar ... 8 bar
- Ambient temperature: -10 degrees C ... 60 degrees C
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke: 483 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke: 483 N
- Cushioning length: 17.5 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 3 In Stock
Ships today if ordered in the next 12 minutes.
