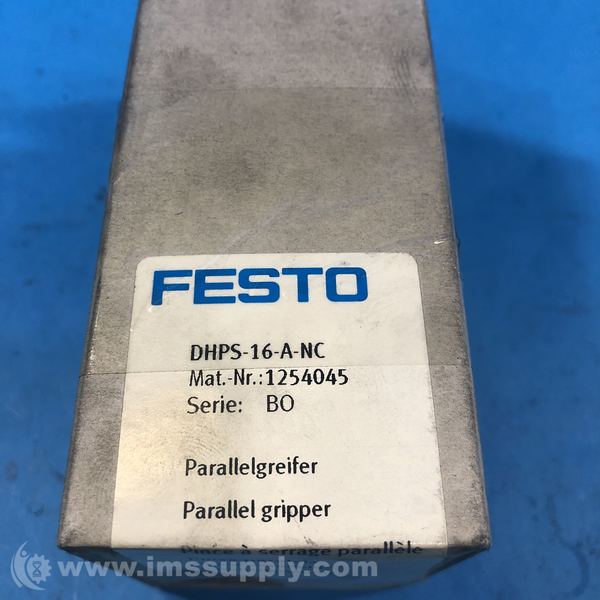

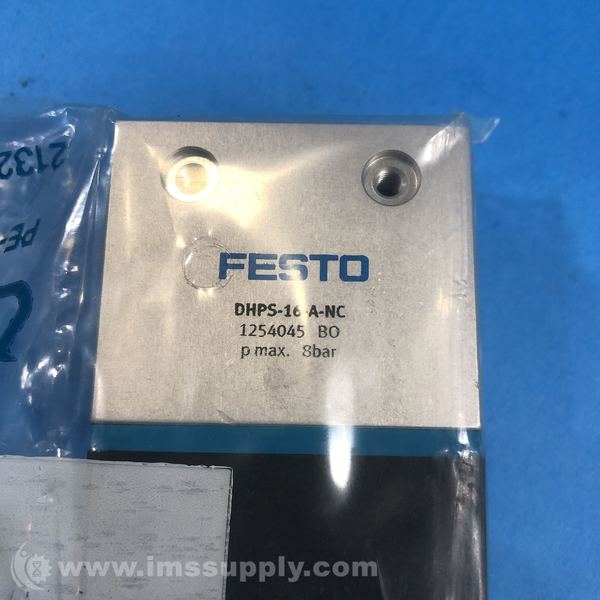

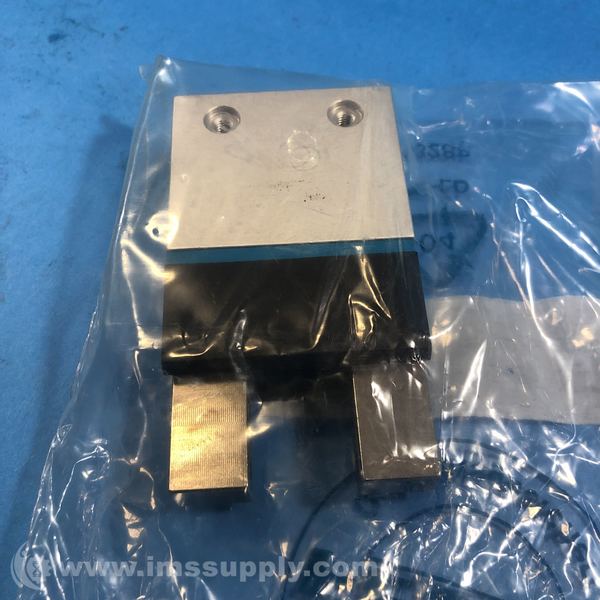

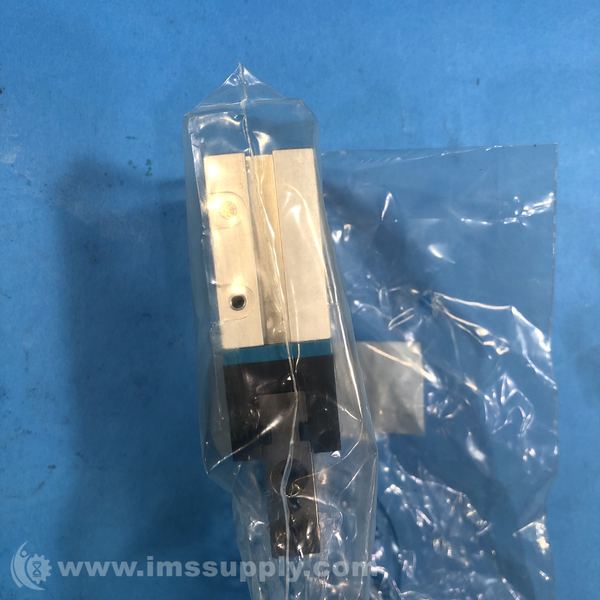

FESTO DHPS-16-A-NC PARALLEL GRIPPER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: DHPS-16-A-NC
IMS Product Code: 1940162
Packaging: Sold Individually
Description:
Festo DHPS-16-A-NC Parallel Gripper
Pneumatic parallel gripper with 16mm bore diameter, double-acting, 5mm stroke per jaw, suitable for internal and external gripping.
Specifications
- Bore Diameter: 16 mm
- Stroke per Gripper Jaws: 5MM
- Max. Replacement Accuracy: 0.2MM
- Max. Angular Gripper Jaw Backlash Ax, Ay: 0.5DEG
- Max. Gripper Jaw Backlash Sz: 0.02MM
- Rotationally Symmetrical: 0.2MM
- Repetition Accuracy, Gripper: 0.02MM
- Number of Gripper Jaws: 2
- Drive System: Pneumatic
- Mode of Operation: Double-acting
- Gripper Function: Parallel
- Design: Lever
- Motion Sequence Design: Force pilot operated
- Guide: Plain-bearing guide
- Position Detection: Via proximity switch
- Operating Pressure: 0.4MPA, 0.8MPA, 4BAR, 8BAR, 58PSI, 116PSI
- Max. Operating Frequency of Gripper: 3HZ
- Min. Opening Time at 0.6 mPa (6 bar, 87 psi): 48MS
- Min. Closing Time at 0.6 mPa (6 bar, 87 psi): 37MS
- Max. Mass per External Gripper Finger: 150G
- Operating Medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Lubrication Interval for Guide Components: 10YUE
- Mass Moment of Inertia: 0.468KGC
- Max. Force on Gripper Jaw Fz Static: 150N
- Max. Torque at Gripper Mx Static: 8NM
- Max. Torque at Gripper My Static: 8NM
- Max. Torque at Gripper Mz Static: 8NM
- Product Weight: 188G
- Type of Mounting: Via female thread and centring sleeve, Via through-hole and centring sleeve
- Material Cover Cap: PA
- Material Housing: Hard anodised wrought aluminium alloy
- Material Gripper Jaws: High-alloy stainless steel
- Ambient Temperature: 5GC to 60GC
- Pneumatic Connection: M3
New - Open Box:

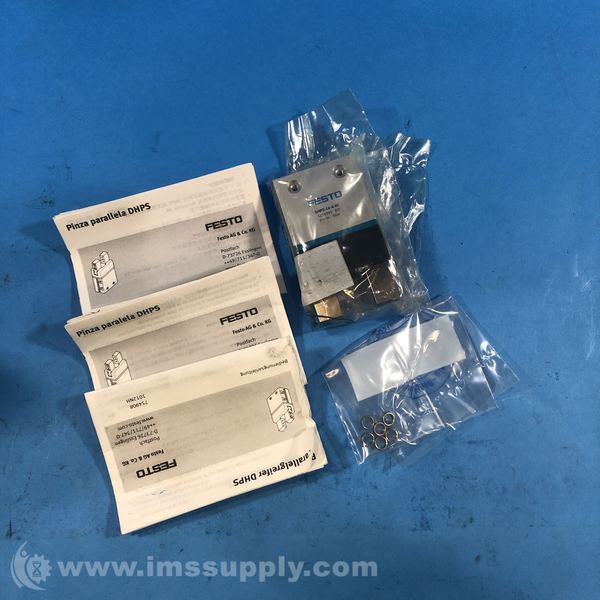

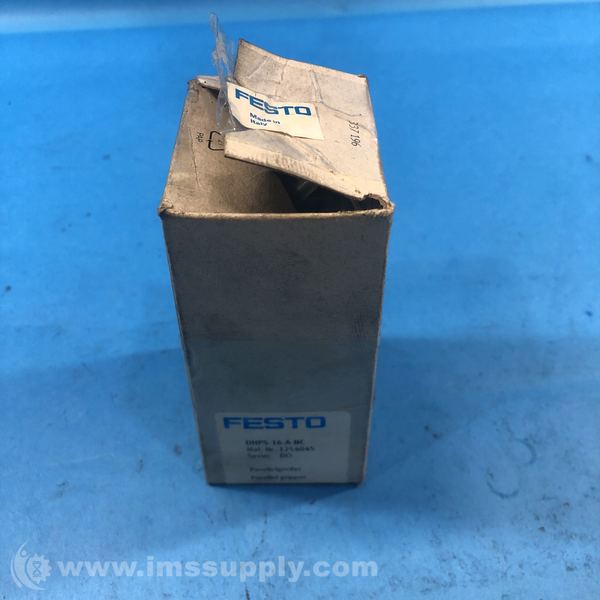

A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
