FESTO DHWS-16-A ANGLE GRIPPER
Quick Overview
Manufactured By: FESTO
Manufacturer Part Number: DHWS-16-A
IMS Product Code: 2137525
Packaging: Sold Individually
Description:

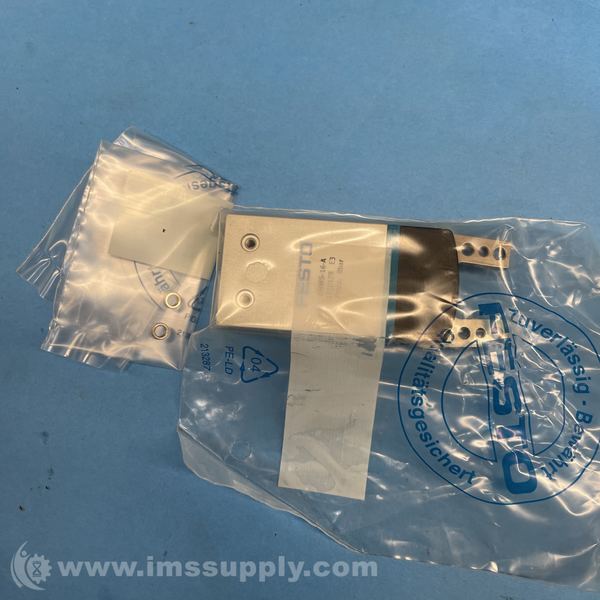

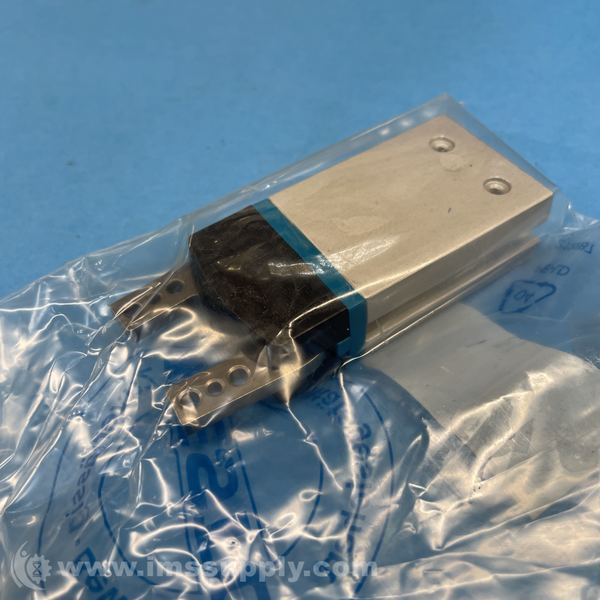

Festo DHWS-16-A Angle Gripper
Double-acting angle gripper with lever design, sized at 16mm, featuring proximity switch detection and improved gripper jaw guide.
Specifications
- Size: 16
- Max. replacement accuracy: 0.2MM
- Max. opening angle: 40DEG
- Rotationally symmetrical: 0.2MM
- Repetition accuracy, gripper: 0.04MM
- Number of gripper jaws: 2
- Mode of operation: Double-acting
- Gripper function: Angle gripper
- Design: Lever
- Position detection: Via proximity switch
- Max. operating frequency of gripper: 4HZ
- Min. opening time at 0.6 mPa (6 bar, 87 psi): 44MS
- Min. closing time at 0.6 mPa (6 bar, 87 psi): 52MS
- Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4]
- Lubricated operation possible: yes
- Corrosion resistance class CRC: 1 - Low
- VDMA24364-B2-L lABS (PWIS) conformity: yes
- Total gripping torque at 0.6 mPa (6 bar, 87 psi), opening: 129NCM
- Total gripper torque, closing, 0.6 mPa (6 bar, 87 psi): 114NCM
- Mass moment of inertia: 0.14KGC
- Max. force on gripper jaw Fz static: 50N
- Max. torque at gripper Mx static: 1.6NM
- Max. torque at gripper My static: 1.6NM
- Max. torque at gripper Mz static: 1.6NM
- Product weight: 110G
- Type of mounting: Either: Via female thread and centring sleeve or Via through-hole and centring sleeve
- Material cover cap: PA
- Material housing: Wrought aluminium alloy, Hard anodised
- Material gripper jaws: High-alloy steel
- Operating pressure: 2BAR to 8BAR
- Ambient temperature: 5GC to 60GC
- Pneumatic connection: M3
- RoHS-compliant: yes

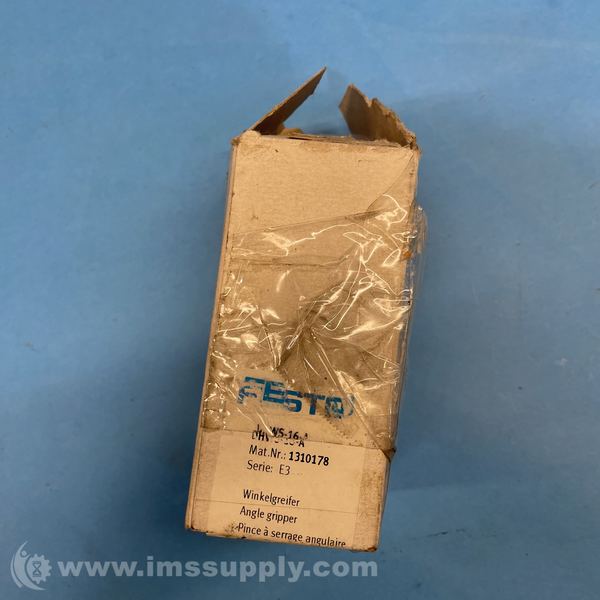

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
